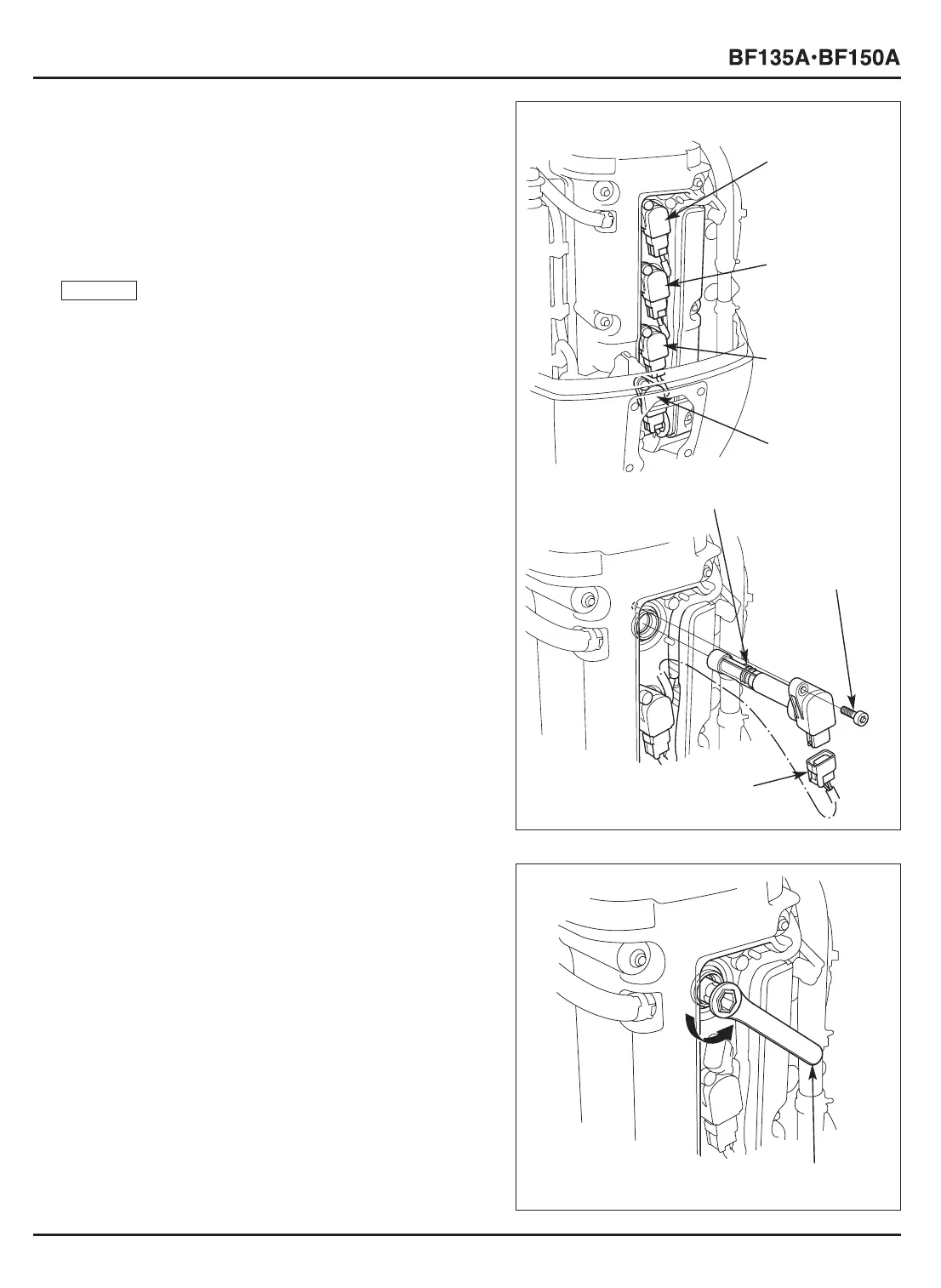

5) Remove the 6 x 25 mm socket bolts and remove each
ignition coil from the corresponding spark plug.
Pull out each ignition coil halfway.
6) Disconnect the ignition coil 3P connector from each
ignition coil.
Remove each ignition coils.
• Do not pull out the ignition coils excessively.
• Do not drop the ignition coils and do not strike on the
ignition coils, either, during removal/installation of the
coils.
• Do not reuse the ignition coils when they are dropped.
7) Clean any dirt from around the spark plug bases.
NOTICE
8) Remove the spark plugs using a spark plug wrench.
[6]
6 x 25 mm
SOCKET
BOLT (2)
[7] IGNITION COIL
3P CONNECTOR
[5] IGNITION COIL
[1]
No.1 IGNITION
COIL
[2]
No.2 IGNITION
COIL
[3]
No.3 IGNITION
COIL
[4]
No.4 IGNITION
COIL
[1] SPARK PLUG
WRENCH
