DR4300 Circular Chart Recorder
122 DR4300 Circular Chart Recorder Product Manual 4/00
Step Press Action/Result
5
DISP
and
MAN
AUTO
RESET
together
You will see:
SLF TST
Lower Display
PASS
Upper Display
Refer to Section 8 if step test fails.
6
Check to see that the recorder is generating a step pattern on the chart as
shown in Figure 4-5.
At the completion of the test (after one revolution of the chart), the recorder
will automatically return to normal operation.
7
FUNC
Lights INP 2 indicator (if recorder has 2 pens)
You will see:
INP
Lower Display
(value)
Upper Display
Repeat Steps 4 and 5 to test pen 2 operation.
8
DISP
Terminates the test at any time.

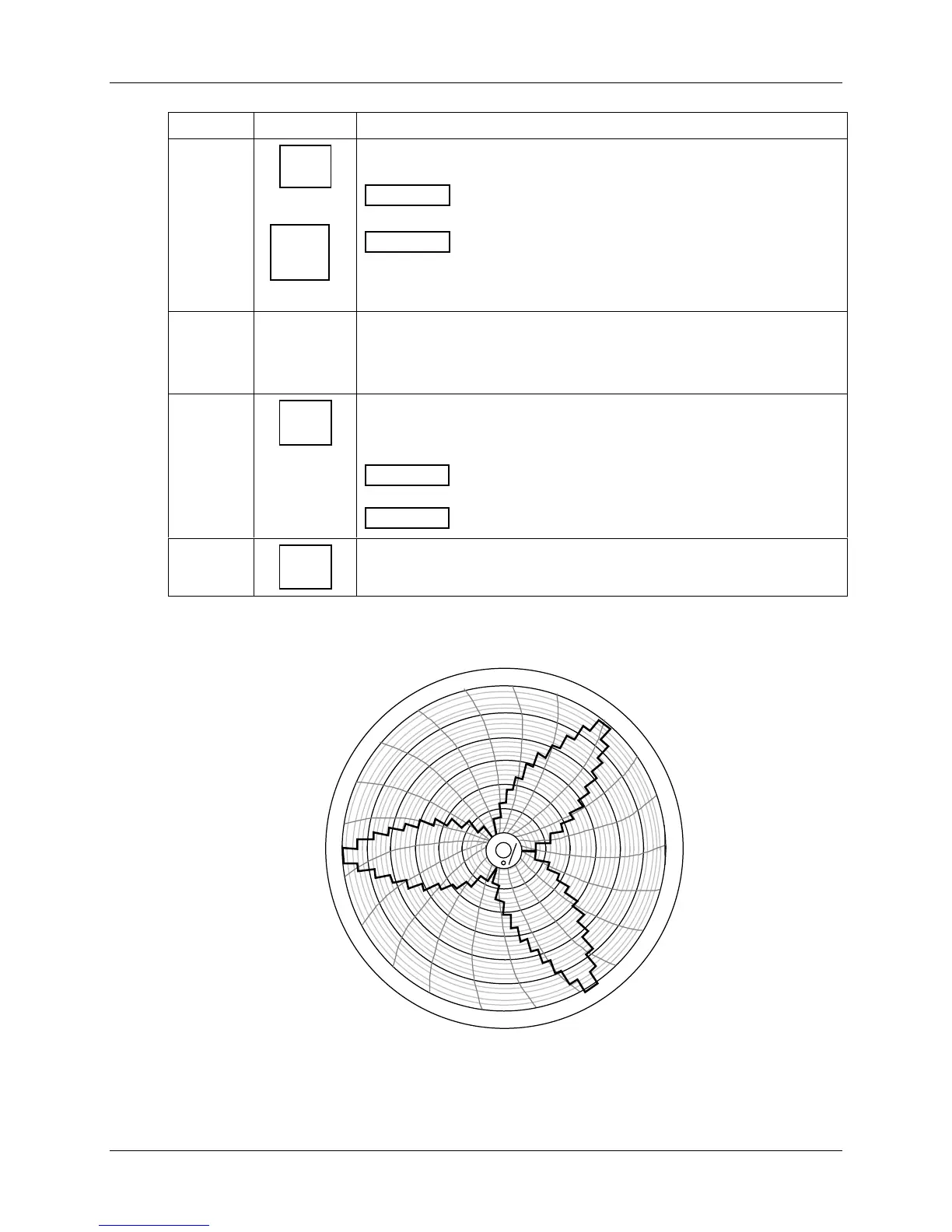

Chart step pattern
Figure 4-5 is a typical chart step pattern generated by the recorder in the test.
24141
Figure 4-5 Typical Step Test Chart Patterns
