DR4300 Circular Chart Recorder
216 DR4300 Circular Chart Recorder Product Manual 4/00
C.3 Drawing a Ramp/Soak Profile
Ramp/soak profile example
Before you perform the actual configuration, we recommend that you draw your Ramp/Soak profiles in the
space provided on the blank graphs and fill in the associated information on the worksheet. An example of a
Ramp-Soak Profile using the first twelve segments for Program 1 is shown in Figure C-1. Start setpoint in
this example is at 200 °F.
500
400
200
300
°
F
Time/Hours
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
SEG 2
SEG 3
SEG 4
SEG 5
SEG 6
SEG 7
SEG 8
SEG 9
SG 10
SG 11
SG 12
SEG 1
F
20765
Setpoint

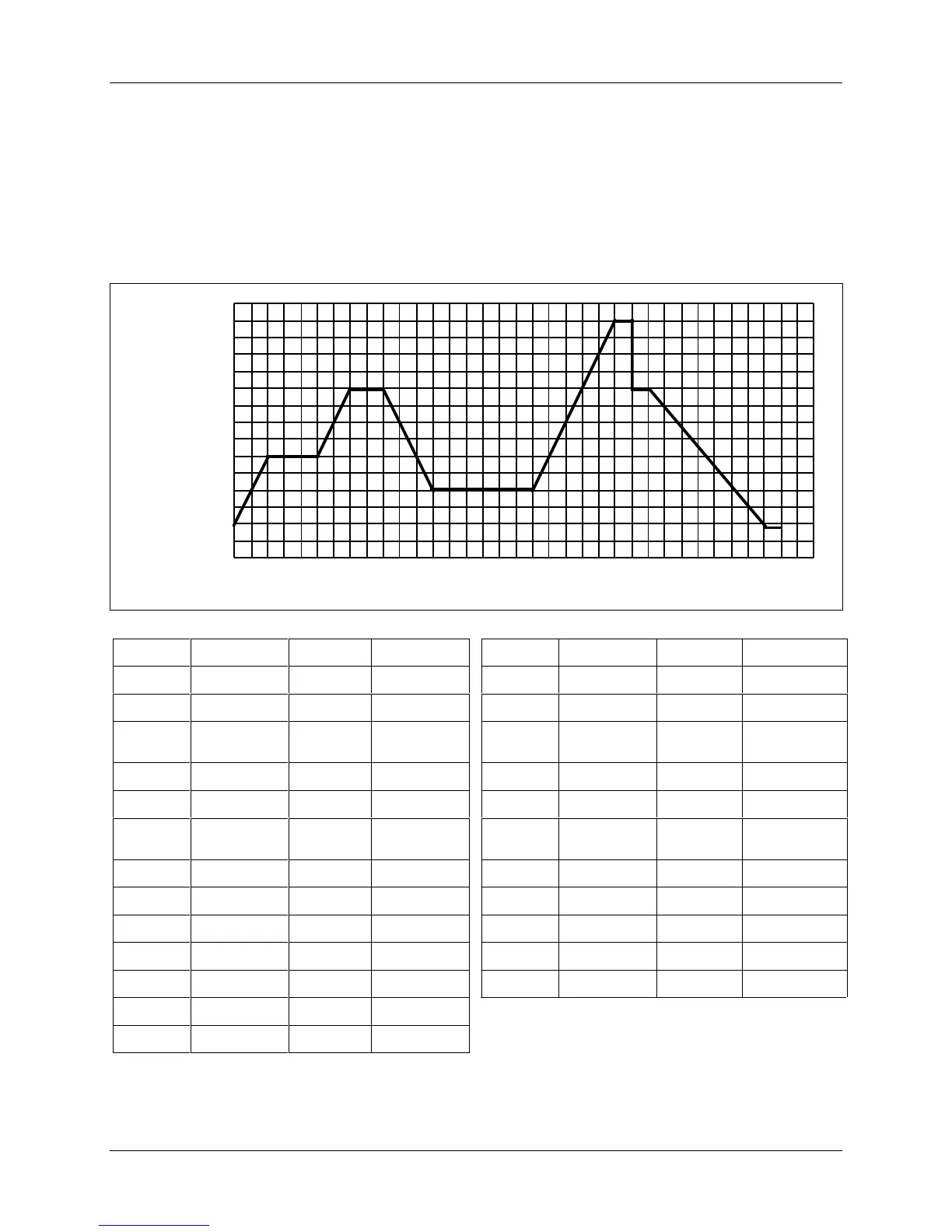

Figure C-1 Ramp/Soak Profile Example
Prompt Function Segment Value Prompt Function Segment Value
START1
Start Seg. 1
SG6 SP
Soak SP 6 250
END 1
End Seg. 12
SG6 TI
Soak Time 6 3 hr:0 min
RECYCL
Number of
Recycles
2
SG7 RP
Ramp 7 2 hr:30 min
SOKDEV
Deviation Value 0
SG8 SP
Soak SP 8 500
RP UNIT
Ramp Units TIME
SG8 TI
Soak Time 8 0 hr:30 min
END ST
Program
State at end
HOLD
SG9 RP
Ramp 9 0
SG1 RP
Ramp 1 1 hr
SG10SP
Soak SP 10 400
SG2 SP
Soak SP 2 300
SG10TI
Soak Time 10 0 hr:30 min
SG2 TI
Soak Time 2 1 hr:30 min
SG11RP
Ramp 11 3 hr:30min
SG3 RP
Ramp 3 1 hr
SG12SP
Soak SP 12 200
SG4 SP
Soak SP 4 400
SG12TI
Soak Time 12 0 hr:30 min
SG4 TI
Soak Time 4 1 hr
SG5 RP
Ramp 5 1 hr:30 min.
