Configuration, Startup, and Operation
of Recorder without Display
4/00 DR4300 Circular Chart Recorder Product Manual 69
3.3.4 Startup
Introduction
The recorder is almost ready for operation when you have:
• mounted and wired the recorder as described in Section 2
• set up the recorder as described in Subsection 3.2
• prepared the recorder as described in Subsection 3.3.2
The only remaining tasks are aligning the chart time and applying power.
Procedure
To set the chart time and apply power, follow the procedure in Table 3-5. (See also Figure 3-5.)
Table 3-5 Startup Procedure
Step Action
1
Open the door.
2
Pull up the pen lifter to raise the pen(s) from the chart plate.
3
Turn the chart until the desired time line on the chart is aligned with the time index on the
chart plate and pen 1 before closing the locking clip on the hub. Push down on the lifter to
return the pen(s) to the chart.
CAUTION: Do not try to rotate the hub.
4
Close the door and apply power.
5
The pen(s) will move into position and the recorder will start to track the input value.
Large chart
hub
24212
Time index
Pen lifter

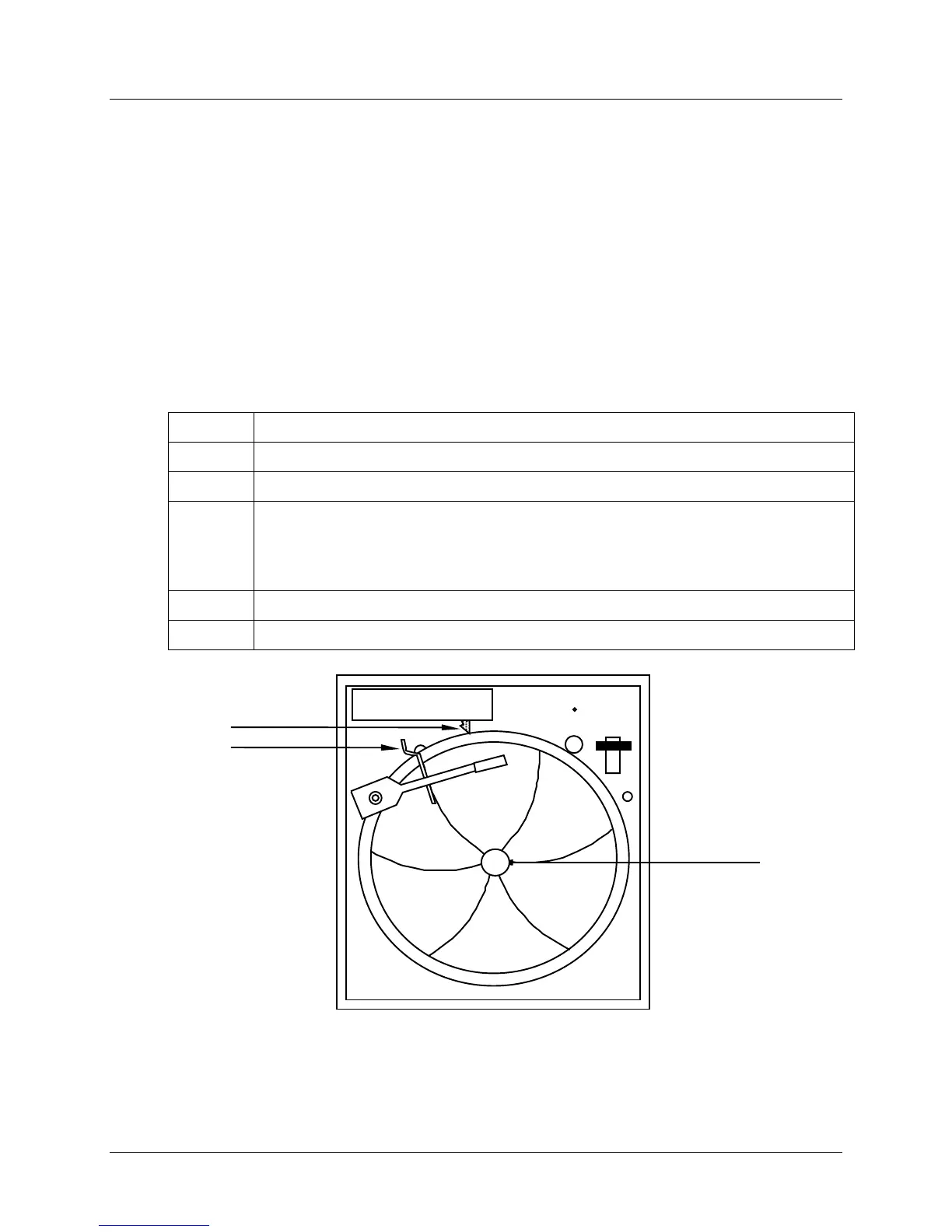

Figure 3-5 Setting Chart Time to Time Index
To Next Page
