DR4300 Circular Chart Recorder
DR4300 Circular Chart Recorder Product Manual 3/0030
Main PCA
Pen 2
Main PCA
Pen 1
It is the user’s responsibility to provide a switch and
non-time delay (North America), quick-acting, high
breaking capacity, Type F, (Europe) 1/2 A, 250 V
fuse(s) or circuit-breaker as part of the installation.
1
PROTECTIVE EARTH (Ground): Grounding of
this recorder shall be in accordance with National
and Local electrical codes.
2
3
N
100 Vac to 240 Vac
L2/NL1/H
1
2
7
TB2
TB1
7
TB2
TB1
2
NOISELESS (Clean) EARTH (Ground): To minimize
electrical noise and transients that may adversely
affect the recorder, connection of the recorder terminal
(located in the rear of the case) to a local earth
(ground), using a No. 11 (4 mm
2
) braided copper
conductor, is required.
3
LN
L
Ground
Screw
24820

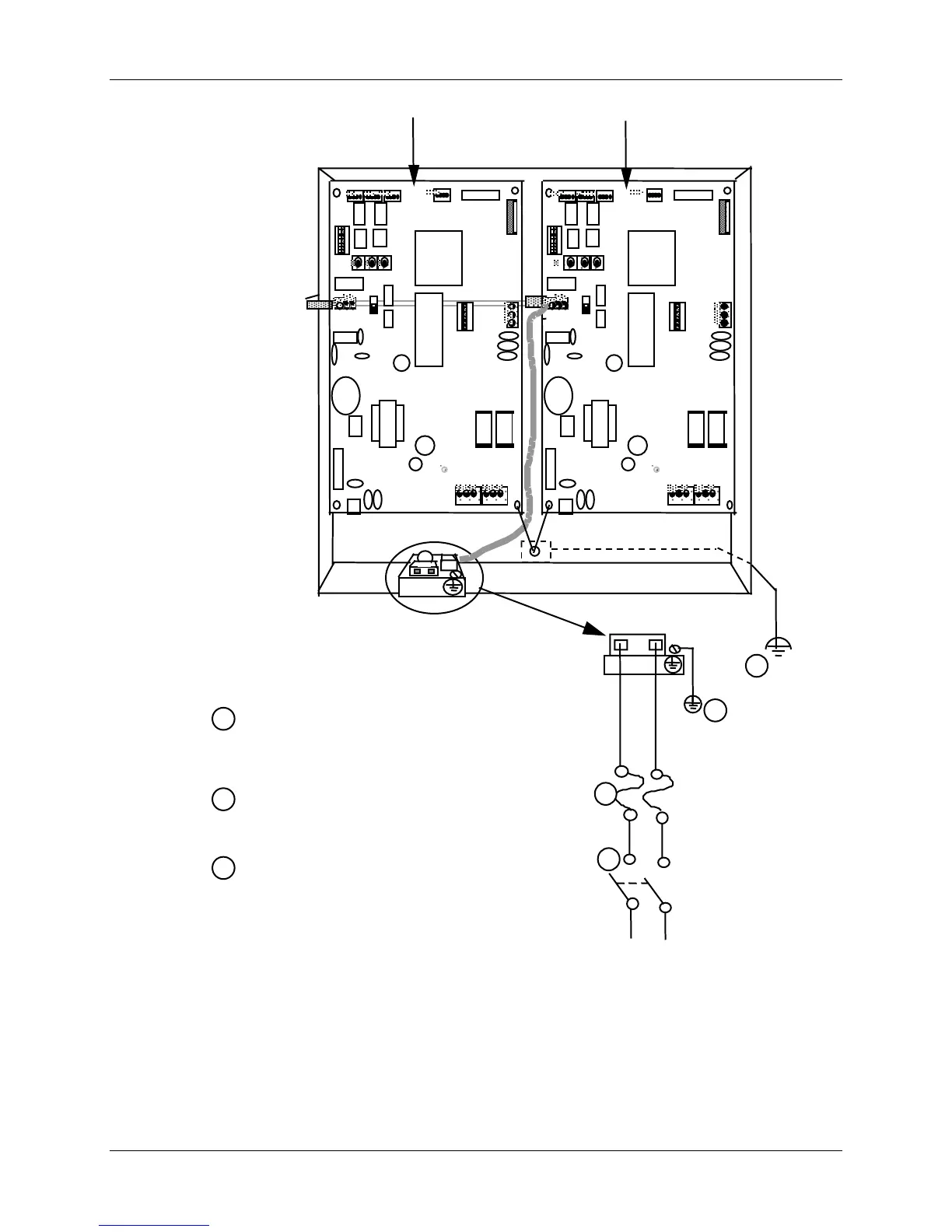

Figure 2-10 Power Wiring – Models With CE Mark
To Next Page
