Configuration, Startup, and Operation
of Recorder with Display
4/00 DR4300 Circular Chart Recorder Product Manual 75
4.3.2 Configuration Prompts
Diagram: prompt hierarchy
Figure 4-2 is an overview of the hierarchy of set up groups and their associated function prompts. Read the
diagram from left to right. (Some prompts may not be displayed, depending on the configuration and lock
status of the recorder.)

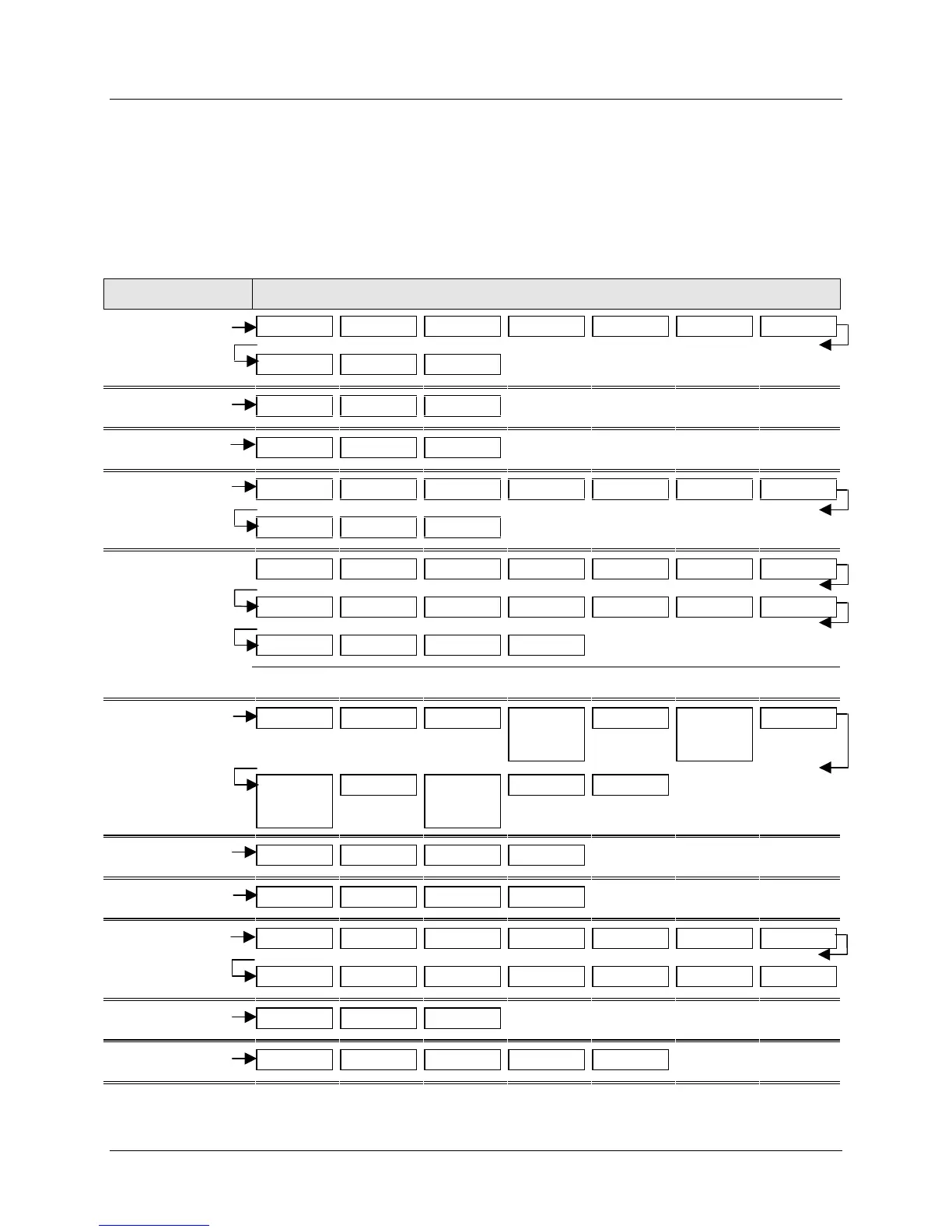

Figure 4-2 Prompt Hierarchy
Set Up Group Function Prompts
INPUT
DECMAL UNITS IN TYP XMITTR LD CAL INP HI INP LO
BIAS FILTER BRNOUT
PEN
PEN IN CHT HI CHT LO
CHART
CHTSPD HR/REV CHTTYP
TOTAL
(Value) RESET TOTAl INP EU RATE TOT EU TOT DP
SCALER RSTABL CUTOFF
CONTRL*
CONTRL NumSPs OUTALG CURRNG CTRALG PWR UP DEFDSP
SP HI SP LO ACTION OUT HI OUT LO DBAND HYST
FAILSF FSMODE PBorGN MINRPM
*For Limit Control Prompts, see Table 4-19.
TUNING
FUZZY TUNE AT ERR PB
or
GAIN
RATE T I MIN
or
I RPM
MANRST
PB2
or
GAIN 2
RATE2T I2 MIN
or
I2 RPM
CYC TI CYC2TI
SPRAMP
SP RAMP TI MIN FINL SP SPPROG
TIMER
TIMER PERIOD START L DISP
ALARMS
A1S1TY A1S2TY A1S1VA A1S2VA A1S1HL A1S2HL A1 HYS
A2S1TY A2S2TY A2S1VA A2S2VA A2S1HL A2S2HL A2 HYS
AUXOUT
AUXOUT 4mA VA 20mA V
COMM
COMM ADDRES BAUD XmtDLY DBLBYT
To Next Page
