Appendix C - Setpoint Ramp/Soak
Programming and Operation
4/00 DR4300 Circular Chart Recorder Product Manual 223
C.5 Run/Monitor the Program
Introduction
Prior to running the program, make sure all the SPPROG prompts under the SPRAMP set up group
have been configured with the required data. (See Table C-1.)
“HOLD” appears periodically in the lower display indicating that the program is in the HOLD state.
ATTENTION
SP Programm parameters cannot be changed during RUN state (must be in HOLD state).
Run/Monitor functions
Table C-2 lists all the functions required to run and monitor the program.

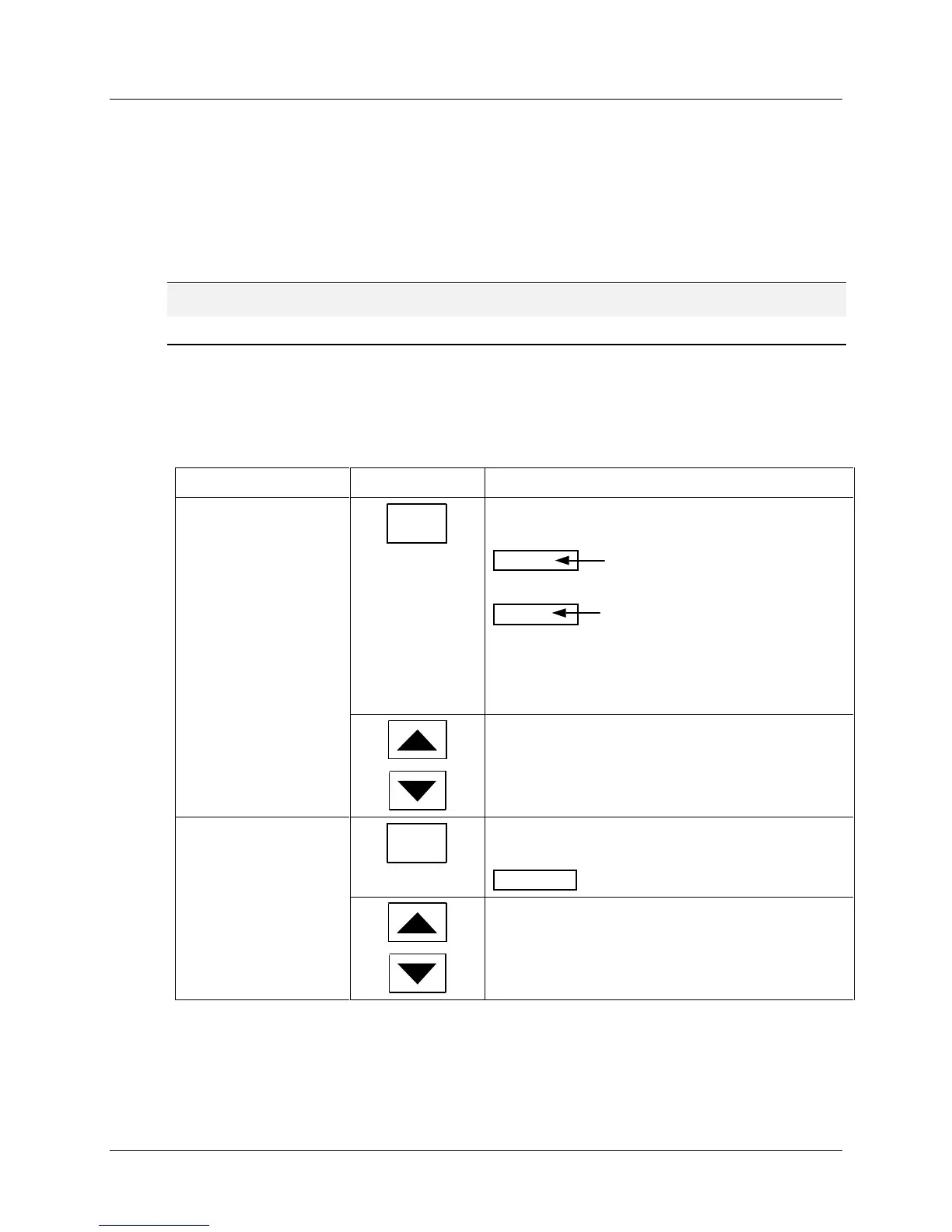

Table C-2 Run/Monitor Functions
Function Press Result
Set the Local Setpoint
DISPLAY
You will see
Upper Display
input value
Lower Display
SP and local setpoint value. (If control
set up group NumSPs = TWO, make sure the recorder is
set to use setpoint 1 by checking that operating
parameter UseSP1 is displayed.
If UseSP2 is displayed, use ▲ or ▼ to switch to
UseSP1.)
To set the Local Setpoint value to where you want the
program to start out.
Selecting the Program
to be Run
DISPLAY
until
To select the program where n is the program number 1
through 4.
