Honeywell DR4311 User Manual

Parts List
4/00 DR4300 Circular Chart Recorder Product Manual 193
Chart plate

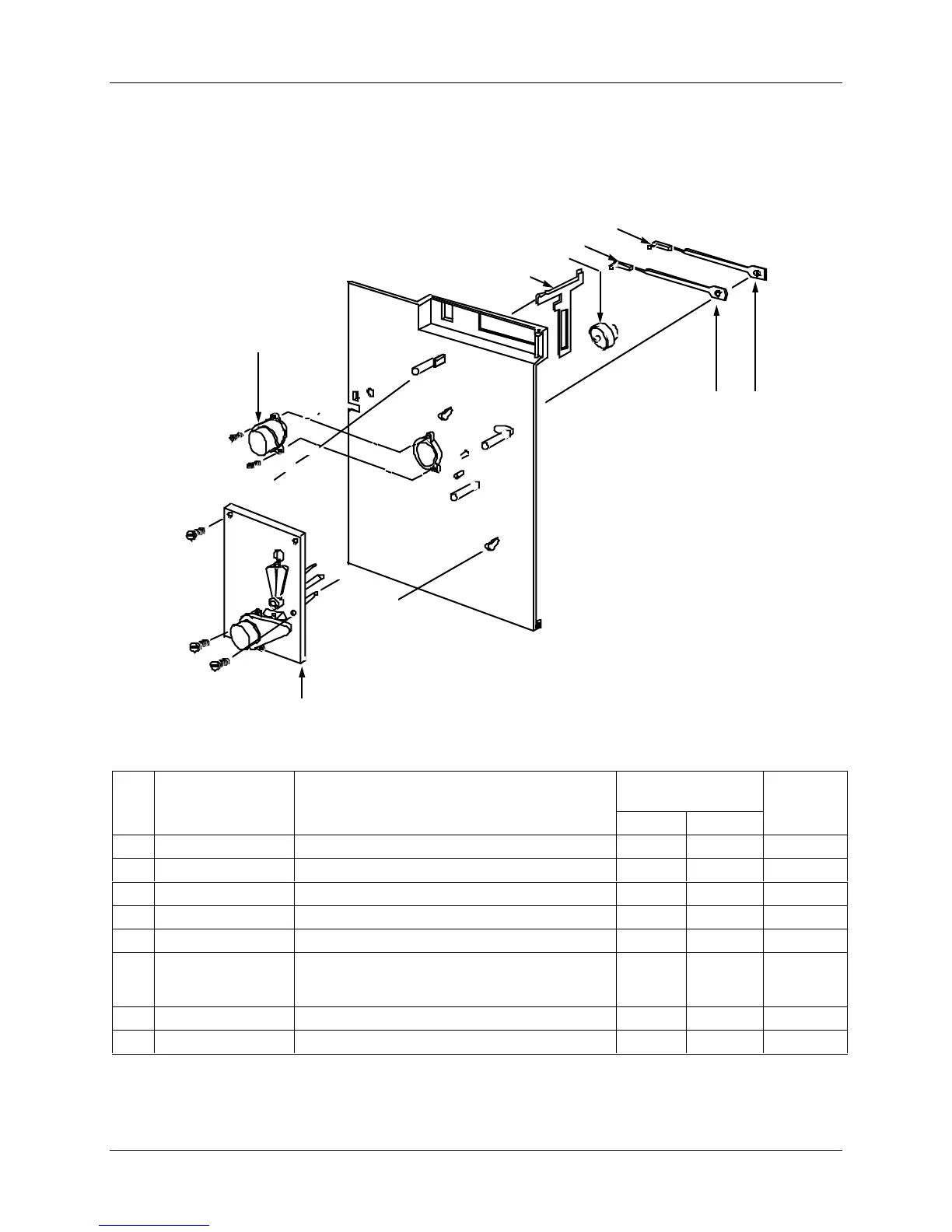

Figure 9-2 is an exploded view of the chart plate assembly. Table 9-2 is a list of the associated part
numbers.
1
2
3
4
5
6
7
8
24215
Figure 9-2 Chart Plate Assembly
Table 9-2 Chart Plate Assembly Parts
Key Part Number Description
Recommended
Spare Parts Per
Quantity
per Unit
10 100
1
(K)30756409-002 No. 1 Pen Arm 1 5 1
2
(K)30756409-002 No. 2 Pen Arm (2-pen model only) 1 5 1
3
30735489-007 No. 1 Purple Pen Cartridge (six pack) 1 3 1
4
30735489-002 No. 2 Red Pen Cartridge (six pack) 1 3 1
5
30756113-501 Chart Motor 1 3 1
6
30755833-501
30755833-502
Servo Plate Assembly
1-pen model
2-pen model
1
7
(K)30756150-501 Chart Hub Kit 1
8
(K)30756409-002 Pen Lifter Retainer 1
(K) denotes that the part number is for the parts kit in which the described part is included. The described part cannot
be ordered separately.
