DR4300 Circular Chart Recorder
DR4300 Circular Chart Recorder Product Manual 3/0016
2.3 Mounting Methods
2.3.1 Introduction
Overview
This section provides instructions for mounting the recorder using one of the following methods:
• Flush in a panel (Subsection 2.3.2)
• Flush in a panel for recorders with NEMA4 or Heavy Duty door (Subsection 2.3.3)
• On a 2-inch pipe (Subsection 2.3.4)
[A pipe mounting kit is available (see Section 9 Parts List).]
• On the surface of a wall or panel (see Subsection 2.3.5).
Choose the method that meets your mounting requirements. Use the associated dimension drawings for
reference.
How to remove knockouts for conduits
Before you mount the recorder, remove the appropriate plugs in the bottom and/or sides of the recorder case
for wire entry via 1/2" (12.7 mm) conduits. Refer to Figure 2-2 for plug locations. To see recommended
use of conduits for various types of wiring, refer to Figure 2-7 and Figure 2-8.

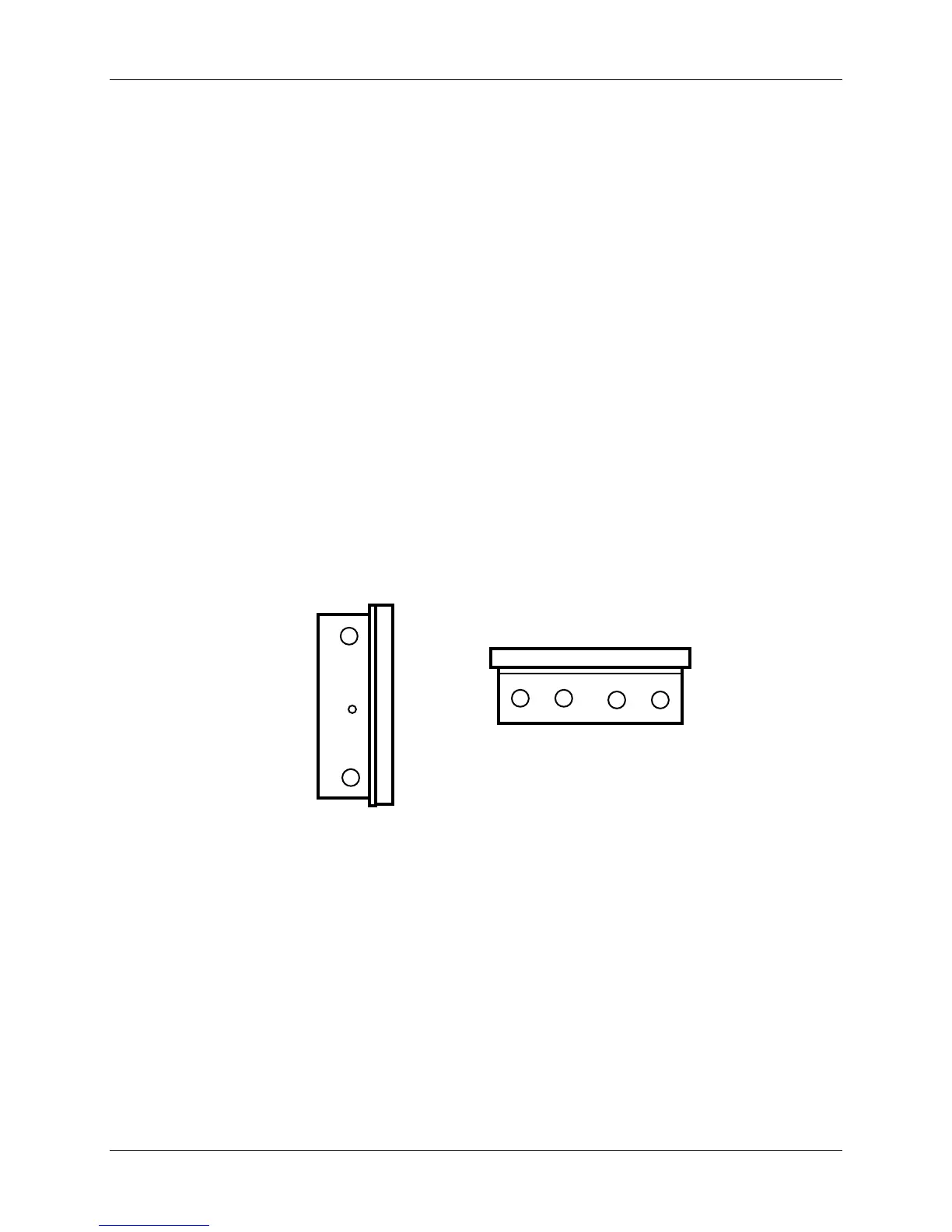

24211
Side View
Bottom View
Figure 2-2 Plug Locations
