DR4300 Circular Chart Recorder
192 DR4300 Circular Chart Recorder Product Manual 4/00
9.2 Exploded Views
Door assembly

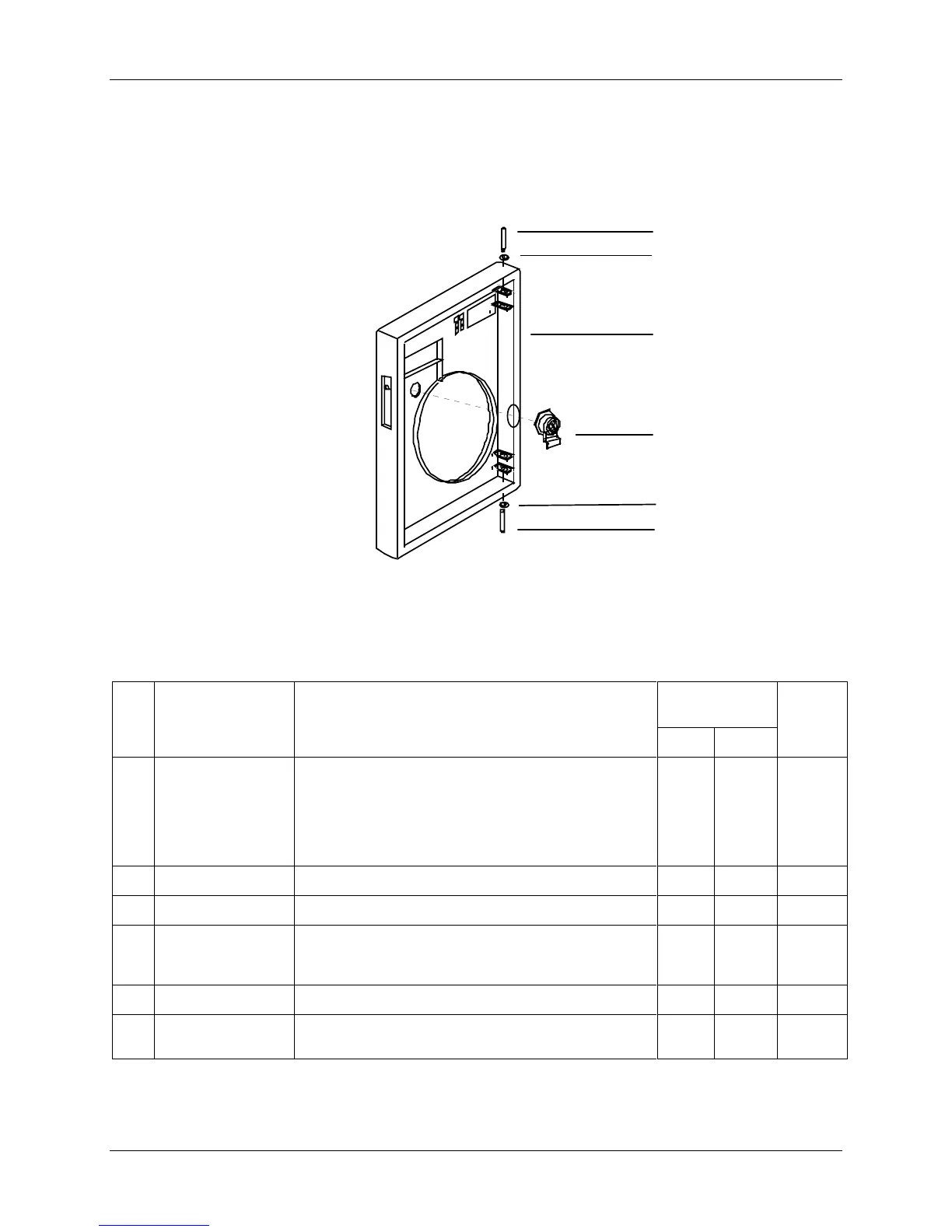

Figure 9-1 is an exploded view of the door assembly. Table 9-1 is a list of the associated part numbers.
1-1
1-2
1
1-3
1-1
1-2
24187
Figure 9-1 Door Assembly
Table 9-1 Door Assembly Parts
Key Part Number Description
Recommended
Spare Parts Per
Quantity
per Unit
10 100
1
51309609-501
51309609-502
51309609-506
51404778-501
Door Assembly (includes components for all door
variations)
Gray Door
Blue Door
Black Door
NEMA4/Heavy Duty Door
1
1-1
(K)30756409-002 Hinge Pin* 2
1-2
(K)30756409-002 Retaining Ring* 2
1-3
51309609-503
51404673-501
30757307-503
Latch/Lock Assembly Kit*
NEMA4/Heavy Duty Door Latch/Lock Assembly Kit*
Key Only for Lock Assembly*
13 1
51198139-501 Graphic Overlay for Door* (not shown) 1
51309609-504 External Keypad Assembly Replacement Kit* (not
shown)
1
*Parts included with applicable door assembly.
(K) denotes that the part number is for the parts kit in which the described part is included. The described
part cannot be ordered separately.
