Serial essernet
®
interface (SEI1)
FB 798819 / 05.18 69
Router Interface (USI1)

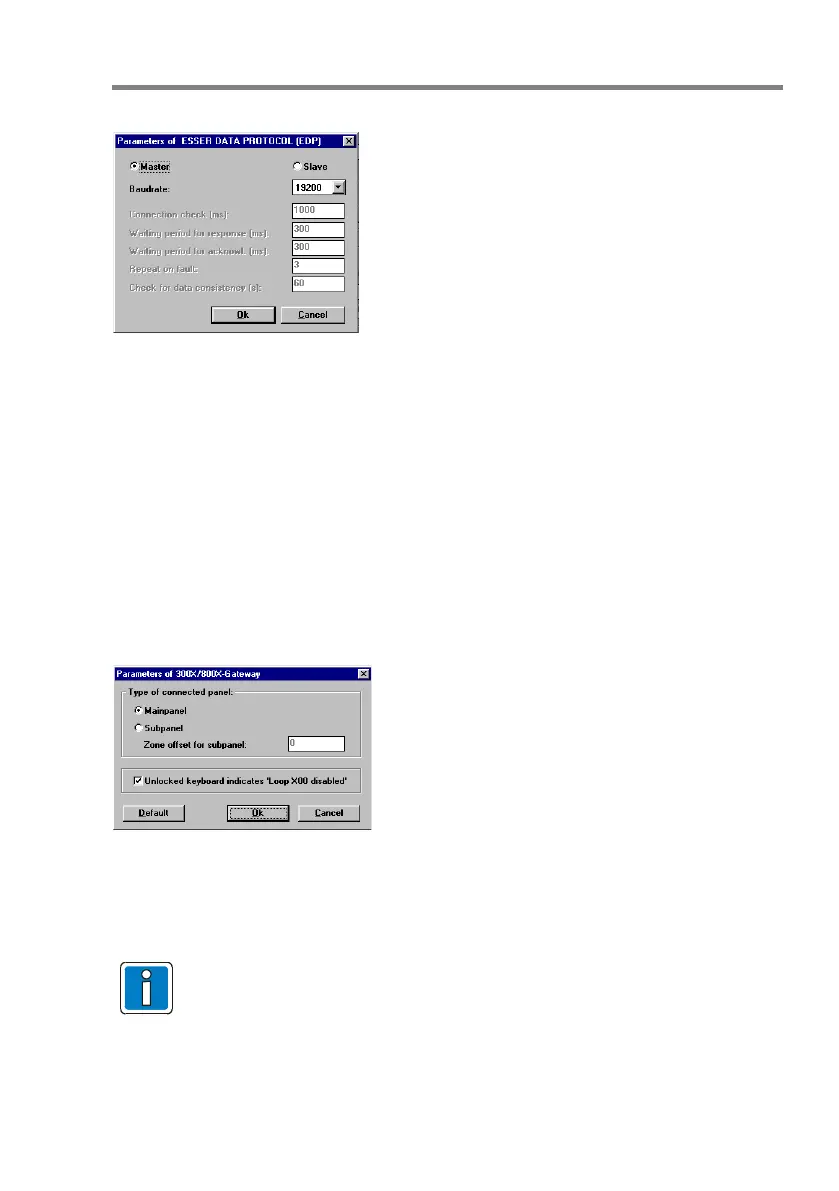

Fig. 24: Router Interface (USI1)
Master / Slave
Determines the response of the interface according to the ESSER-data protocol (EDP)
Master: SEI1 in main network
Slave: SEI1 in sub network
Baudrate
The setting must be made in accordance with the parameters used at the opposite end of the
link. The remaining interface parameters of the EDP protocol are 8 data bits, 1 stop bit, no parity
(8, 1, N).
300x/800x-Gateway (USI3)
Fig. 25: 300x/800x-Gateway (USI3)
Setting of the connected panel (Main or Sub-panel) an the zone offset for the Sub-panel.
This menu will be displayed only if the SEI1-Type >300x/800x Gateway< is selected.
Changes in the settings only after contacting our technical sales (TSC).
