Safety Bus Manual — P/N LS10177-000HI-E:B 02/21/2019 32
SB-SCM Module System Components
3.5.4 Typical Connections

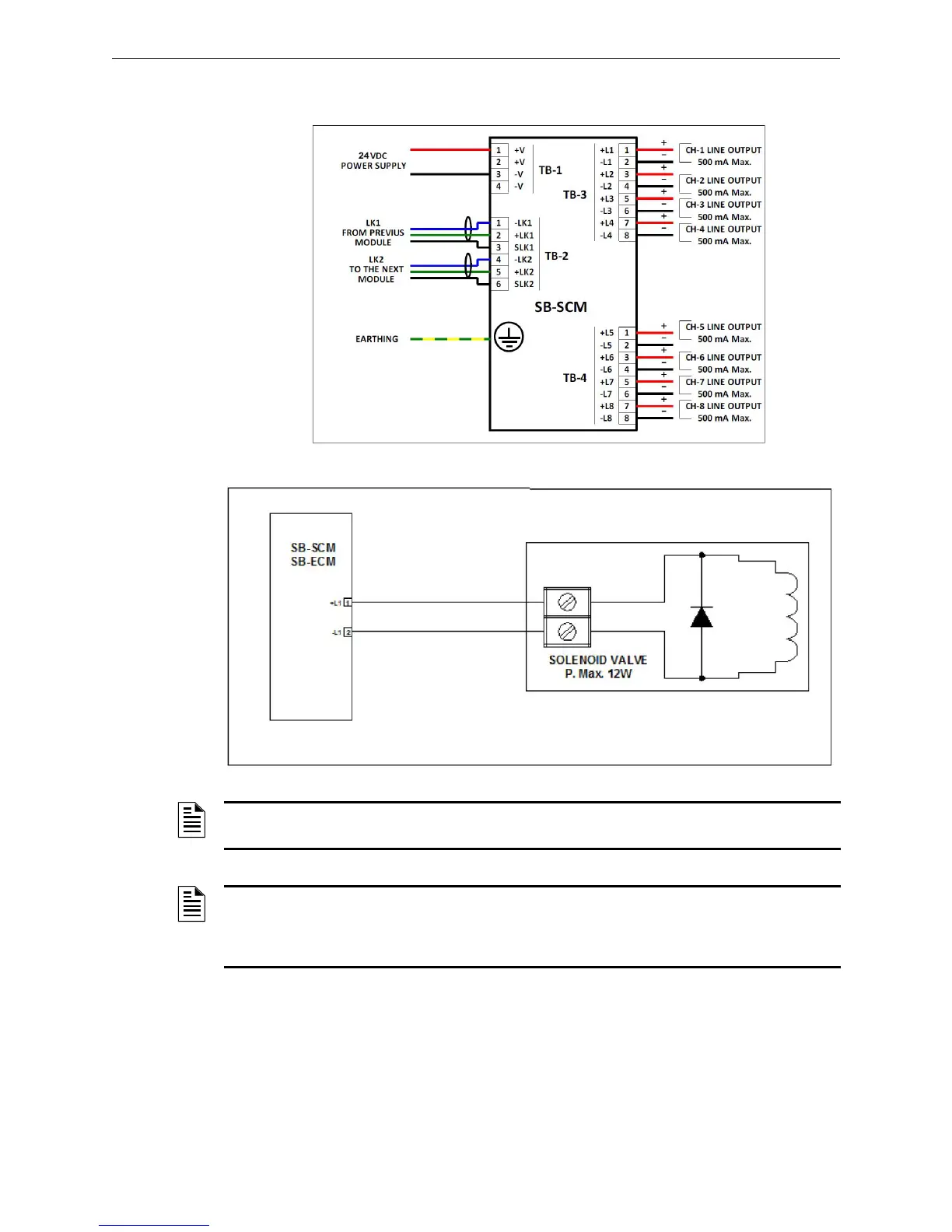

Figure 3.5 SB-SCM Module Connections
Figure 3.6 Typical Solenoid Valve Connections
NOTE: The SB-SCM module can control resistive and inductive loads with a max current of
500mA.
NOTE: The SB-SCM module active outputs, when configured in fail-safe mode, are deactivated
when there is:
- no communication with the control board for 1 minute
- no communication between the control board and the main H-S81-HS panel for 5 minutes
