41 Safety Bus Manual — P/N LS10177-000HI-E:B 02/21/2019
System Components SB-ECM Module
3.7.5 Module Operation Modes
The SB-ECM can operate in one of the following two modes, which can be configured with
Pro-HS81:
• I/O Mode
• Embedded Mode
I/O Mode
When configured in this mode, under normal operating conditions the device behaves like a stan-
dard I/O module and commands the outputs according to the commands received from the panel.
When it is not connected to the panel (“backup mode”) the module can carry out “internal logic”
functions, which can be selected among those available in “embedded mode”. If enabled, these

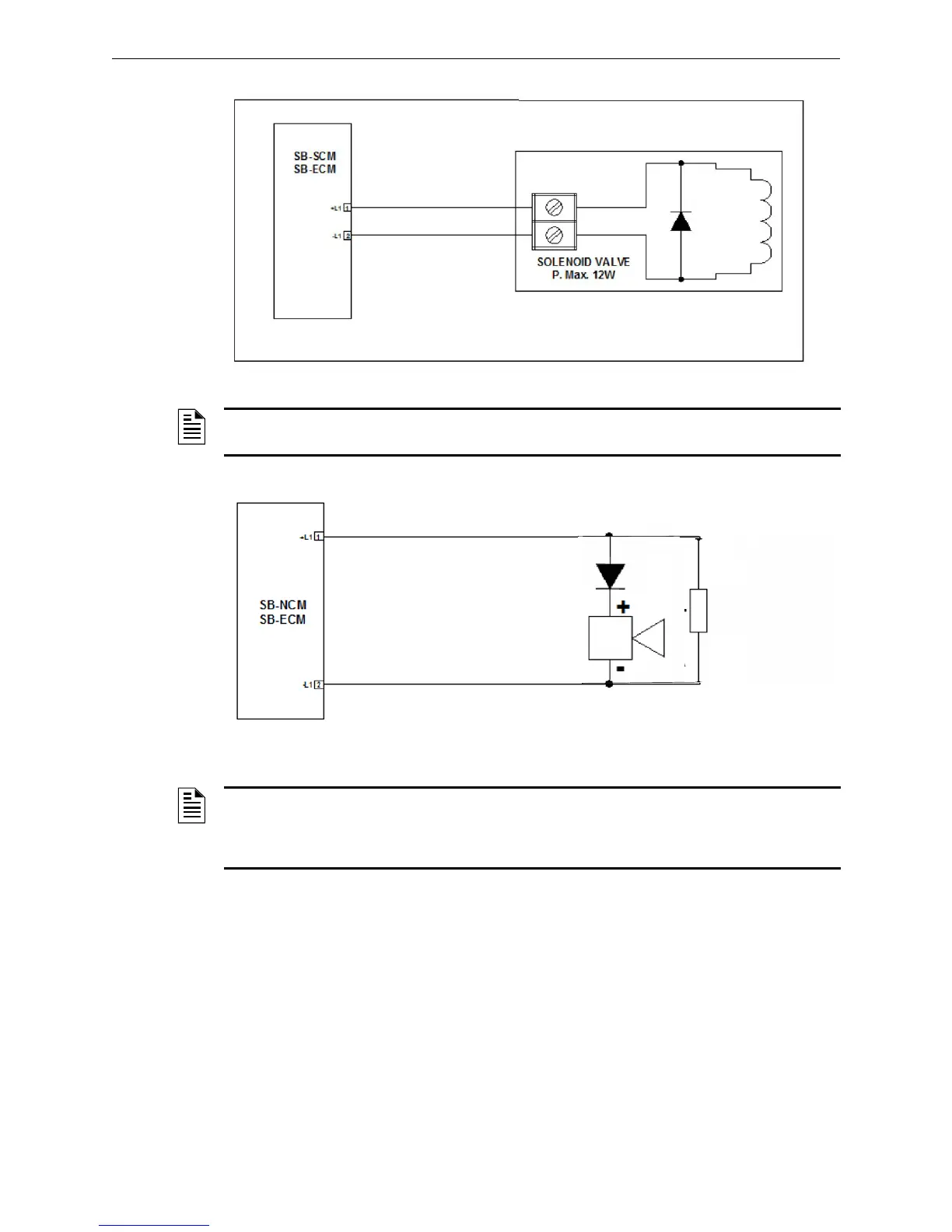

Figure 3.11 Typical solenoid valve connection (L9-L12)
NOTE: The SB-ECM module can command resistive and inductive loads with a max current of
500mA. If the board is used for filament lamps, the max load power must not exceed 4W.
Figure 3.12 Typical Visual/Acoustic Signal Connection (L13-L14)
NOTE: The SB-ECM module active outputs, when configured in fail-safe mode, are locally de-
activated when there is:
- no communication with the control board for 1 minute
- no communication between the control board and the panel for 5 minutes
