Section 7: Hardware, Installation, and Wiring Diagrams

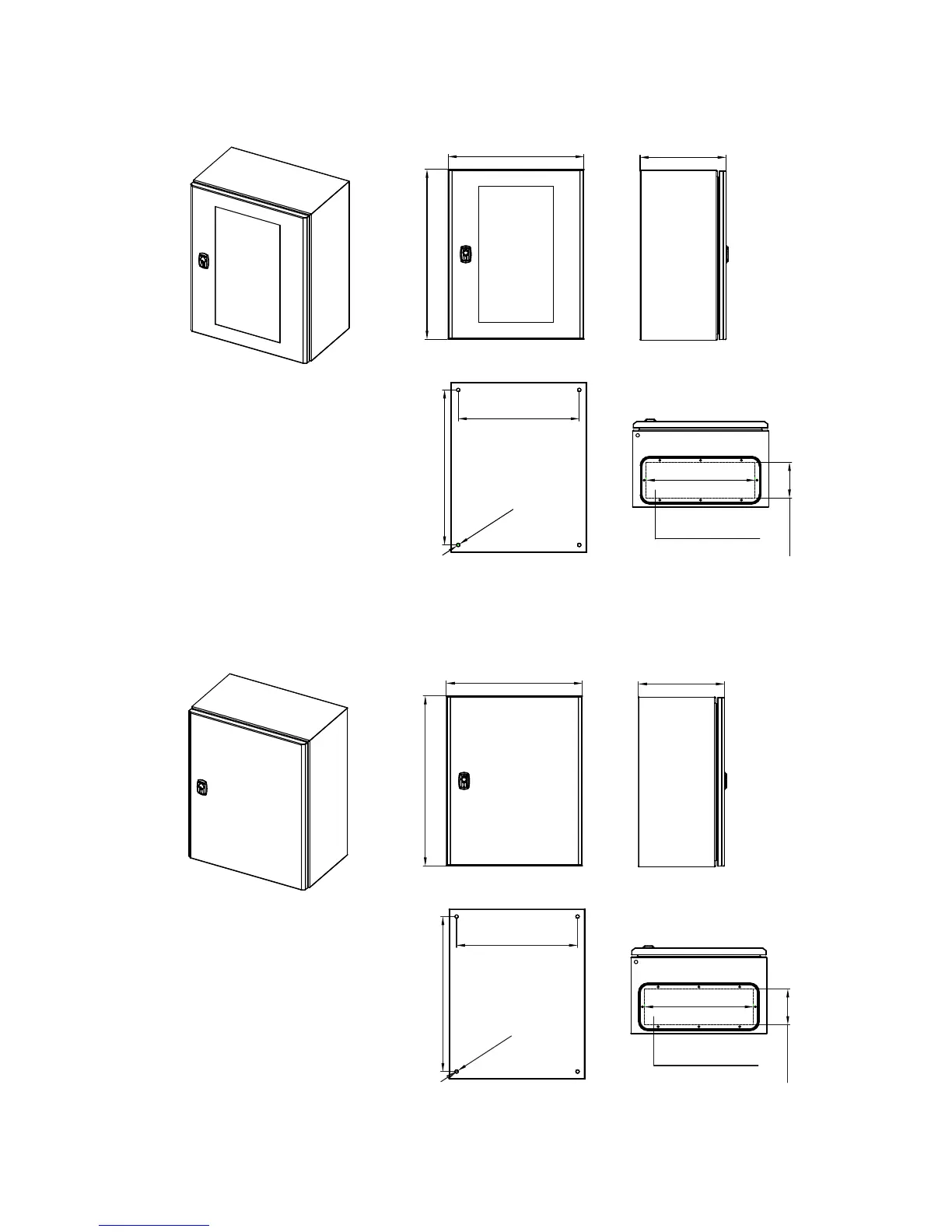

Figure 7.1 SB-ENCLT5-UL Enclosure Dimensions
Figure 7.2 SB-ENCLB5-UL Enclosure Dimensions
SB-ENCLT5-UL : CABINET FEATURES :
- COLOUR : RAL 7035 ( OPTIONAL RAL3000 )
- DEGREE PROTECTION : NEMA 12 (IP66)
- TRANSPARENT DOOR
- MILD STEEL CABINET, WALL MOUNTING TYPE
- DIMENSIONION : H=500 [19.68] L=400 [15.74] P=250 [9.84]
GENERAL NOTE:
· ALL DIMENSIONS IN : mm [ in ]
250 [9.84]
400 [15.74]
500 [ 19.68 ]
330 [ 12.90 ]
100 [ 3.93 ]
CABLE GLAND PLATE
458 [ 18.03 ]
358 [ 14.09 ]
Ø9 [ 0.35 ]
EXTERNAL FRONT VIEW
SIDE VIEW
ISO VIEW
BOTTOM VIEW - CABLE ENTRY
REAR VIEW
FIXING DETAILS
SB-ENCLB5-UL : CABINET FEATURES :
- COLOUR : RAL 7035 ( OPTIONAL RAL3000 )
- DEGREE PROTECTION : NEMA 4 (IP66)
- BLANK DOOR
- MILD STEEL CABINET, WALL MOUNTING TYPE
- DIMENSIONION : H=500 [19.68] L=400 [15.74] P=250 [9.84]
GENERAL NOTE:
· ALL DIMENSIONS IN : mm [ in ]
250 [9.84]
400 [15.74]
500 [ 19.68 ]
330 [ 12.90 ]
100 [ 3.93 ]
CABLE GLAND PLATE
458 [ 18.03 ]
358 [ 14.09 ]
Ø9 [ 0.35 ]
EXTERNAL FRONT VIEW
SIDE VIEW
ISO VIEW
BOTTOM VIEW - CABLE ENTRY
REAR VIEW
FIXING DETAILS
