51 Safety Bus Manual — P/N LS10177-000HI-E:B 02/21/2019
Section 4: Installation
The installation and wiring of the Safety Bus system must be done in compliance with the laws in
force in the country in which the system is installed and must be carried out by qualified personnel.
4.1 Installing the Modules
The modules must be installed in dedicated metal boxes.
.
Model number: Description:
SB-ENCLT5-UL
Safety Bus NEMA12 (IP66) 400x500x250mm enclosure for up to five (5) modules -
Transplant door
SB-ENCLB5-UL
Safety Bus NEMA4 (IP66) 400x500x250mm enclosure for up to five (5) modules -
Blank door
For UL installations: One of the above enclosures must be used
Internal View - Front (No Door) Internal View from Right Side

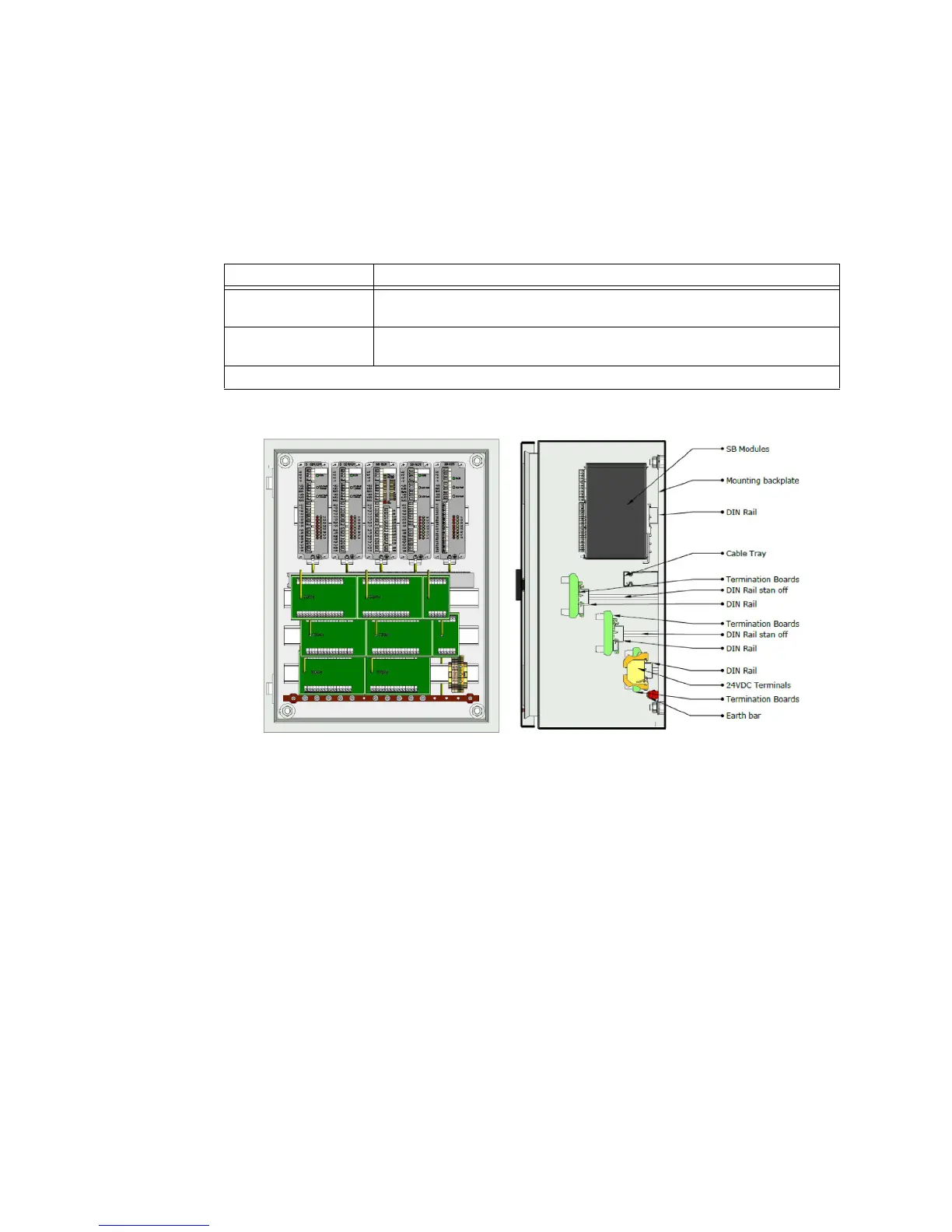

Figure 4.1 Module Installation
