SB-ECM Module System Components
3.7.4 Typical Connections

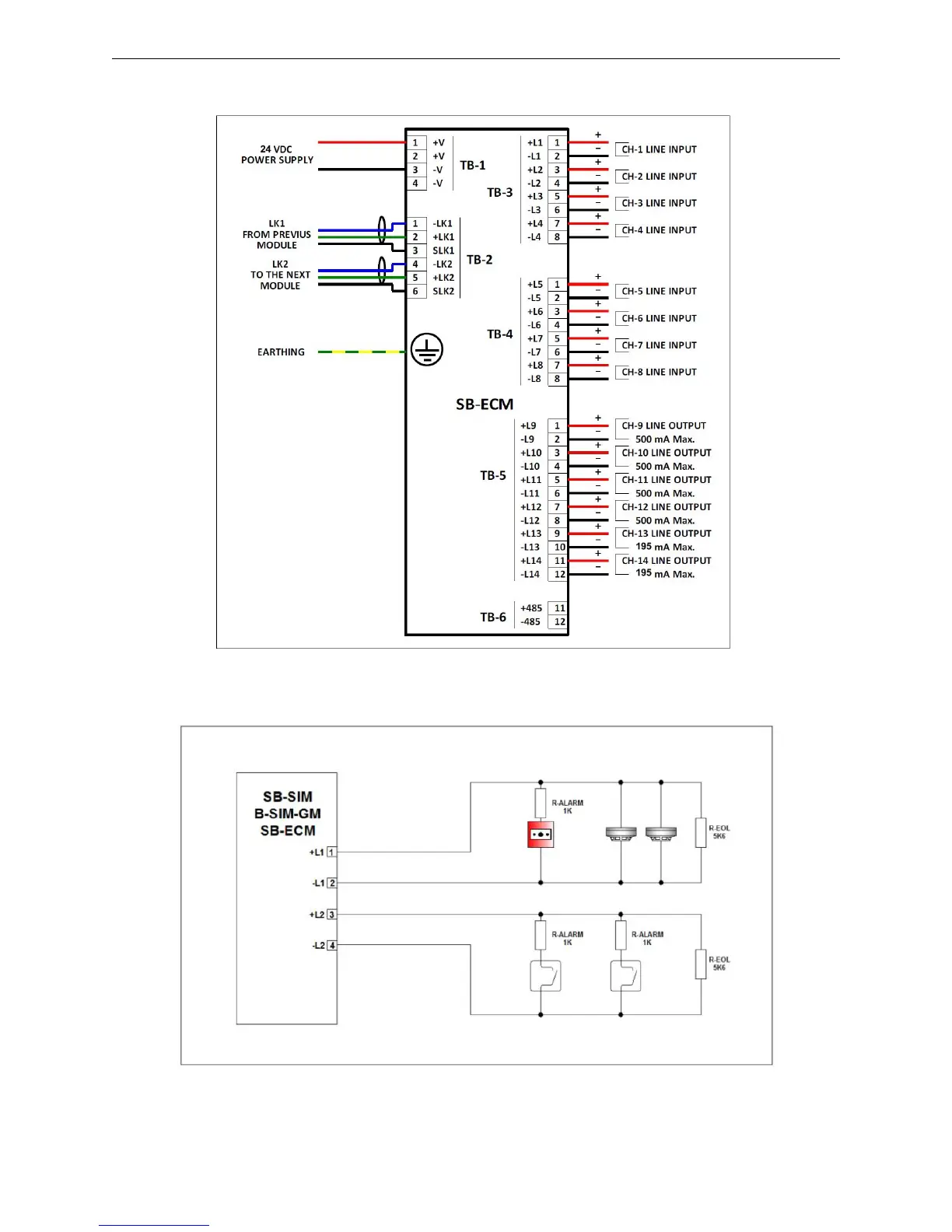

Figure 3.9 SB-ECM Module Connections
Figure 3.10 Typical NO/NC Contact Connection, Smoke Detectors (L1-L8) and Manual Call Points
