Safety Bus Manual — P/N LS10177-000HI-E:B 02/21/2019 60
Hardware, Installation, and Wiring Diagrams

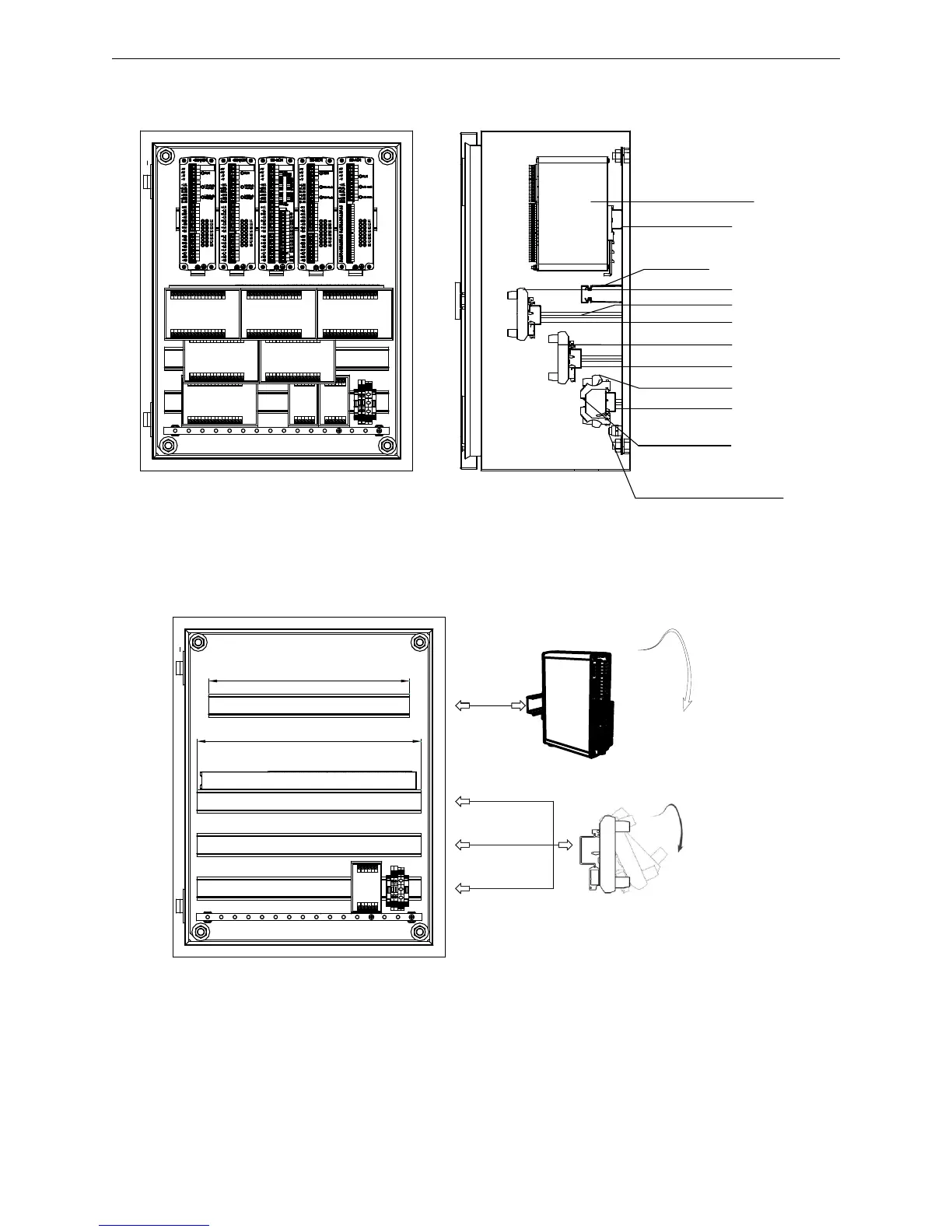

Figure 7.3 Dimensional Layout - Internal View
Figure 7.4 SB Module and Termination Board Snap-In
SB MODULES ( UP TO 5)
DIN RAIL TS 35x15
DIN RAIL TS 35x15
DIN RAIL TS 35x15
DIN RAIL TS 35x15
XPS - 24VDC TERMINALS
TERMINATION BOARDS
CABLE TRAY
TERMINATION BOARDS
TERMINATION BOARDS
DIN RAIL STAND OFF
BS INSTRUMENT EARTH BAR
T9001
T9001
T9001 T9001
T9001 T9003 T9003
T9004
INTERNAL FRONT VIEW INTERNAL SIDE VIEW
Snap in T-Boards
Snap in Modules
ATTACH THE S81-T900X-1 CARD TO THE DIN RAIL
PROVIDED USING THE SNAP FITS ON THE BOTTOM OF THE CARD.
ATTACH THE SB MODULES TO THE DIN RAIL
PROVIDED USING THE SNAP FITS ON THE BACK OF THE MODULES.
300 [ 11.08 ]
330 [ 13 ]
T9003
To Next Page
