Camera Components and Functions
Your camera consists of a fully-integrated enclosure with camera and lens. The wiring can
be completely concealed to reduce the risk of tampering.

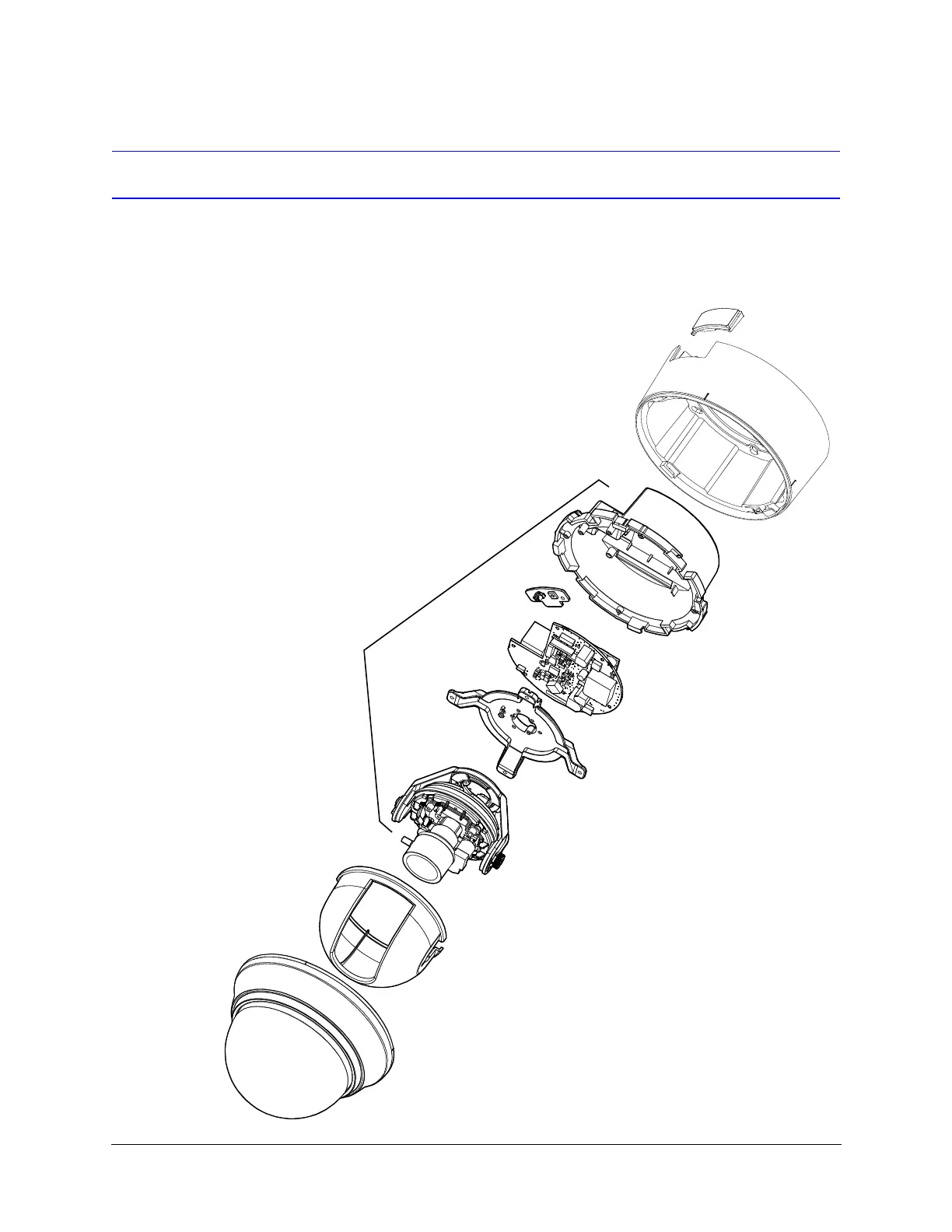

Figure 2-1 Performance Series Indoor Day/Night IP Camera Components
Interface board
Dome bubble
Turret (bubble insert)
Base
Gimbal assembly
Gimbal base
Skirt
Camera
Cover plate
