22
Installation and Setup
2. Connect to the power supply (see Figure 2-3 on page 22). Locate the two-pin green
connector that was shipped with your camera and make the necessary connections.
3. Plug the power supply into an appropriate power source. The LED on the RJ45 jack
illuminates when the camera receives power. If it does not illuminate, check the
terminal block connections and the power source.
Note To ensure satisfactory performance, it is recommended that you use a UPS
source when connecting the camera to a 24 V AC power source.

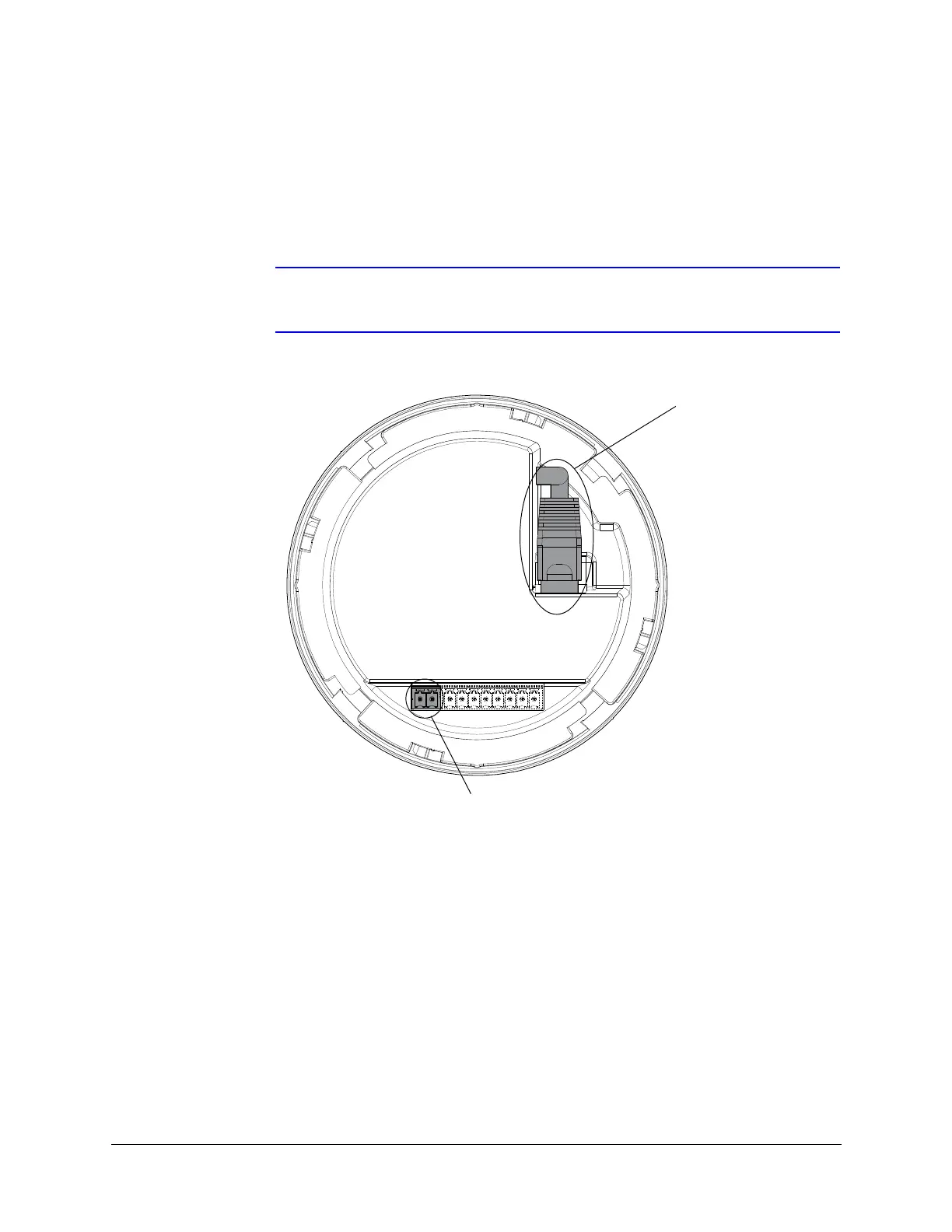

Figure 2-3 Camera and Cables
24 V AC power
RJ45 Ethernet network
connection (using 10Base T
or 100Base TX cable). See
Connecting to a Network
with an RJ-45 Ethernet
Connector on page 23 for
more information.
Also used for Power over
Ethernet (PoE 802.3af).
Back view of camera
