46 | HRG Performance Series DVR User Guide
www.honeywellvideo.com
Configuring the Live View Display
Click Menu  Settings  Display to enter the Display Settings Menu (see Figure 3-3).

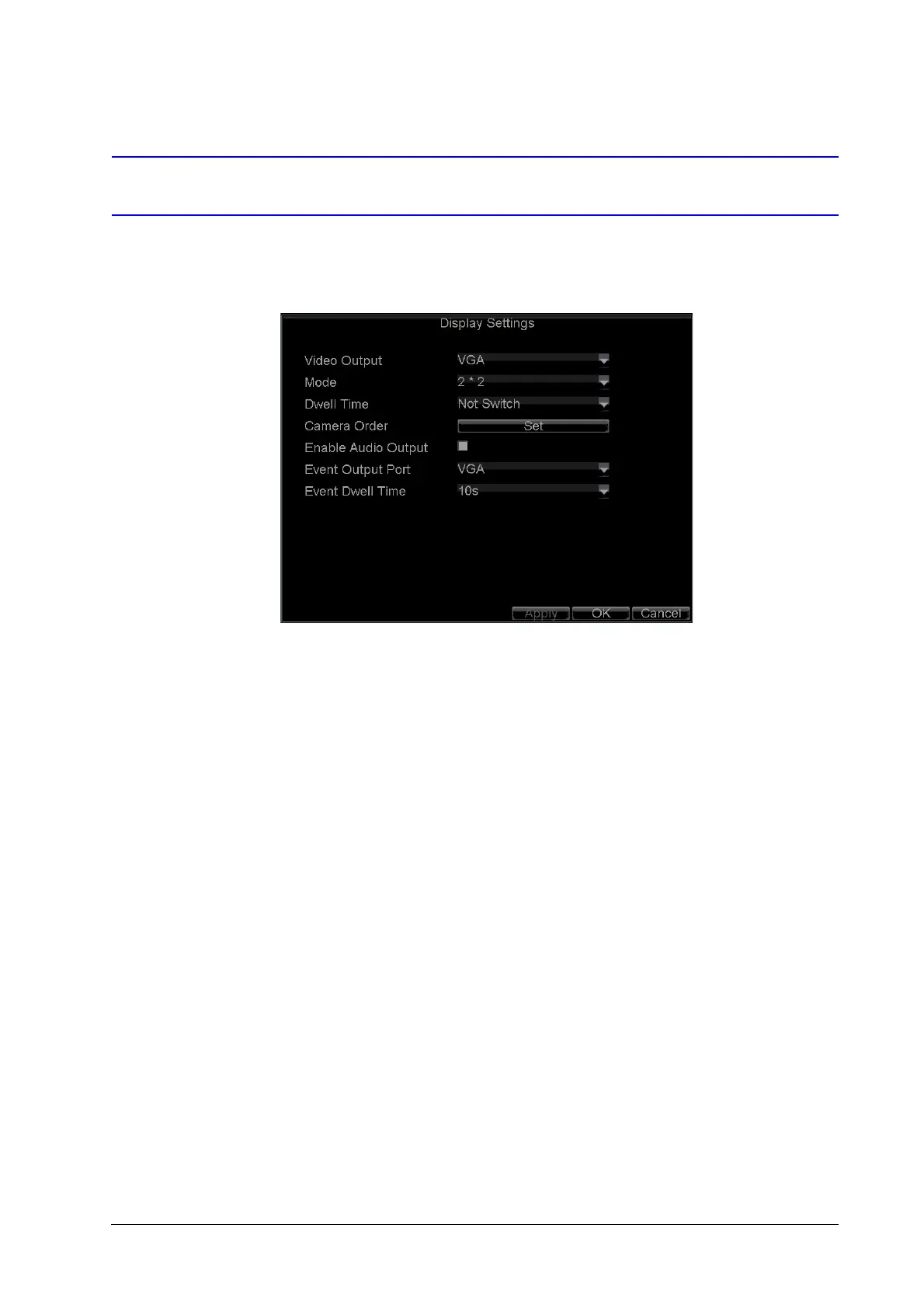

Figure 3-3 Display Settings Menu
Configure the following settings:
• Video Output: Set the video output modes, including VGA, Aux Output, and Main CVBS.
• Mode: Set the live view display mode to be 1×1, 2×2, 3×3, or 4×4.
• Dwell Time: Set the dwell time for camera switching when Start Auto-switch is selected
in Live View.
• Camera Order: Set the camera order for display in the selected mode (see Setting the
Camera Order).
• Enable Audio Output: Enable/disable audio output for the selected video output.
• Event Output Port: Set the port for event output to be VGA, Main CVBS, or Aux Output.
• Event Dwell Time: Set the dwell time for event video display.
