88 | HRG Performance Series DVR User Guide
www.honeywellvideo.com

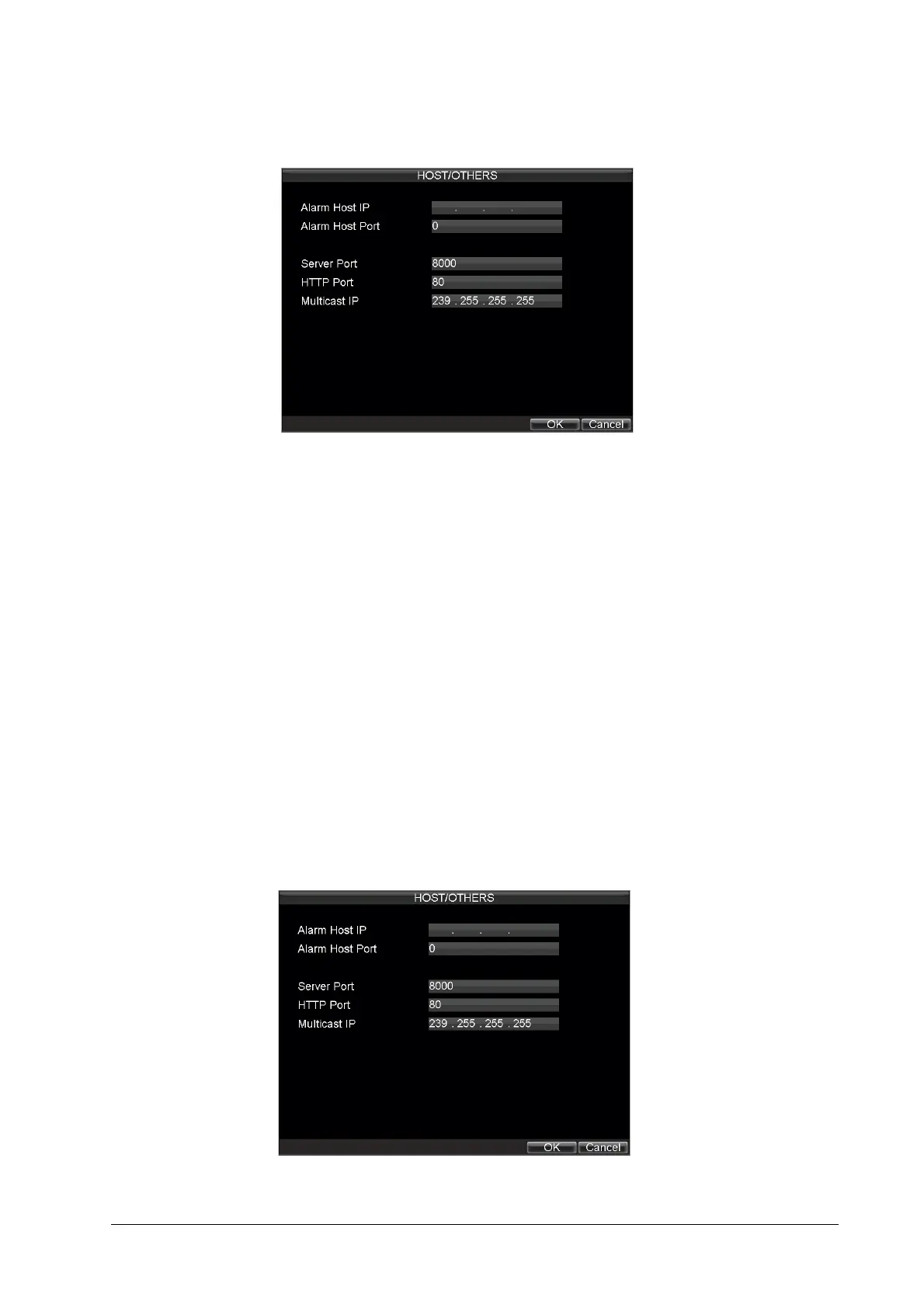

Figure 8-7 Host/Others Menu
4. Enter the Alarm Host IP and Alarm Host Port.
Alarm Host IP is the IP of the remote PC that has the Network Video Surveillance software
installed. The Alarm Host Port must be the same as software's alarm monitor port (default
port is 7200).
Configuring Multicast
Setting up multicasting solves limitation issues when streaming video through a network access
device. A multicast address spans the Class-D IP range of 224.0.0.0 to 239.255.255.255. It is
recommended to use the IP address range from 239.252.0.0 to 239.255.255.255.
To set up multicasting:
1. Click Menu
Settings Network to enter the Network Settings menu.
2. Select the Advanced tab.
3. Next to Host/Others, click Set to enter the Host/Others menu.
4. Set Multicast IP (see Figure 8-8).
When adding a device to the Network Video Surveillance software, the multicast address
must be the same with the DVR's multicast IP.
Figure 8-8 Host/Others Menu
