76 | HRG Performance Series DVR User Guide
www.honeywellvideo.com
2. Configure the following settings in the Manual Alarm menu:
• Trigger: Select an alarm from the list and click Trigger to trigger its output.
• Trigger All: Trigger all alarm outputs at once.
• Clear All: Stop all alarm outputs at once.
3. Click OK to save the settings.
Video Loss Detection
The DVR can be set up to detect video loss and trigger an action.
To set up video loss detection:
1. Click Menu
Settings Camera to enter the Camera Settings menu (see Figure 7-14).

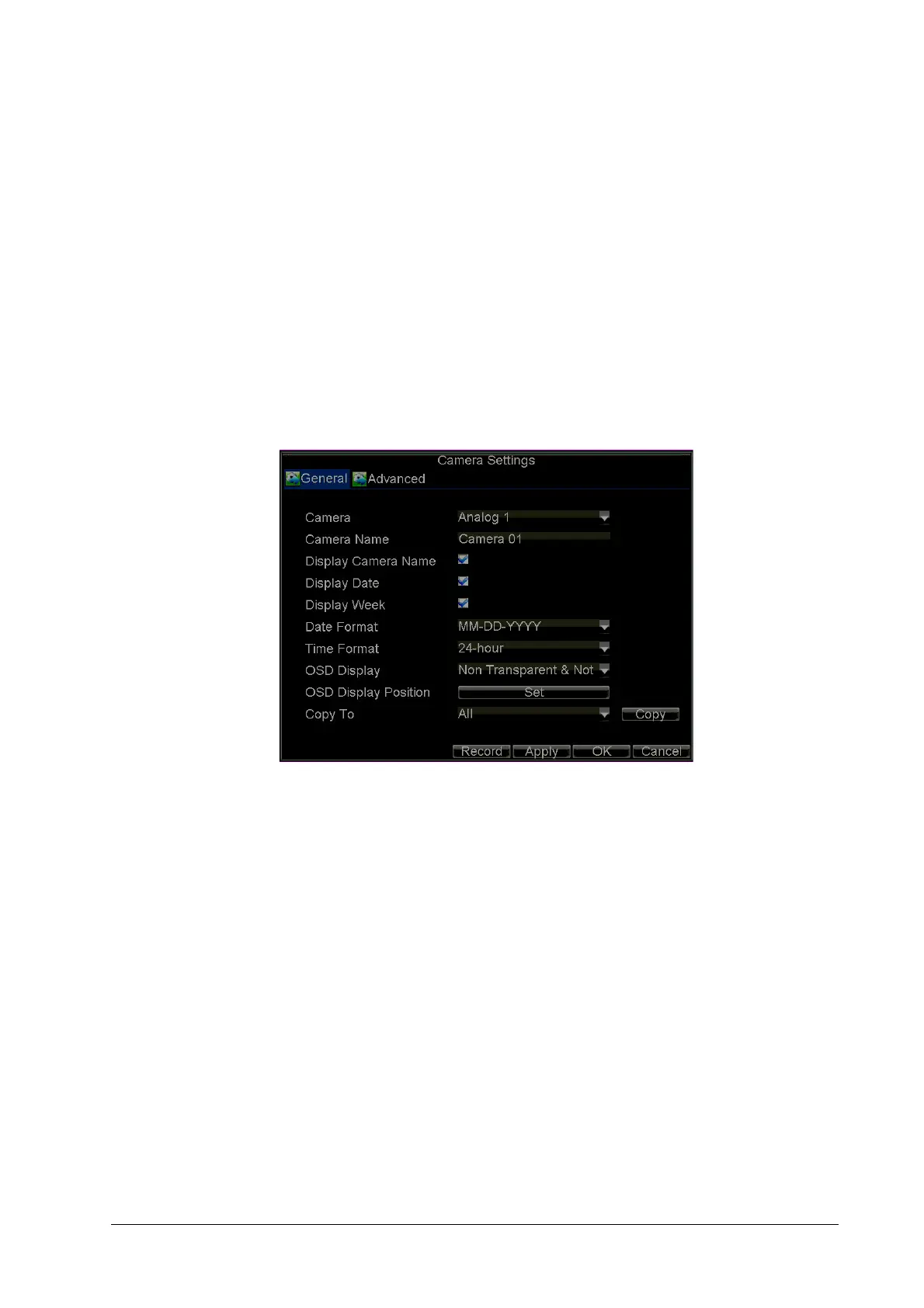

Figure 7-14 Camera Settings Menu
2. Select the Advanced tab to enter the Advanced Camera Settings menu.
3. Select the camera to be configured with video loss detection.
4. Select the Video Loss Detection check box to enable this feature (see Figure 7-15).
To Next Page
