800-13897 - A - 01/2013
Alarm Settings | 77

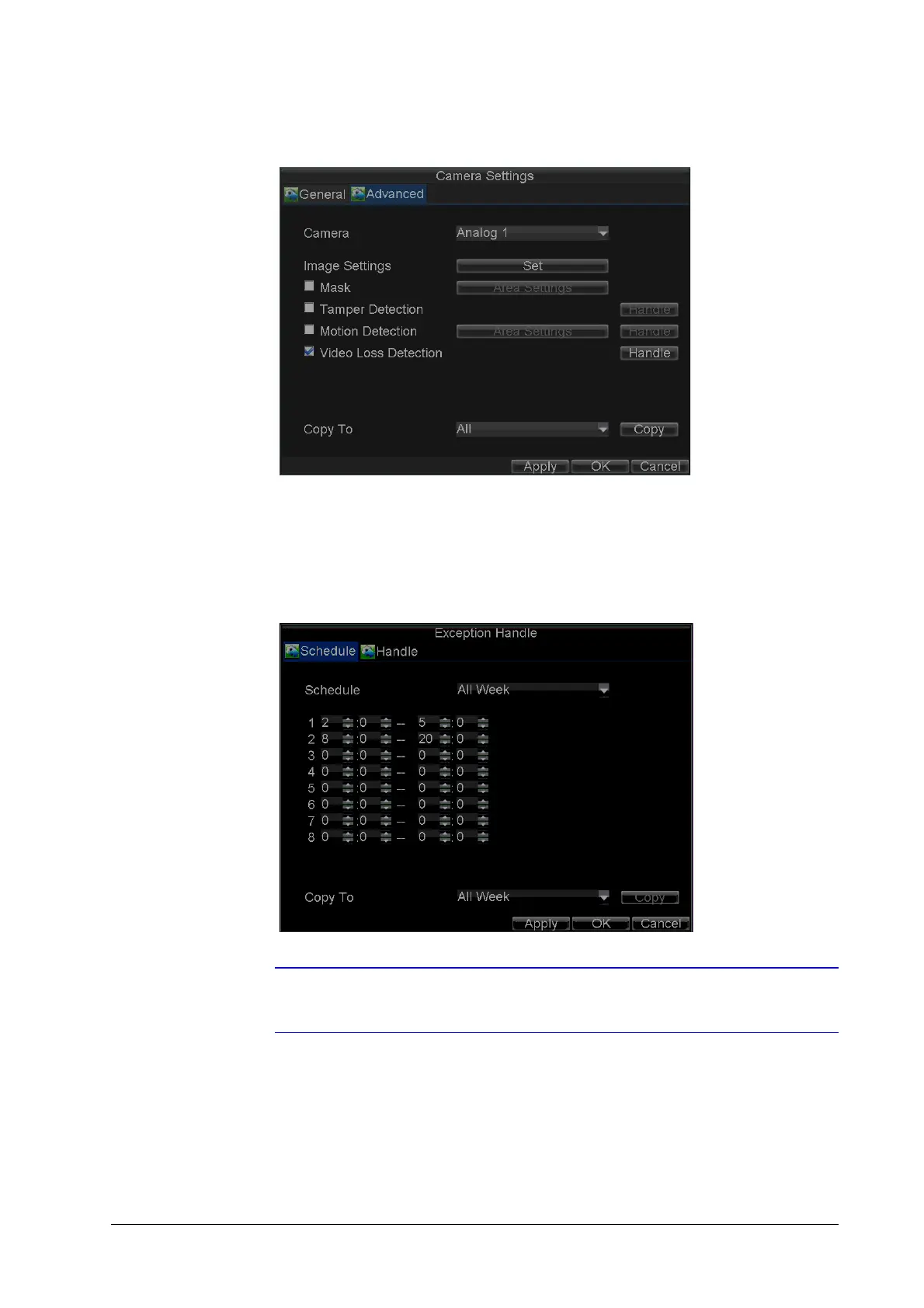

Figure 7-15 Advanced Camera Settings - Video Loss Detection
5. Next to Video Loss Detection, click Handle to enter the Exception Handle menu.
6. Select the Schedule tab to set when you want video loss detection to be enabled (see
Figure 7-16). The schedule can be set for all week or any day of the week, with up to eight
time periods per day.
Figure 7-16 Schedule Settings
Note After you have configured the schedule, the HRG DVR must be restarted for the
new settings to take effect.
7. Select the Handle tab to configure exceptions handling (see Figure 7-17). Exception
trigger options are described in Understanding Exception Trigger Options on page 81.
