5.5. Online configuration
80 MC Toolkit (MCT404) User Manual Revision 3

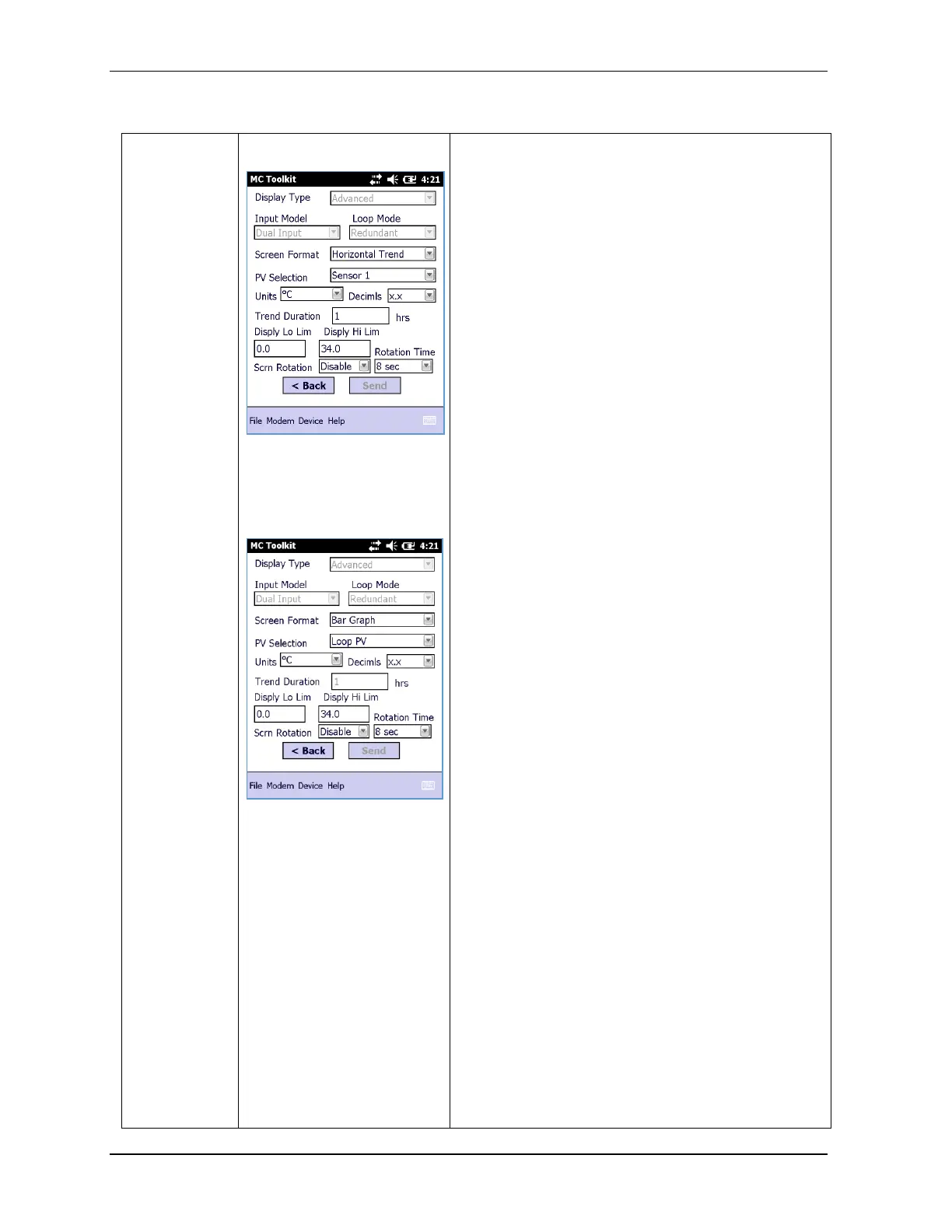

Local Display
(STT 850/ 750)
Display Type:
 Not Connected
 Advance Display
 Basic Display
Input Model (Sensor input Mode
 Single input
 Dual input
Loop Mode (Sensor Mode)
 sensor 1
 Redundant Mode
 Delta Mode
Screen Format
 None
 Large PV
 Bar Graph (Applicable for only Advance Display,
STT850 only)
 Horizontal Trend (Applicable for only Advance
Display, STT850 only) )
PV Selection: For Dual input Models:
 Loop PV (C,F,R,K,Ohm,MV)
 CJ Temperature (C,F,R,K)
 Sensor 1 (C,F,R,K,Ohm,MV)
 Sensor 2 (C,F,R,K)
 Sensor Delta (C,F,R,K)
 Sensor 1 Resistance (Ohm)
 Sensor 2 Resistance (Ohm)
 Loop Output (mA)
 Percent Output (%)
PV Selection: For Single input Models:
 Loop PV
 CJ Temperature
 Sensor
 Sensor Resistance
 Loop Output (mA)
 Percent Output
Units (Screen Units)
 degC
 degF
 Rankine
 Kelvin
 Millivolt
 Ohm
 Percent
 Milliamps
