4.3 DE Transmitter Online Configuration
Online configuration consists of establishing communication between the MC Toolkit and a
Transmitter configured for DE communication. Each Transmitter has a configured database, whether
new from the factory, a spare, or one to be reconfigured. In any case, the MC Toolkit application is
used to upload the existing configuration from the Transmitter for review and editing.
Uploading a Transmitter Configuration
1. Connect a DE Transmitter to the MC Toolkit. Be sure that both devices have power applied.
2. Start the MC Toolkit application by selecting Start / MC Toolkit on the MC Toolkit /
MCT202. The MC TOOLKIT Home page will be displayed.

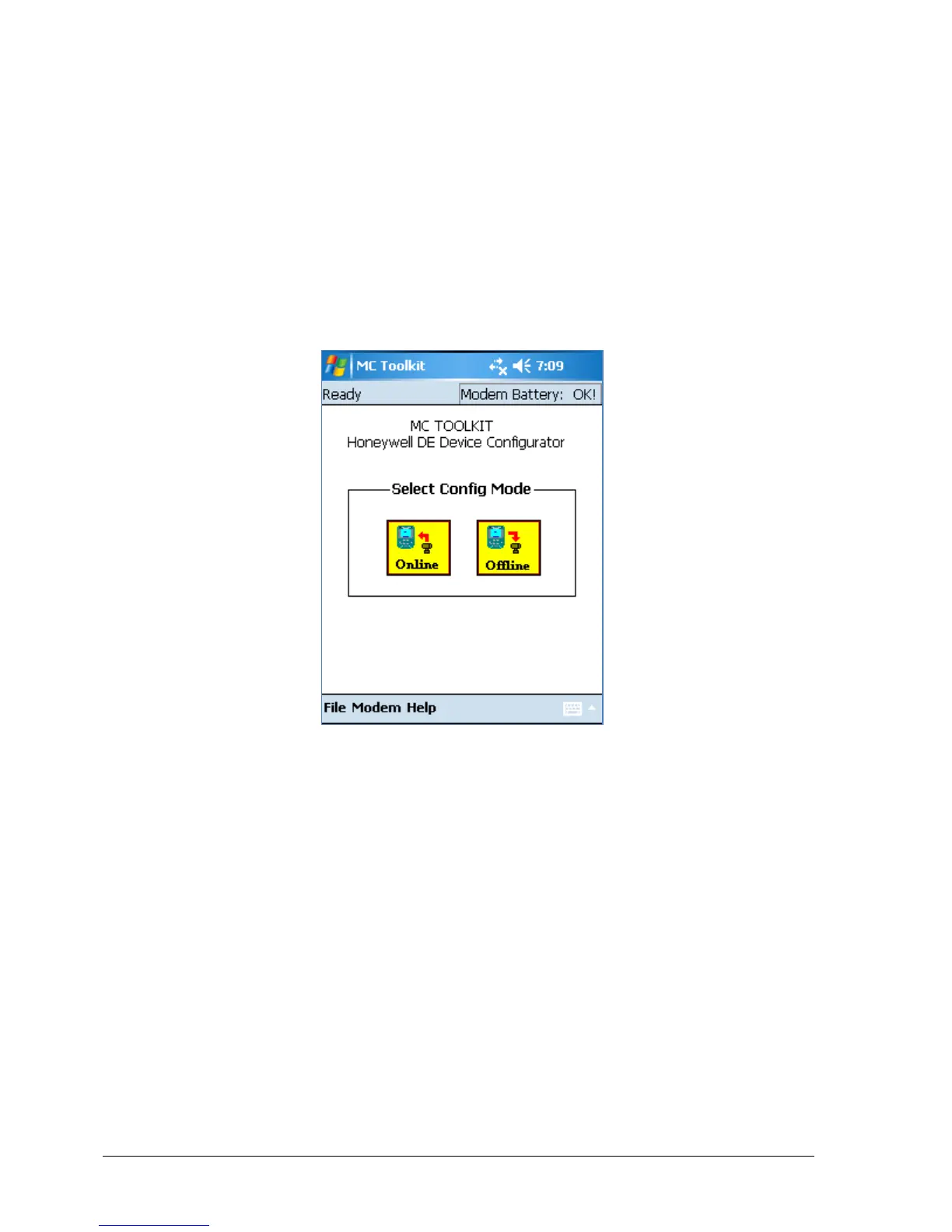

3. Select the Online button, and establish communication between the Toolkit and the
Transmitter.
4. When the warning message for connecting to a DE device appears, select OK.
5. Process the three warning pop-ups as appropriate, and then select OK in the Put loop in
Manual… pop-up. The QUICK MONITOR box will be displayed.
