Revision 5.0 ST 800 Series HART/DE Option User’s Manual Page 29

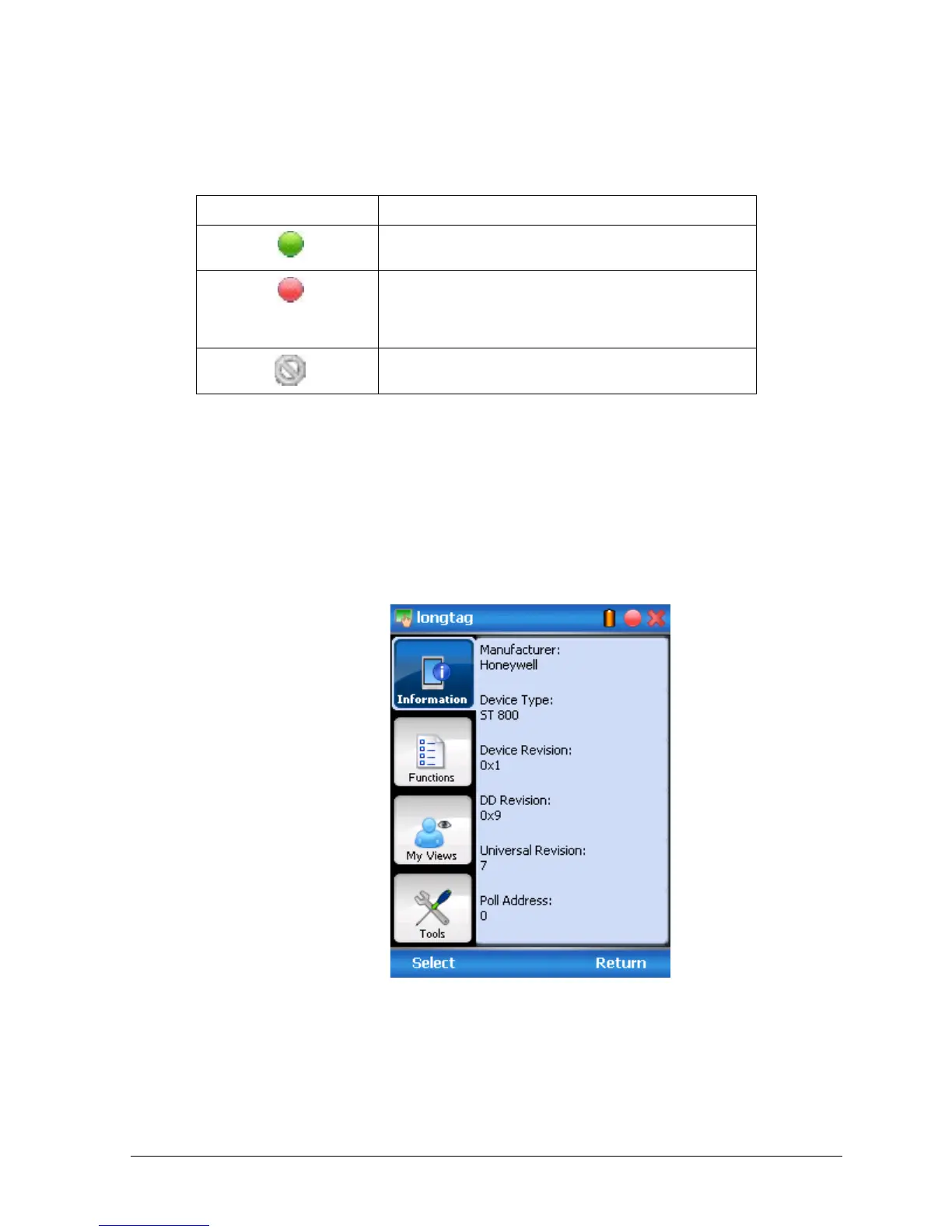

Figure 9 – Device Homepage
Table 10 Lists the device health status and their indications.
Table 10 - Device health status
Device health icons Indications
Indicates there’s no health or status indicators reported
by the device
Indicates that the device is potentially reporting a status
which needs attention and further investigation. It is
advised that you use Device Status under Functions tab
to further investigate the details.
Indicates that the device has lost communication with MC
Toolkit
Tabs on the Device Home page
The following are the options that are available on the device homepage
• Information tab: Use this option to view the device identity related information. You can
view the manufacturer name, device type, device revision, DD revision, and universal
revision of the HART device.
• Functions tab: This tab provides various options which you may use for navigating
through the device specific user interface and some standard features offered by FDC
across all devices. For the sake of explanations, the right side options under this tab shall
be referred as “Entry points” throughout the rest of the document.
