Page 18 ST 800 Series HART/DE Option User’s Manual Revision 5.0
Transmitter Display Configuration

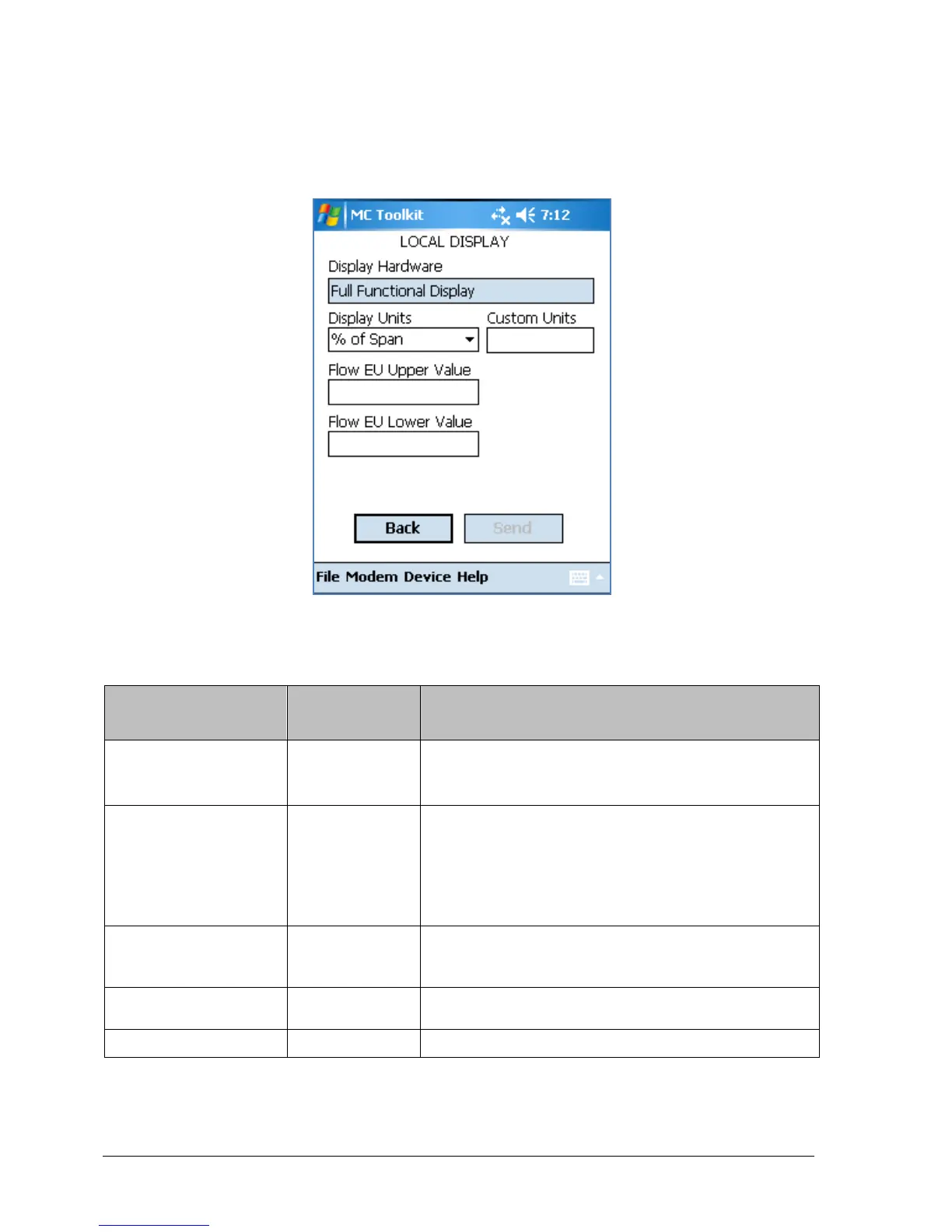

From the DE MAIN MENU, select the Local Display button. The LOCAL DISPLAY box will
be displayed.
Select display parameters from the options listed in Table 7
Table 7 – Local Display Configuration Parameters
Parameter
Read (R) or
Read/Write
(R/W)
Configuration Details
Display Hardware
R
Type of Transmitter Display:
Full Functional Display
No Display installed
Display Units
R/W
Engineering Units for this Display:
%, inH2O@39
o
F mmHg@0
o
C
psi, KPa MPa, mBar,
Bar g/cm2, kg/cm2 mmH2O@4
o
C
mHg@0
o
C mH2O@4
o
C GPM
GPH Custom
Custom Units Tag
R/W
8 Characters
Note that the Custom Units Tag is not sent to the
Display. It will be displayed in the Tool.
Flow EU Upper Value
4.3.1 R/W
4.3.2 Floating point (for square root configurations)
Flow EU Lower Value
R/W
Floating point (for square root configurations)
Select the Back button to go back to the DE MAIN MENU.
