Revision 5.0 ST 800 Series HART/DE Option User’s Manual Page 65
f. Use the Increment or Decrement button, as necessary to adjust the output current to
20 mA. When the current reaches the 20 mA level, select Clear Output; the button
will change to half-intensity.
5. Change the display in output mode as follows:
a. Selecting the Back button before selecting the Clear Output button, you will be
prompted to confirm that you want to clear the output.
b. If you want to stay in output mode while viewing other displays, select Yes;
otherwise, select No and the Clear Output button.
c.
6.10 Manually Setting the Process Variable Range
This procedure applies to DE Transmitters operating in both DE mode and analog (current) mode.
During this procedure, the PV input will be set to 0%, which will be applied as the LRV. Further, the
PV input will be set to 100% and applied as the URV.
1. Establish the test connections shown below. Then start the MC Toolkit application to display
the DE MAIN MENU.

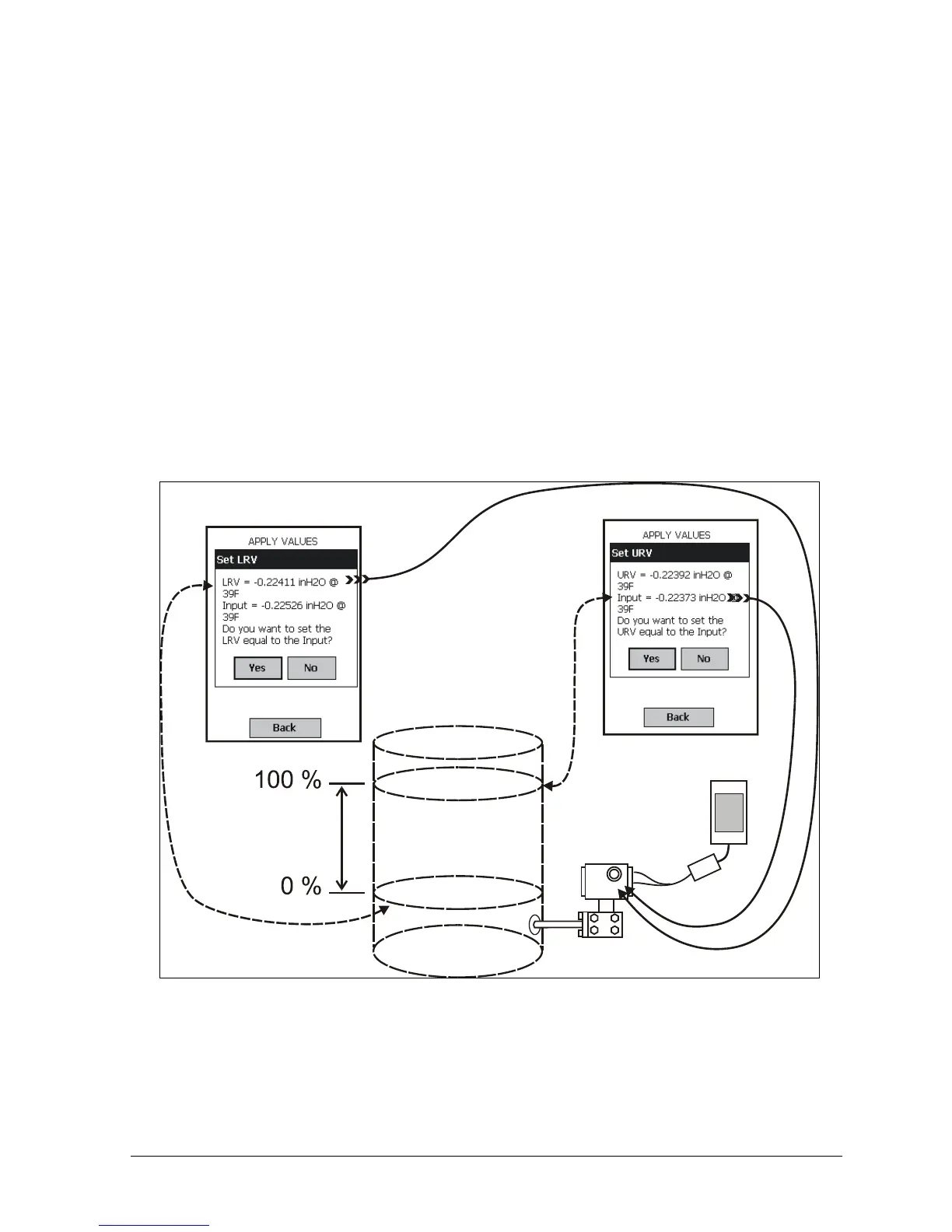

Figure 14 – Setup to Manually Set the PV LRV and URV
