Revision 5.0 ST 800 Series HART/DE Option User’s Manual Page 67
5. Set the URV as follows:
a. While observing the PV value at the physical process element (using a sight glass, for
example), adjust the process variable to the desired maximum level, and then select
Set URV.

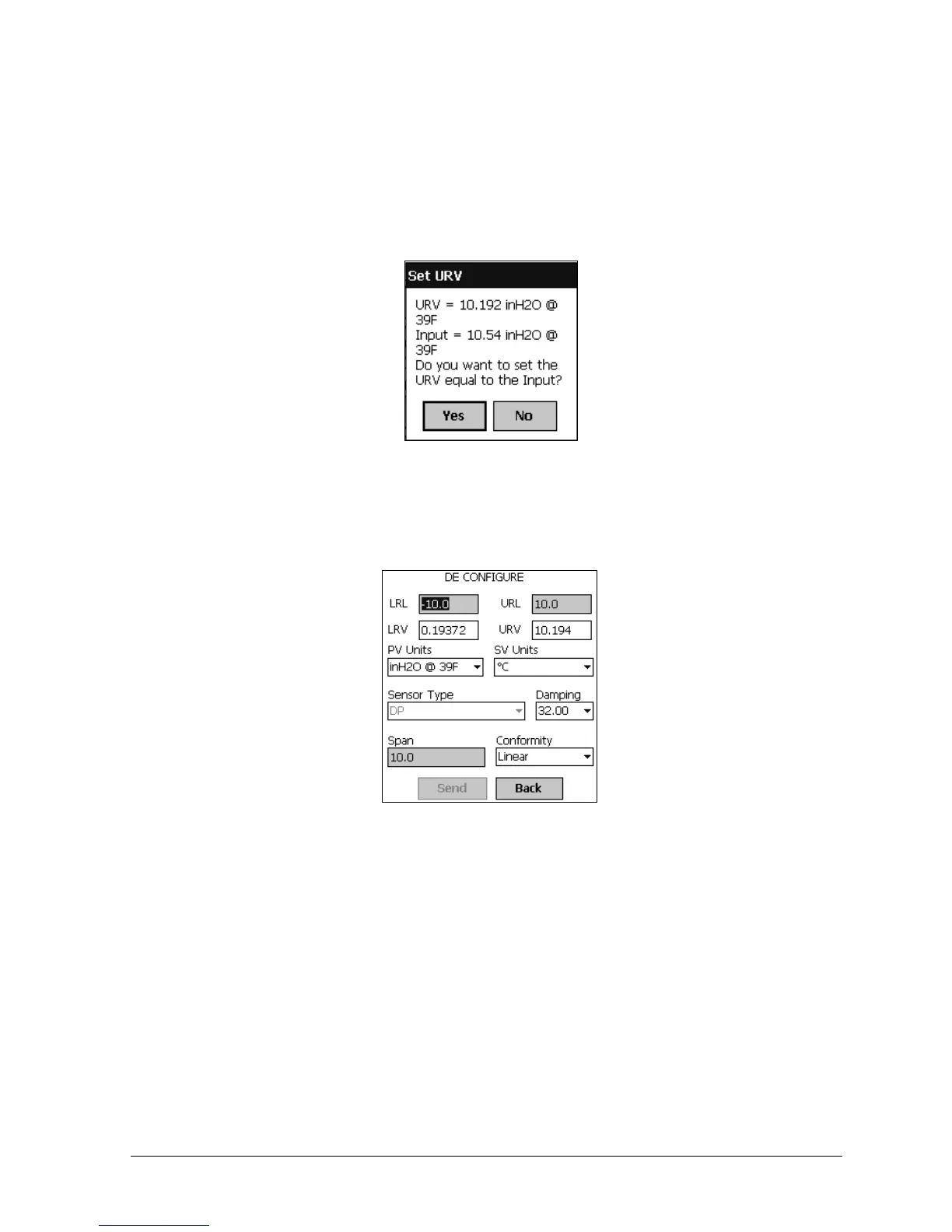

b. If the displayed value is satisfactory, select Yes to copy the Input Value to the URV
in the Transmitter. If not, select NO and repeat this step.
6. Verify the LRV and URV settings as follows:
a. Call up the DE CONFIGURE display, and observe that the settings are established in
Steps 4 and 5.
b. This concludes the procedure to manually set the operating range.
