Honeywell Xenon Series User Manual

324 Xenon/Granit User Guide
Standard Connector Pinouts
Note: The following pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit. Use of
any cables not provided by the manufacturer may result in damage not covered by
your warranty.
Keyboard Wedge

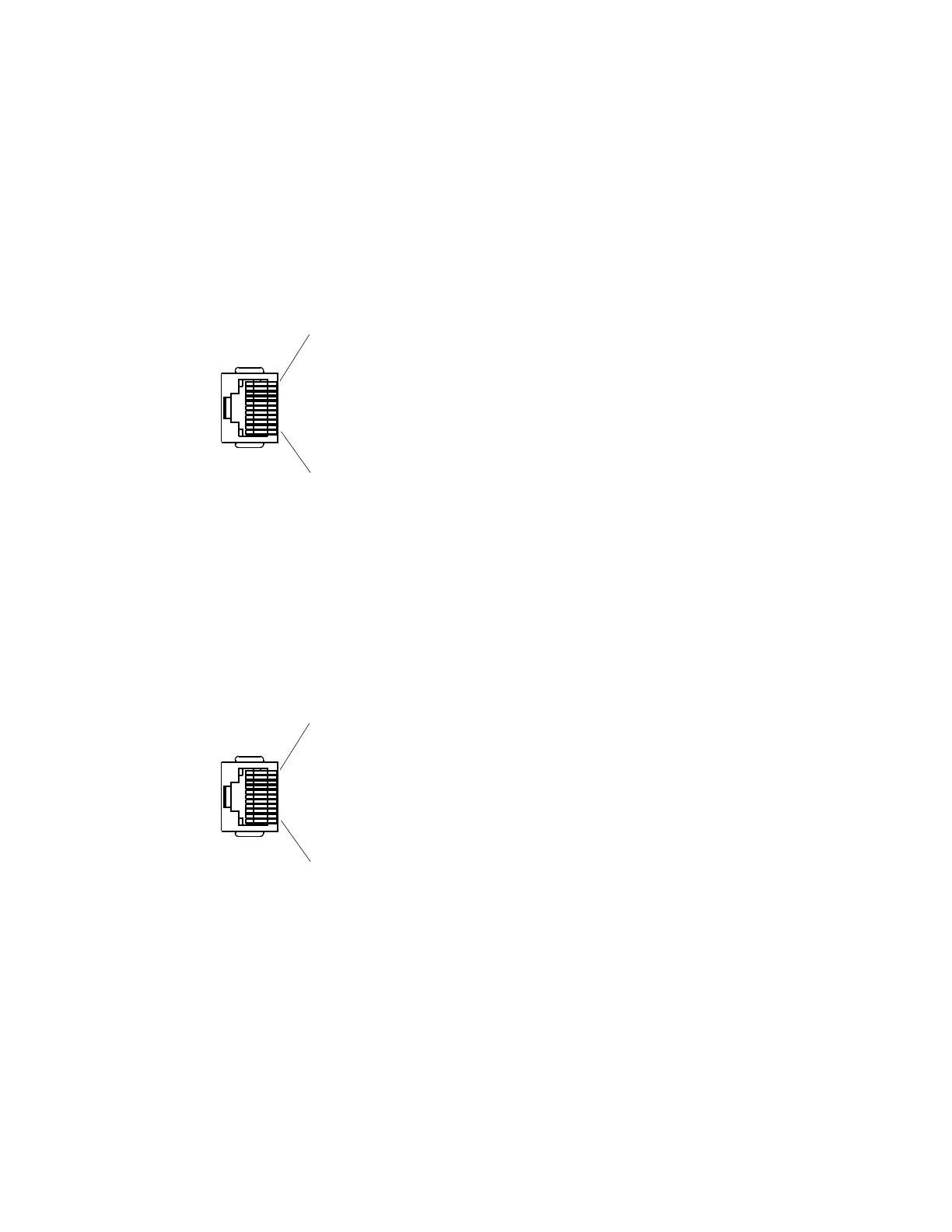

10 Pin RJ41 Modular Plug - connects to the base
Serial Output
10 Pin RJ41 Modular Plug - connects to the base
1Cable shield
2Cable select
3Supply ground
4Terminal data
5Terminal clock
6Keyboard clock
7+5V power
8Keyboard data
9
10
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6CTS
7+5V power
8RTS
9
10

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
