Honeywell Xenon Series User Manual

Xenon/Granit User Guide 325
RS485 Output

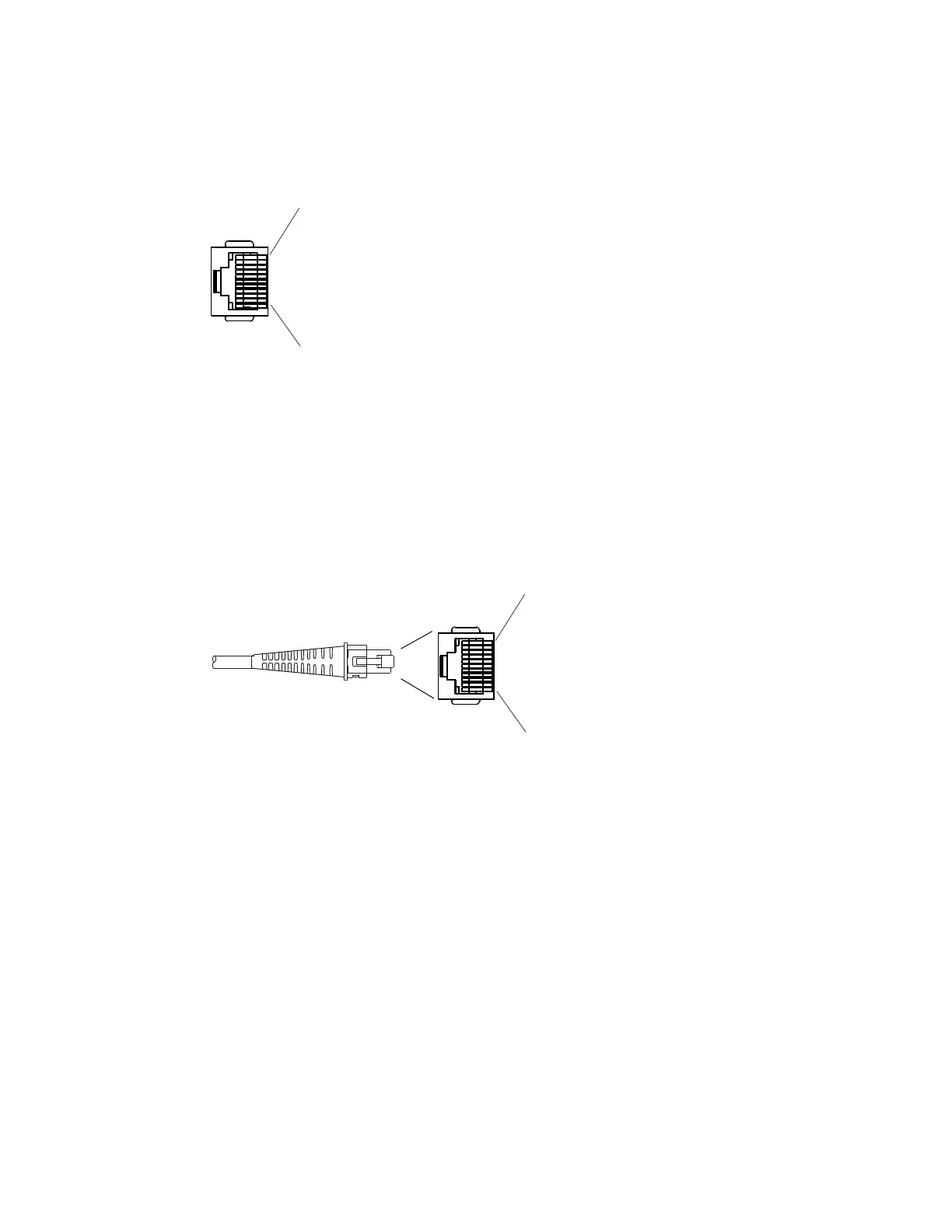

10 Pin RJ41 Modular Plug - connects to the base
Note: RS485 signal conversion is performed in the cable.
USB
10 Pin Modular Plug - connects to the base
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6
7+5V power
8Transmit Enable
9
10
1Cable shield
2Cable select
3Supply ground
4
5
6
7+5V power
8
9Data +
10Data -

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
