Honeywell Xenon Series User Manual

Xenon/Granit User Guide 333

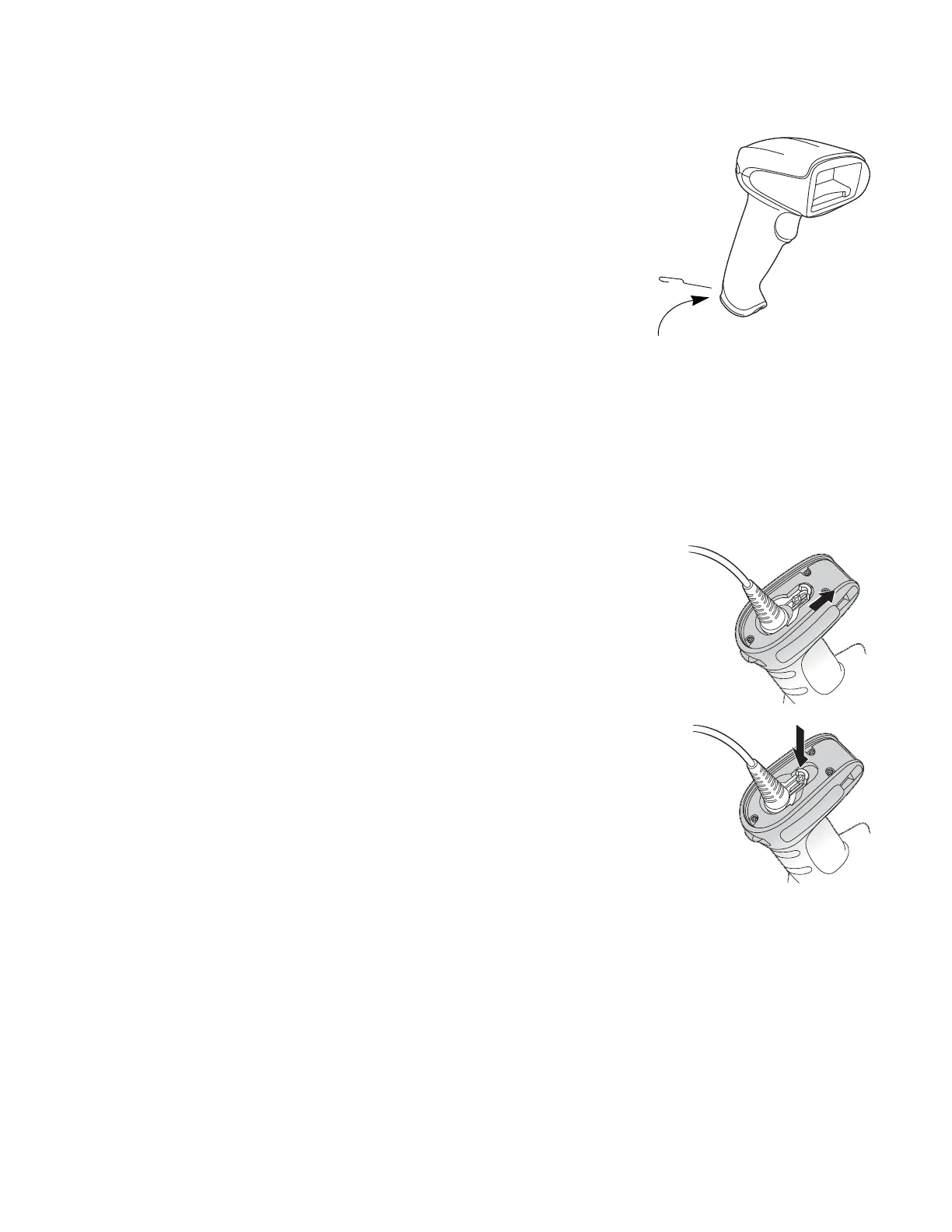

Replace a Xenon Interface Cable
1. Turn off the power to the host system.
2. Disconnect the scanner’s cable from the terminal
or computer.
3. Locate the small hole on the back of the scanner’s
handle. This is the cable release.
4. Straighten one end of a paper clip.
5. Insert the end of the paper clip into the small hole
and press in. This depresses the retention tab,
releasing the connector. Pull the connector out
while maintaining pressure on the paper clip, then
remove the paper clip.
6. Replace with the new cable.
Insert the connector into the opening and press firmly. The connector is keyed
to go in only one way, and will click into place.
Replace a Granit Interface Cable
1. Turn the power to the host system OFF.
2. Disconnect the scanner’s cable from the terminal or
computer.
3. Unscrew the locking plate on the bottom of the
scanner.
4. Slide the locking plate away from the connector and
pull the cable out of the scanner.
5. Replace with the new cable.
Insert the connector into the opening and press firmly.
6. Slide the locking plate over the base of the connector
to secure the cable, and screw the plate into place.
Replace Cables and Batteries in Cordless Systems
Replace an Interface Cable in a Base
1. Turn the power to the host system OFF.
2. Disconnect the base’s cable from the terminal or computer.
Cable
Release

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
