334 Xenon/Granit User Guide

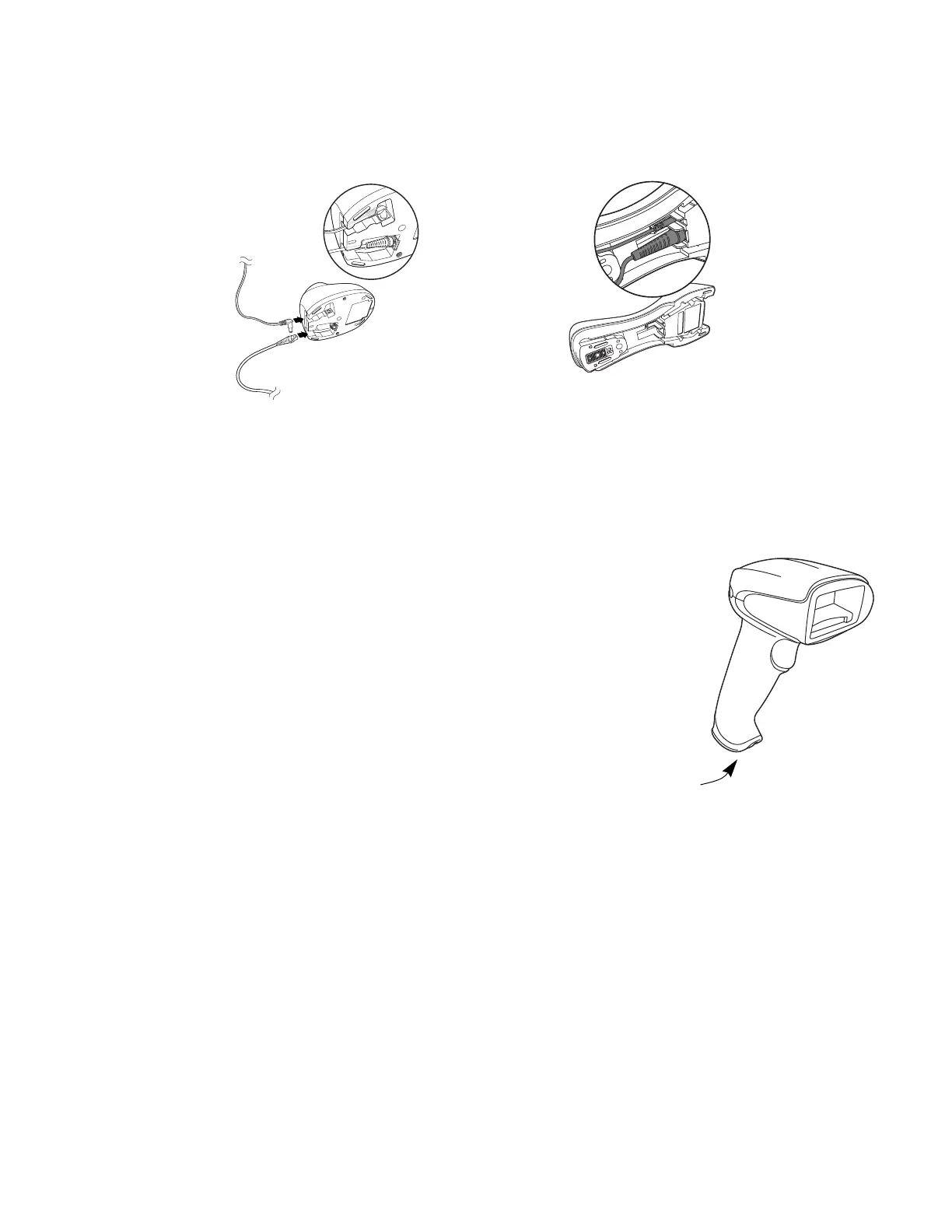

3. Turn the base upside down.
4. Pull the connector out while maintaining pressure on the connector release
clip.
5. Replace with the new cable.
Insert the connector into the opening and press firmly. The connector is keyed
to go in only one way, and will click into place.
Change a Xenon Scanner Battery
1. Use a Phillips head screwdriver to remove the
screw from the end cap.
2. Remove the end cap and remove the battery
from the handle.
3. Insert replacement battery.
4. Replace end cap and screw.
CCB01-010BT Base:
CCB02-100BT/CCB05-100BT Base:
End Cap

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
