Data
Communications

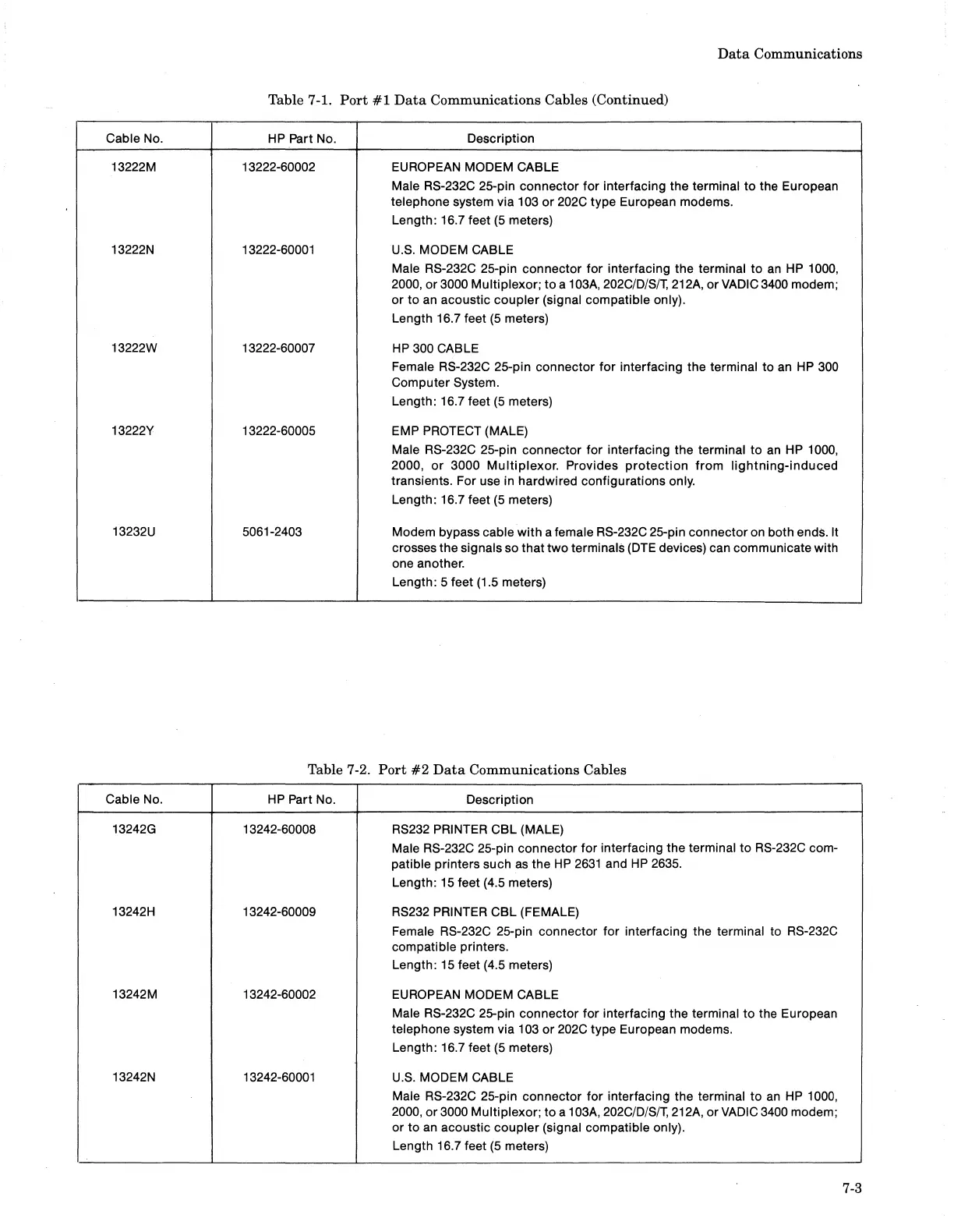

Table
7-1.
Port
#1
Data
Communications
Cables
(Continued)
Cable No.
HP Part No.
Description
13222M
13222-60002
EUROPEAN MODEM CABLE
Male RS-232C 25-pin connector
for
interfacing the terminal
to
the European
telephone system via 103
or
202C type European modems.
Length: 16.7 feet
(5
meters)
13222N
13222-60001 U.S. MODEM CABLE
Male RS-232C 25-pin connector
for
interfacing the terminal
to
an
HP 1000,
2000,
or 3000 Multiplexor;
to
a 103A, 202C/D/S/T, 212A, orVADIC 3400 modem;
or
to
an acoustic
coupler
(signal compatible only).
Length 16.7 feet
(5
meters)
13222W
13222-60007
HP
300 CABLE
Female RS-232C 25-pin connector
for
interfacing the terminal
to
an HP 300
Computer System.
Length: 16.7 feet
(5
meters)
13222Y
13222-60005
EMP PROTECT (MALE)
Male RS-232C 25-pin connector
for
interfacing the terminal
to
an
HP 1000,
2000,
or
3000
Multiplexor.
Provides
protection
from
lightning-induced
transients. For use in hardwired configurations only.
Length: 16.7 feet
(5
meters)
13232U
5061-2403
Modem bypass cable
with
a female RS-232C 25-pin connector on both ends. It
crosses the signals so
that
two
terminals (DTE devices) can communicate with
one another.
Length: 5 feet (1.5 meters)
Table
7-2.
Port
#2
Data
Communications
Cables
Cable No. HP Part No.
Description
13242G
13242-60008 RS232 PRINTER CBL (MALE)
Male RS-232C 25-pin connector
for
interfacing the terminal to RS-232C com-
patible printers such
as
the
HP
2631
and HP 2635.
Length:
15
feet (4.5 meters)
13242H
13242-60009 RS232 PRINTER CBL (FEMALE)
Female RS-232C 25-pin connector
for
interfacing the terminal to RS-232C
compatible printers.
Length: 15 feet (4.5 meters)
13242M
13242-60002
EUROPEAN MODEM CABLE
Male RS-232C 25-pin connector
for
interfacing the terminal
to
the European
telephone system via 103
or
202C type European modems.
Length: 16.7 feet
(5
meters)
13242N
13242-60001
U.S.
MODEM CABLE
Male RS-232C 25-pin connector
for
interfacing the terminal
to
an
HP 1000,
2000,
or
3000 Multiplexor;
to
a 103A, 202C/D/S/T, 212A, or VADIC 3400 modem;
or to
an
acoustic
coupler
(signal compatible only).
Length 16.7 feet
(5
meters)
7-3
