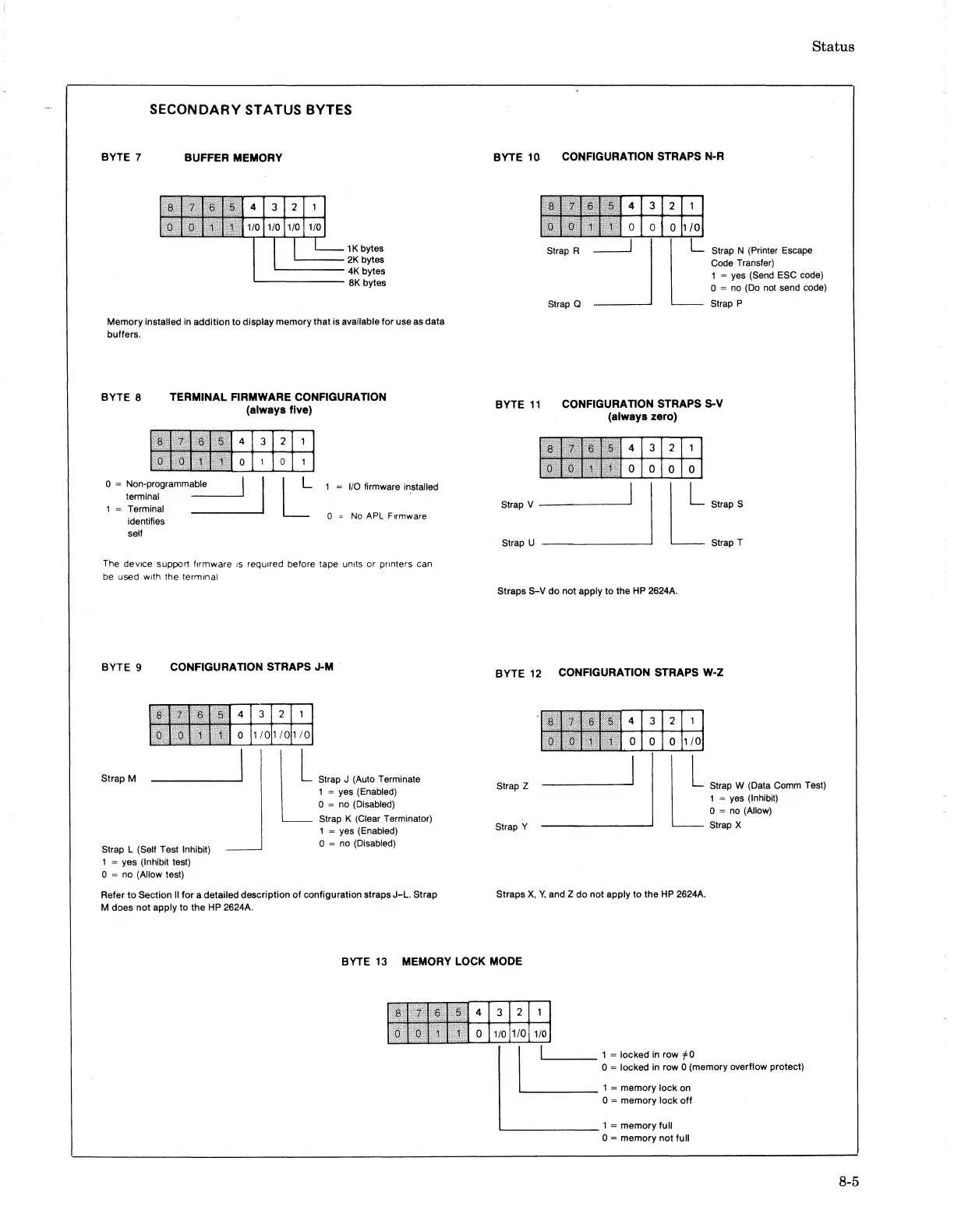

SECONDARY STATUS BYTES
BYTE 7
BUFFER
MEMORY
lK bytes
'----- 2K bytes
'----- 4K bytes
'------- 8K bytes
Memory installed in
addition to display memory that is available for use as data
buffers.
BYTE 8 TERMINAL FIRMWARE CONFIGURATION
(always
five)
o = Non~prOgramma~le I
termonal
1 = Terminal
identifies
self
1 = 1/0 firmware installed
o = No APL FIrmware
The sevlce support ftrmware IS required before tape Units or printers can
be used with the terminal
BYTE 9
CONFIGURATION STRAPS J·M
Strap M
Strap L (Self Test Inhibit)
1 = yes (Inhibit test)
o = no (Allow test)
[
Strap J (Auto Terminate
1
= yes (Enabled)
o = no (Disabled)
Strap K (Clear Terminator)
1 = yes (Enabled)
o = no (Disabled)
Refer
to Section II for a detailed description of configuration straps J-L. Strap
M does not apply to the HP 2624A.
BYTE 10
CO"lFIGURATION STRAPS N·R
Strap N (Printer Escape
Code Transfer)
Status
1 = yes (Send ESC code)
o = no (Do not send code)
BYTE 11
Strap Q Strap P
CONFIGURATION STRAPS SOV
(always zero)
Straps S-V do not apply to the HP 2624A.
BYTE 12 CONFIGURATION STRAPS W·Z
Strap Z
Strap Y
Straps X, Y, and Z do not apply to the HP 2624A.
BYTE 13 MEMORY LOCK MODE
L=
1 = locked in row 1'0
o = locked in row 0 (memory overflow protect)
1 = memory lock on
o = memory lock off
'-- ______ 1 = memory full
o = memory not full
8-5
