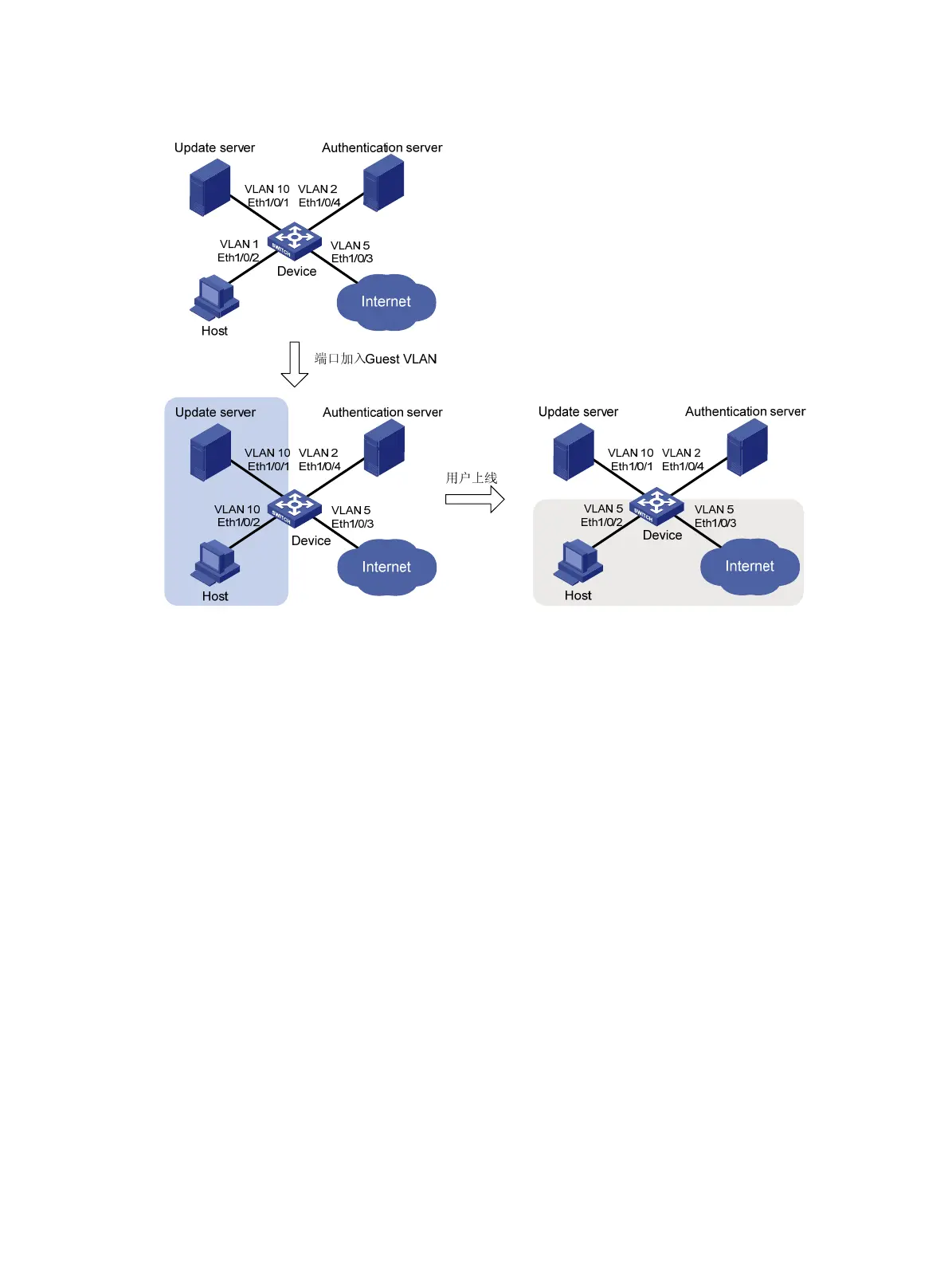

Figure 30 Network diagram
Configuration procedure
The following configuration procedure covers most AAA/RADIUS configuration commands on the
device. The configuration on the 802.1X client and RADIUS server are not shown. For more information
about AAA/RADIUS configuration commands, see Security Command Reference.
1. Make sure the 802.1X client can update its IP address after the access port is assigned to the guest
VLAN or a server-assigned VLAN. (Details not shown.)
2. Configure the RADIUS server to provide authentication, authorization, and accounting services.
Configure user accounts and server-assigned VLAN, VLAN 5 in this example. (Details not shown.)
3. Create VLANs, and assign ports to the VLANs.
<Device> system-view
[Device] vlan 1
[Device-vlan1] port ethernet 1/0/2
[Device-vlan1] quit
[Device] vlan 10
[Device-vlan10] port ethernet 1/0/1
[Device-vlan10] quit
[Device] vlan 2
[Device-vlan2] port ethernet 1/0/4
[Device-vlan2] quit
[Device] vlan 5
[Device-vlan5] port ethernet 1/0/3
[Device-vlan5] quit
