HP 3600 v2 Series Configuration Guide

324

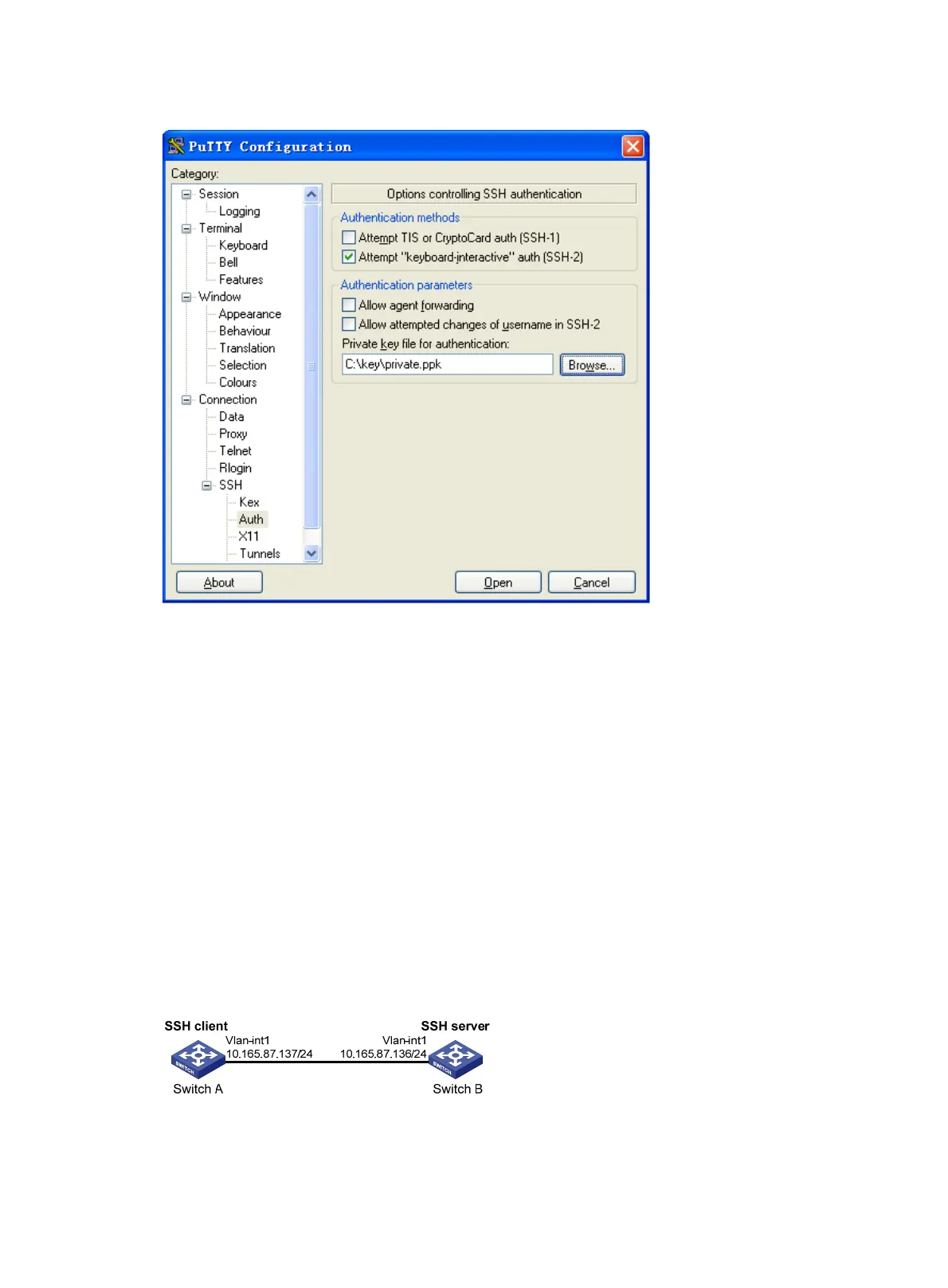

Figure 97 Specifying the private key file
e. Click Open to connect to the server.
If the connection is normal, you will be prompted to enter the username. After entering the
username (client002), you can enter the configuration interface of the server.
SSH client configuration examples
Unless otherwise noted, devices in the configuration examples are operating in non-FIPS mode.
When switch acts as client for password authentication
Network requirements
As shown in Figure 98, Switch A (the SSH client) must pass password authentication to log in to Switch
B (the SSH server) through the SSH protocol. Configure the username client001 and the password aabbcc
for the SSH client on Switch B.
Figure 98 Network diagram
Configuration procedure
1. Configure the SSH server:
