HP 3600 v2 Series Configuration Guide

182
Configuring Layer 2 portal authentication
Network requirements
As shown in Figure 68, a host is directly connected to a switch. The switch performs Layer 2 portal
authentication on users connected to port Ethernet 1/0/1. More specifically,
• Use the remote RADIUS server for authentication, authorization and accounting.
• Use the remote DHCP server to assign IP addresses to users.
• The listening IP address of the local portal server is 4.4.4.4. The local portal server pushes the
user-defined authentication pages to users and uses HTTPS to transmit authentication data.
• Add users passing authentication to VLAN 3.
• Add users failing authentication to VLAN 2, to allow the users to access resources on the update
server.
• The host obtains an IP address through DHCP. Before authentication, the DHCP server assigns an IP
address in segment 192.168.1.0/24 to the host. When the host passes the authentication, the DHCP
server assigns an IP address in segment 3.3.3.0/24 to the host. When the host fails authentication,
the DHCP server assigns an IP address in segment 2.2.2.0/24 to the host.

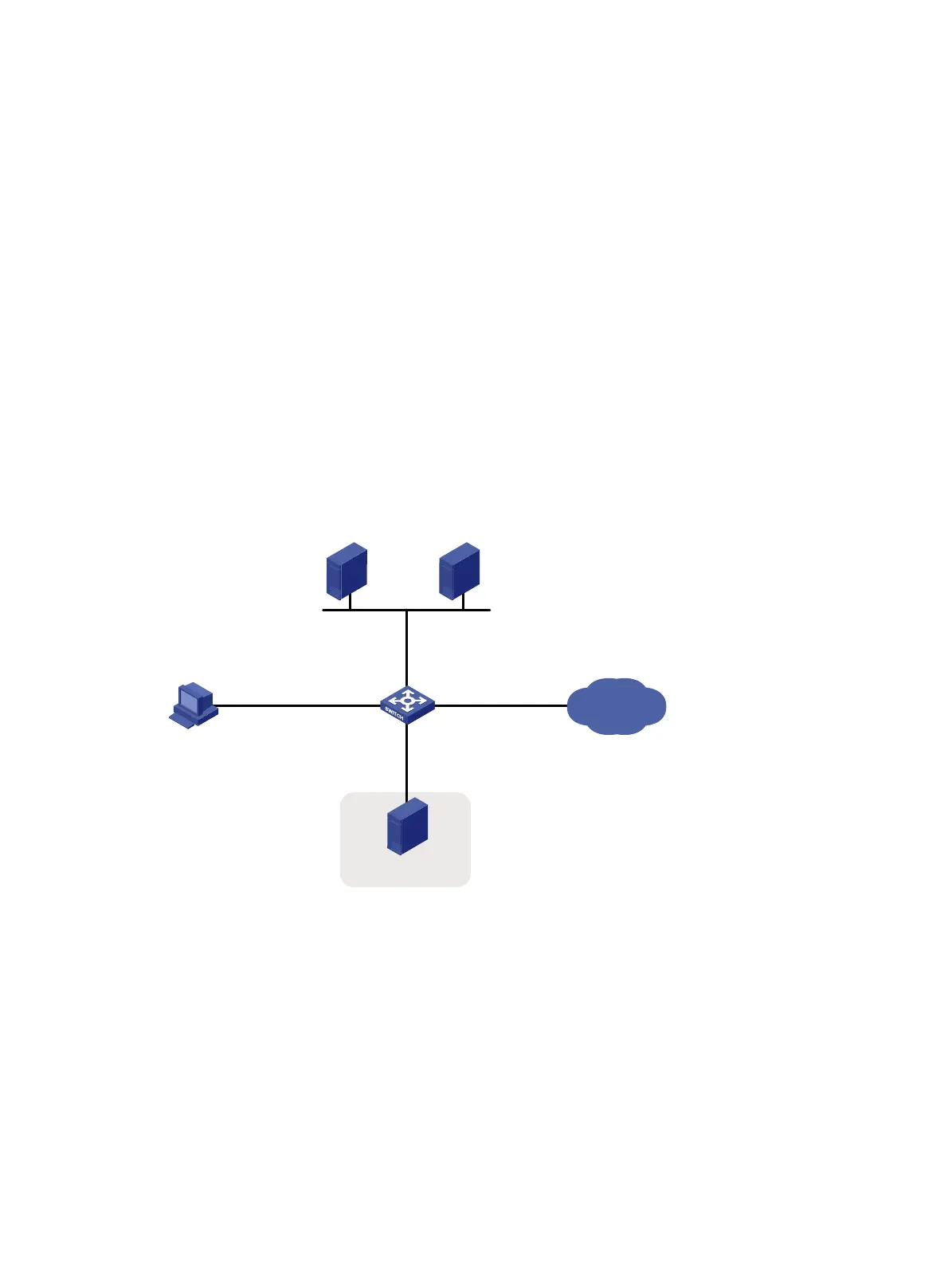

Figure 68 Network diagram
Configuration procedures
Follow these guidelines to configure Layer 2 portal authentication:
• Make sure that the host, switch, and servers can reach each other before portal authentication is
enabled.
• Configure the RADIUS server properly to provide normal authentication/authorization/accounting
functions for users. In this example, you must create a portal user account with the account name
userpt on the RADIUS server, and configure an authorized VLAN for the account.
• On the DHCP server, you must specify the IP address ranges (192.168.1.0/24, 3.3.3.0/24,
2.2.2.0/24), specify the default gateway addresses (192.168.1.1, 3.3.3.1, 2.2.2.1), exclude the
update server's address 2.2.2.2 from the address ranges for address allocation, specify the leases
IP network
RADIUS server
Switch
1.1.1.2/24
Host
Vlan-int3
3.3.3.1
Vlan-int8
192.168.1.1/24
Eth1/0/1
Vlan-int1
1.1.1.1
DHCP server
Update server
2.2.2.2/24
1.1.1.3/24
(DHCP relay)
Vlan-int2
2.2.2.1/24
