[SwitchB-ipsec-policy-isakmp-use1-10] ike-peer peer
[SwitchB-ipsec-policy-isakmp-use1-10] quit
# Apply the IPsec policy group to VLAN-interface 1.
[SwitchB] interface vlan-interface 1
[SwitchB-Vlan-interface1] ipsec policy use1
3. Verifying the configuration
After the previous configuration, send traffic from Switch B to Switch A. Switch A starts IKE negotiation
with Switch B when receiving the first packet. If IKE negotiation is successful and SAs are set up, the traffic
between the two switches will be IPsec protected.
IPsec for RIPng configuration example
The IPsec configuration procedures for protecting OSPFv3 and IPv6 BGP are similar. For more
information about RIPng, OSPFv3, and IPv6 BGP, see Layer 3—IP Routing Configuration Guide.
Network requirements
As shown in Figure 85, Switch A, Switch B, and Switch C are connected. They learn IPv6 routing
information through RIPng.
Configure IPsec for RIPng so that RIPng packets exchanged between the switches are transmitted through
an IPsec tunnel. Configure IPsec to use the security protocol ESP, the encryption algorithm DES, and the
authentication algorithm SHA1-HMAC-96.

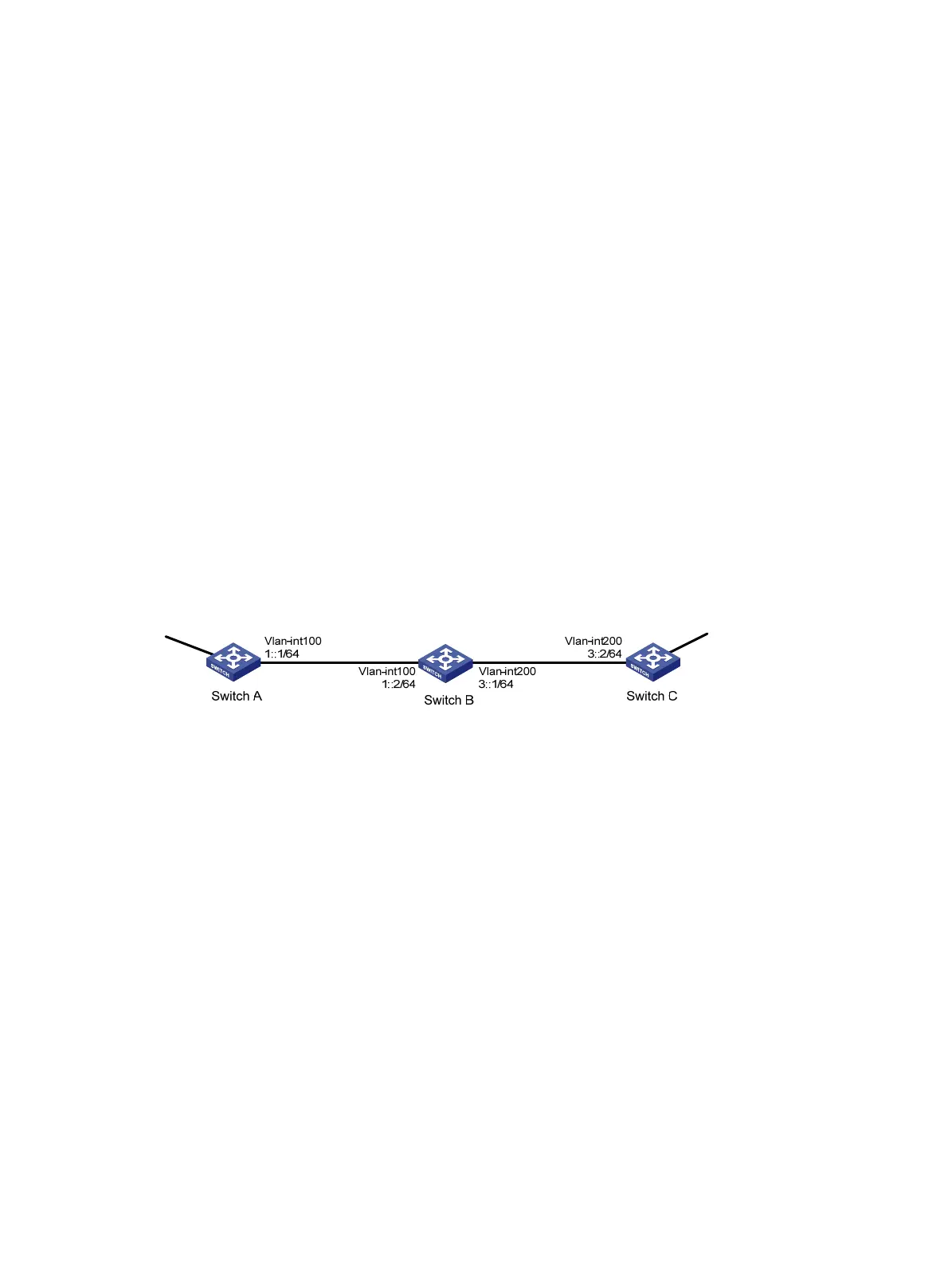

Figure 85 Network diagram
Configuration considerations
To meet the requirements, perform the following configuration tasks:
• Configure basic RIPng parameters.
• Configure a manual IPsec policy.
• Apply the IPsec policy to a RIPng process to protect RIPng packets in this process or to an interface
to protect RIPng packets traveling through the interface.
Configuration procedure
1. Configure Switch A
# Assign an IPv6 address to each interface. (Details not shown)
# Create a RIPng process and enable it on VLAN-interface 100.
<SwitchA> system-view
[SwitchA] ripng 1
[SwitchA-ripng-1] quit
[SwitchA] interface vlan-interface 100
[SwitchA-Vlan-interface100] ripng 1 enable
[SwitchA-Vlan-interface100] quit
