236

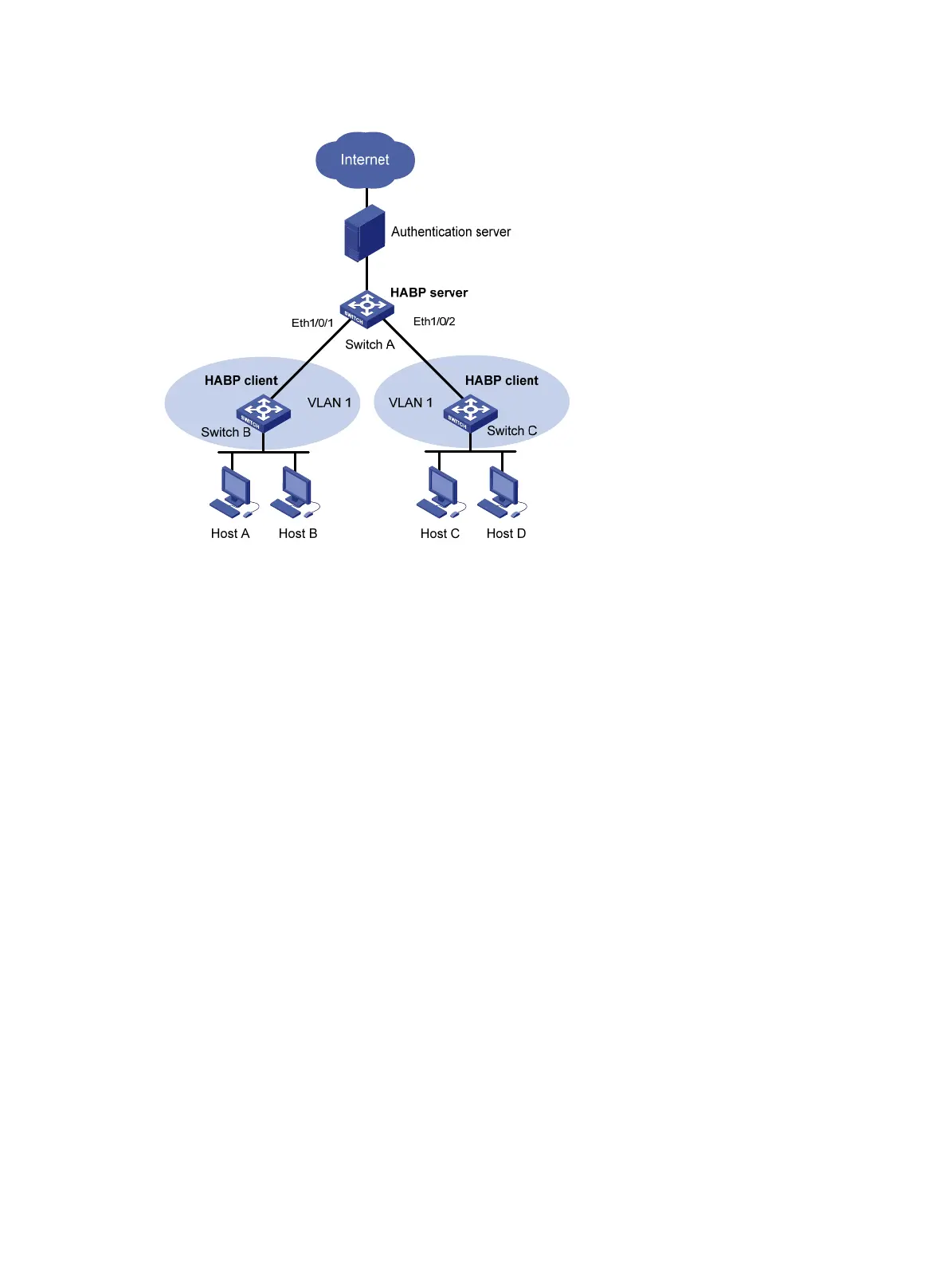

Figure 75 Network diagram
Configuration procedure
1. Configure Switch A:
# Perform 802.1X related configurations on Switch A (see "Configuring 802.1X").
# Enable HABP. (HABP is enabled by default. This configuration is optional.)
<SwitchA> system-view
[SwitchA] habp enable
# Configure HABP to work in server mode, and specify VLAN 1 for HABP packets.
[SwitchA] habp server vlan 1
# Set the interval at which the switch sends HABP request packets to 50 seconds.
[SwitchA] habp timer 50
2. Configure Switch B:
# Enable HABP. (HABP is enabled by default. This configuration is optional.)
<SwitchA> system-view
[SwitchB] habp enable
# Configure HABP to work in client mode. (HABP works in client mode by default. This
configuration is optional.)
[SwitchB] undo habp server
# Specify the VLAN to which the HABP client belongs as VLAN 1. (An HABP client belongs to
VLAN 1 by default. This configuration is optional.)
[SwitchB] habp client vlan 1
3. Configure Switch C:
Configurations on Switch C are similar to those on Switch B.
4. Verify your configuration:
# Display HABP configuration information.
