NOTE:
The IP address of the access device specified here must be the same as the source IP address of the RADIUS
packets sent from the switch, which is the IP address of the outbound interface by default, or otherwise the
IP address specified with the nas-ip or radius nas-ip command on the switch.

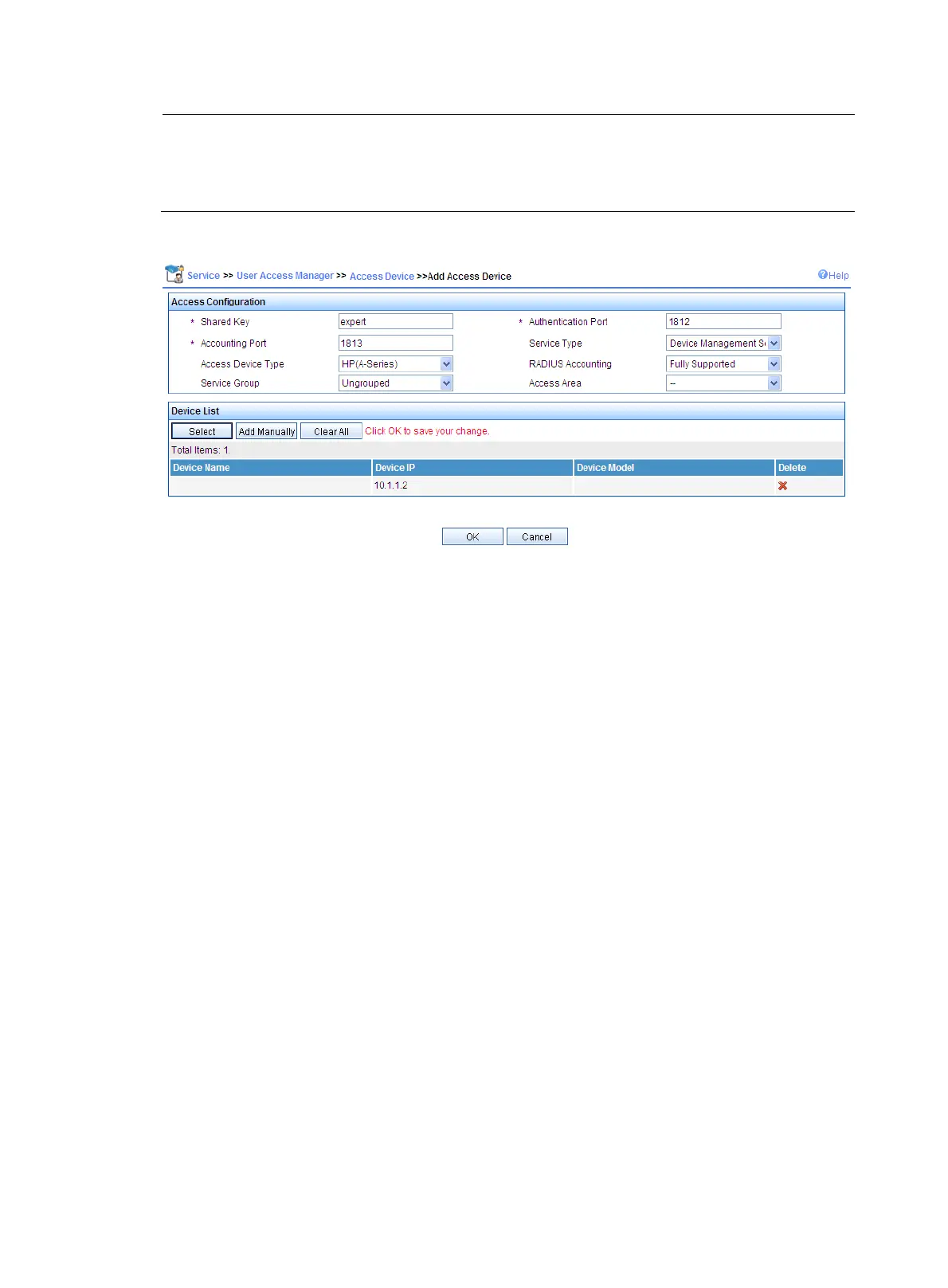

Figure 14 Adding the switch to IMC as an access device
2. Add a user for device management:
a. Click the User tab, and select Device Management User from the navigation tree.
b. Click Add.
c. Configure the following parameters:
Enter hello@bbb as the username and set the password.
Select SSH as the service type.
Set the EXEC privilege level to 3. This value identifies the privilege level of the SSH user after
login and defaults to 0.
Specify the IP address range of the hosts to be managed as 10.1.1.0 through 10.1.1.255.
d. Click OK.
