FIP snooping configuration example
Network requirements
As shown in Figure 40, enable FIP snooping on the Transit switch to achieve reliable communication
between the ENode and FCF switch.

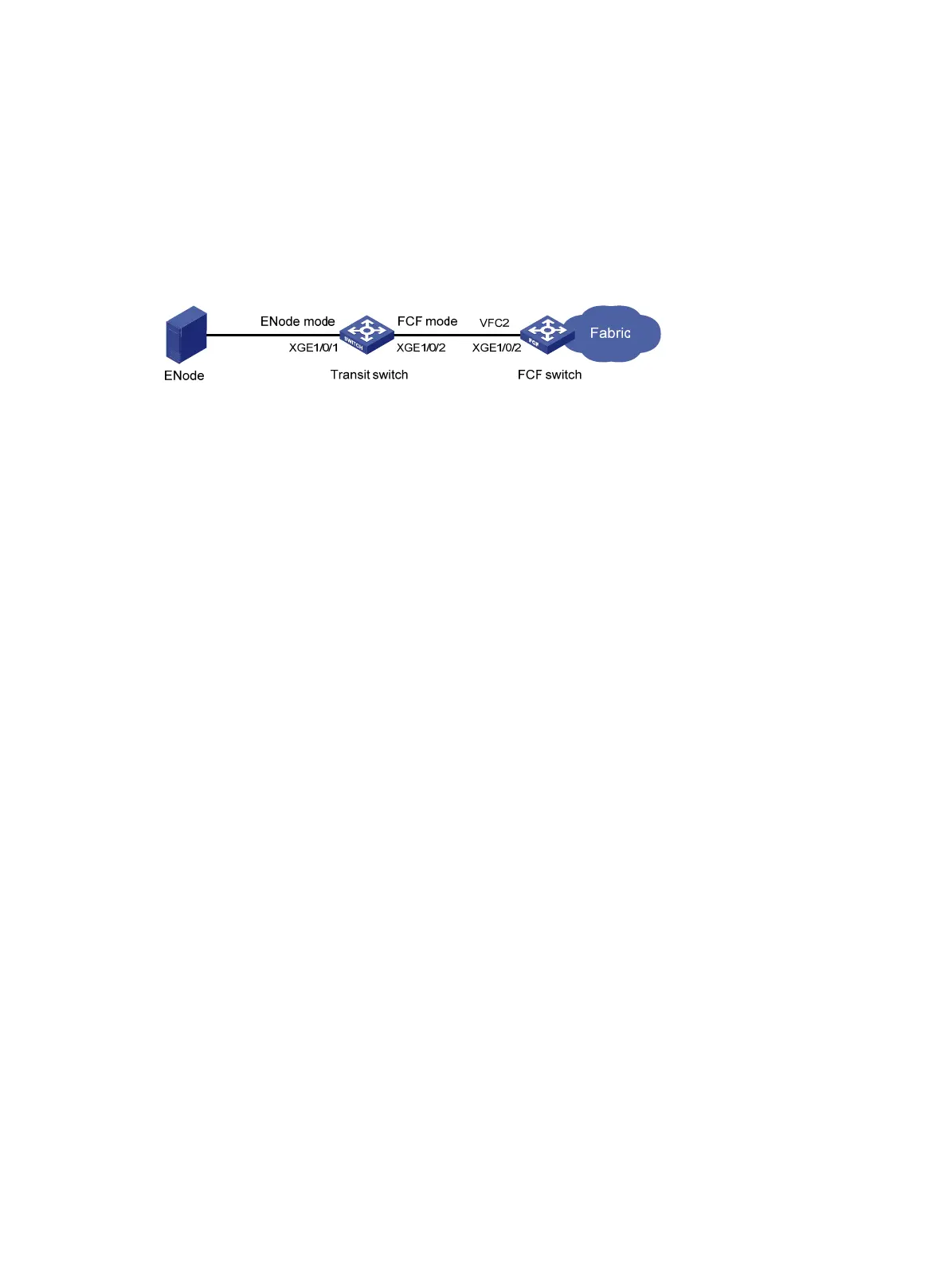

Figure 40 Network diagram
Configuration procedure
1. Configure the Transit switch:
# Configure the switch to operate in advanced mode. (Skip this step if the switch is operating in
advanced mode.)
<Transit> system-view
[Transit] system-working-mode advance
Do you want to change the system working mode? [Y/N]:y
The system working mode is changed, please save the configuration and reboot the
system to make it effective.
# Save the configuration.
[Transit] save
The current configuration will be written to the device. Are you sure? [Y/N]:y
Please input the file name(*.cfg)[flash:/startup.cfg]
(To leave the existing filename unchanged, press the enter key):
Validating file. Please wait...
Saved the current configuration to mainboard device successfully.
[Transit] quit
# Reboot the switch.
<Transit> reboot
Start to check configuration with next startup configuration file, please
wait.........DONE!
This command will reboot the device. Continue? [Y/N]:y
Now rebooting, please wait...
# Configure the switch to operate in Transit mode.
<Transit> system-view
[Transit] fcoe-mode transit
# Enable FIP snooping for VLAN 10.
[Transit] vlan 10
[Transit-vlan10] fip-snooping enable
# Configure an FC-MAP value of 0x0EFC01 for VLAN 10.
[Transit-vlan10] fip-snooping fc-map 0efc01
