No interfaces available.

The output shows that:

{ The domain configuration was complete.

{ The runtime domain ID of Switch A is 1.

2. Verify the configuration on Switch B.

[SwitchB-vsan1] display fc domain vsan 1

Domain Information of VSAN 1:

Running time information:

State: Stable

Switch WWN: 48:33:43:2d:46:43:1B:1B

Fabric name: 11:11:11:11:11:11:11:11

Priority: 128

Domain ID: 2

Configuration information:

Domain configure: Disabled

Domain auto-reconfigure: Disabled

Fabric name: 11:11:11:11:11:11:11:11

Priority: 128

Domain ID: 2 (static)

Principal switch running time information:

Priority: 128

No interfaces available.

The output shows that:

{ The domain configuration was complete.

{ The runtime domain ID of Switch B is 2.

Dynamic fabric building configuration example

Network requirements

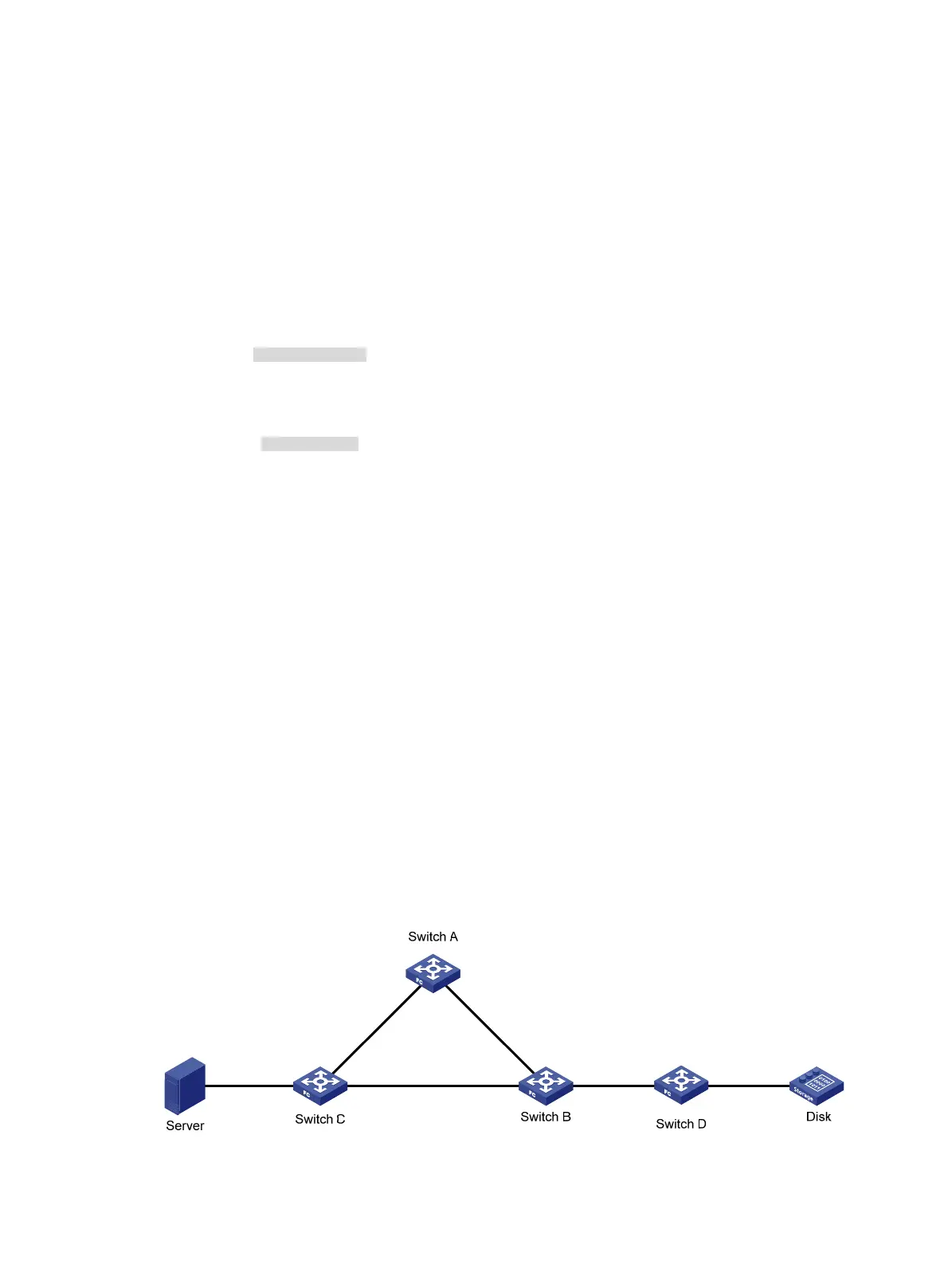

As shown in Figure 26, use the dynamic method to build a fabric.

Figure 26 Network diagram
