153
# Configure the mode of interface FC 1/0/1 as E.
[SwitchB-Fc1/0/1] fc mode e
# Configure interface FC 1/0/1 to autonegotiate the speed.
[SwitchB-Fc1/0/1] speed auto
# Configure the trunk mode of interface FC 1/0/1 as On, and assign interface FC 1/0/1 to
VSAN 1 as a trunk port.
[SwitchB-Fc1/0/1] port trunk mode on
[SwitchB-Fc1/0/1] port trunk vsan 1
[SwitchB-Fc1/0/1] quit
# Enable FCoE for VLAN 10, and map VLAN 10 to VSAN 1.
[SwitchB] vlan 10
[SwitchB-vlan10] fcoe enable vsan 1
[SwitchB-vlan10] quit
# Configure a static route in VSAN 1.
[SwitchB] vsan 1
[SwitchB-vsan1] fc route-static 010000 8 fc 1/0/1
Verifying the configuration
# FCping a switch from another switch, for example, FCping Switch B from Switch A.
[SwitchA-vsan1] fcping fcid fffc02 vsan 1
FCPING fcid 0xfffc02: 128 data bytes, press CTRL_C to break.
Reply from 0xfffc02: bytes = 128 time = 23 ms
Reply from 0xfffc02: bytes = 128 time = 9 ms
Reply from 0xfffc02: bytes = 128 time = 19 ms
Reply from 0xfffc02: bytes = 128 time = 14 ms
Reply from 0xfffc02: bytes = 128 time = 25 ms
--- 0xfffc02 fcping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 9/18/25 ms
FC ping configuration examples by using VFC interfaces
Network requirements
Identify whether Switch A and Switch B can reach each other.

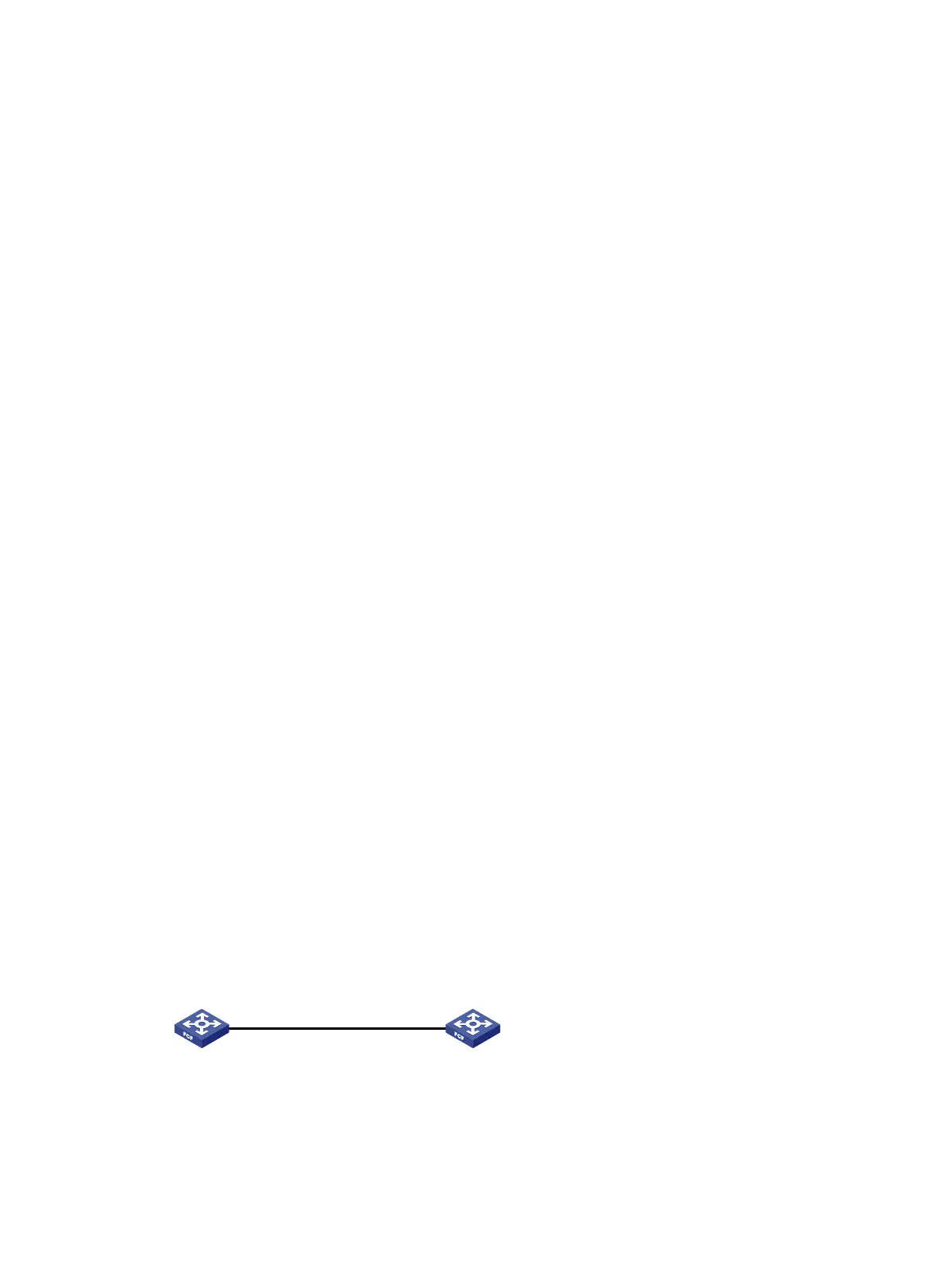

Figure 43 Network diagram
Configuration procedure
1. Configure Switch A:
Switch A Switch B
Domain ID: 1 Domain ID: 2
VFC1
XGE1/0/1
VFC1
XGE1/0/1
