Figure 19 Access VSAN

During the transmission procedure, frames are not changed. In order to support multiple VSANs, a switch

must use different physical interfaces. The access VSAN technology does not reduce the number of

physical connections. Though different VSANs are isolated from each other, they are physically rather

than logically isolated. This mode cannot give full play to the advantages of the VSAN technology.

Trunk VSAN in an FC network

The trunk VSAN technology implements logical isolation among VSANs. The trunk VSAN adds a Virtual

Fabric Tagging Header (VFT_Header, also known as VSAN tag) to the FC frames. The VFT_Header

contains a VF_ID (also known as "VSAN ID") field to indicate the VSAN of the FC frames. In this way, FC

frames with different VF_IDs are contained in their respective VSANs, and different VSANs cannot

communicate with each other. The trunk VSAN implements physical connectivity and logical isolation in

the network.

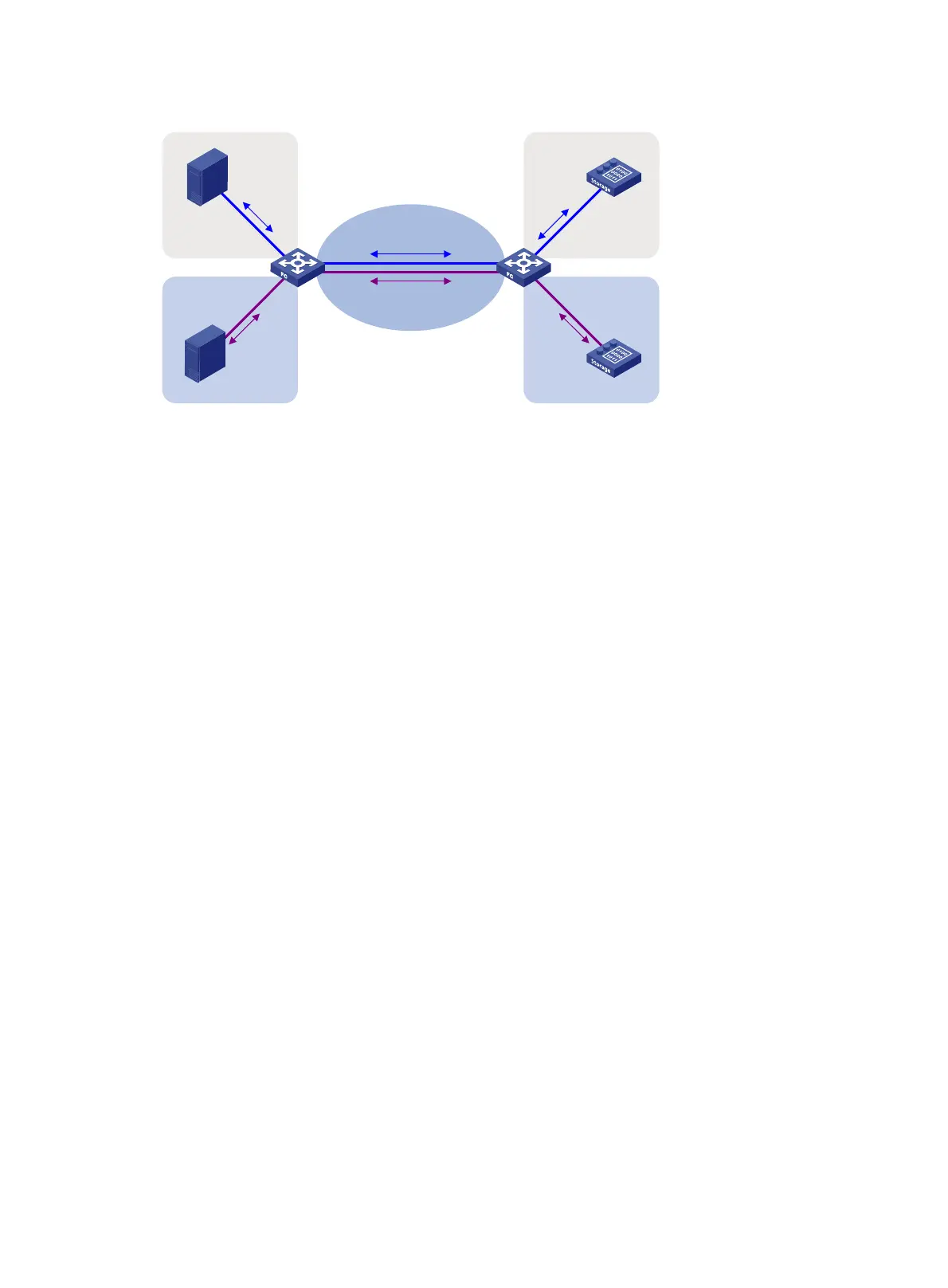

Figure 20 sh

ows a typical trunk VSAN.

• The F_Ports in blue on switches are configured as access ports and assigned to VSAN 1.

• The F_Ports in purple are configured as access ports and assigned to VSAN 2.

• The E_Ports are configured with trunk VSANs 1 and 2.

When servers read the disks, the N_Ports of different servers send FC frames without VFT_Headers to the

F_Ports on FC switch Switch A. Switch A searches for the outgoing interfaces in the FIB table of the VSAN

that each F_Port belongs to. These F_Ports use the same E_Port as the outgoing interface. When the

frames are forwarded out of the E_Port, they are tagged with the VFT_Header of VSAN 1 and VSAN 2.

Then, they travel across multiple VSAN-capable switches to the E_Port of FC switch Switch B.

According to the VFT_Headers, Switch B searches for the outgoing interfaces in the FIB tables of the

VSANs, and forwards them to the F_Ports. Then, the F_Ports remove the VFT_Headers and send the

frames to the N_Ports of different disk devices. The frames from the disk devices to the server are

processed in the same way and finally reach the servers.

E_Port E_Port

F_Port

N_Port

VSAN 1

E_Port

VSAN 1

VSAN 2

FC Fabric

Server A

Server B

Disk A

Disk B

FC switch BFC switch A
