Removal and replacement procedures 34
4.

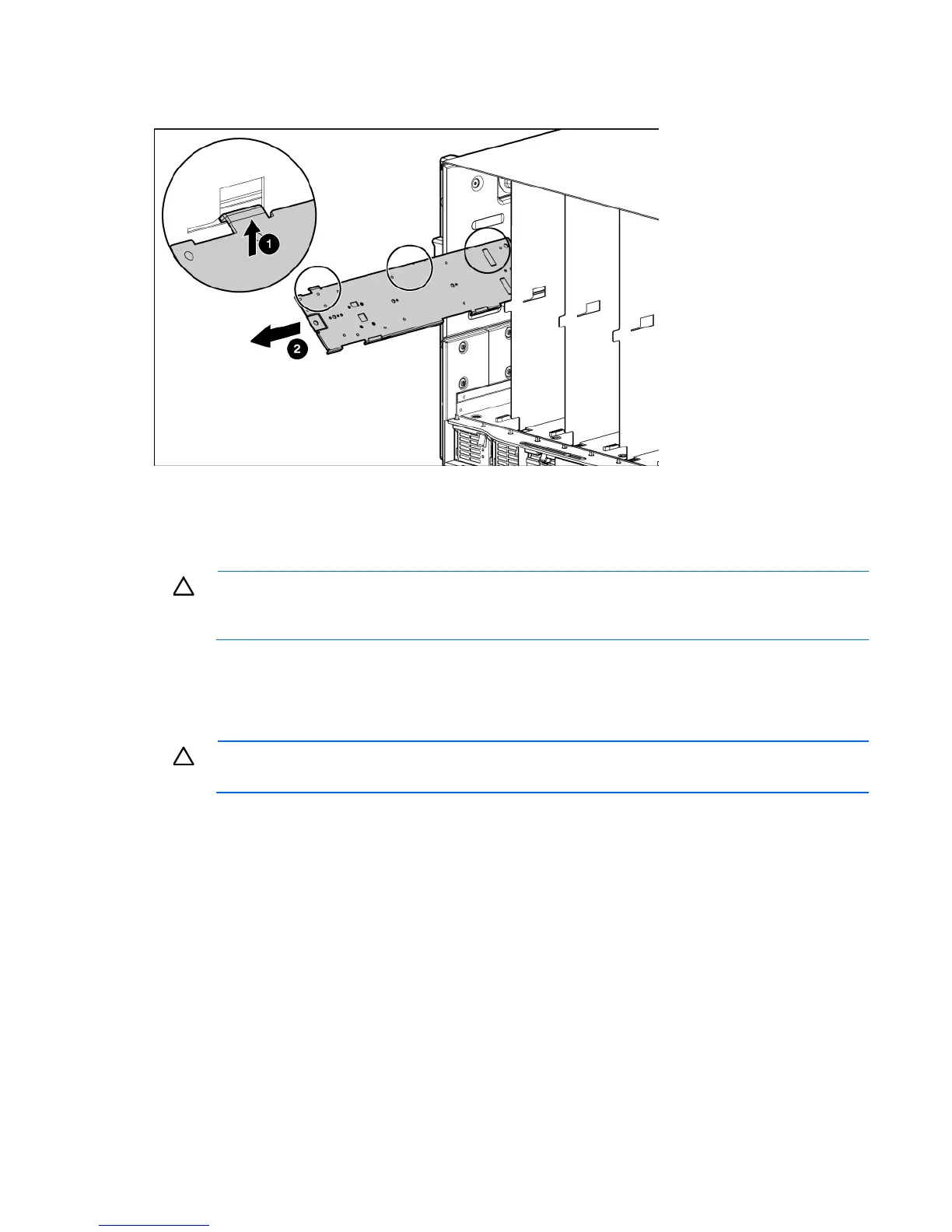

Lift the left side of the device bay shelf to disengage the three tabs from the divider wall, and then
remove it from the enclosure.
To replace the component, reverse the removal procedure.
Half-height or full-height blade
CAUTION: This procedure provides instructions for replacement of a failed part only. To change
the configuration of components, see the appropriate HP BladeSystem c-Class enclosure setup
and installation guide.
The c7000 enclosure is divided into four quadrants by the vertical support metal work. Within each
quadrant, a removable divider supports half-height blades. To install a full-height blade in any quadrant, this
divider must be removed. Therefore, a quadrant can only contain either full-height blades or half-height
blades.
CAUTION: Failure to install the divider in a quadrant when installing half-height blades can
result in damage to the connectors on the server blades.

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
