HP BladeSystem c7000 - Interconnect Module Bay Numbering

Component identification 69
Item Description
1
Fan bay 1
2
Fan bay 2
3
Fan bay 3
4
Fan bay 4
5
Fan bay 5
6
Interconnect bay 2
7
Interconnect bay 4
8
Interconnect bay 6
9
Interconnect bay 8
10
Onboard Administrator bay 2
11
Power supply exhaust vent (do not block)
12
Fan bay 10
13
Fan bay 9
14
Fan bay 8
15
Fan bay 7
16
Fan bay 6
17
AC power connectors
18
Onboard Administrator bay 1
19
Interconnect bay 7
20
Interconnect bay 5
21
Interconnect bay 3
22
Interconnect bay 1

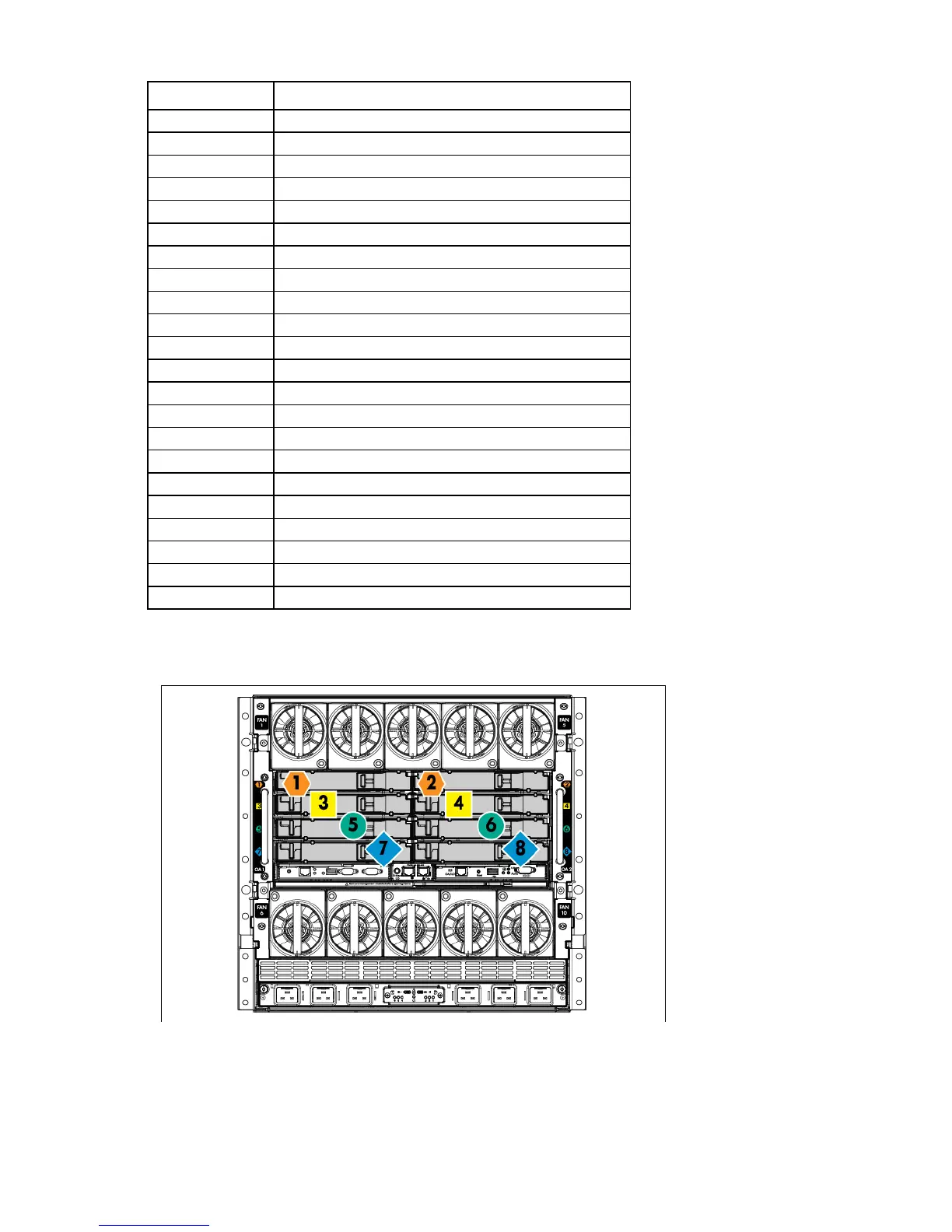

Interconnect module bay numbering
