HP BladeSystem c7000 Maintenance And Service Guide

Component identification 68

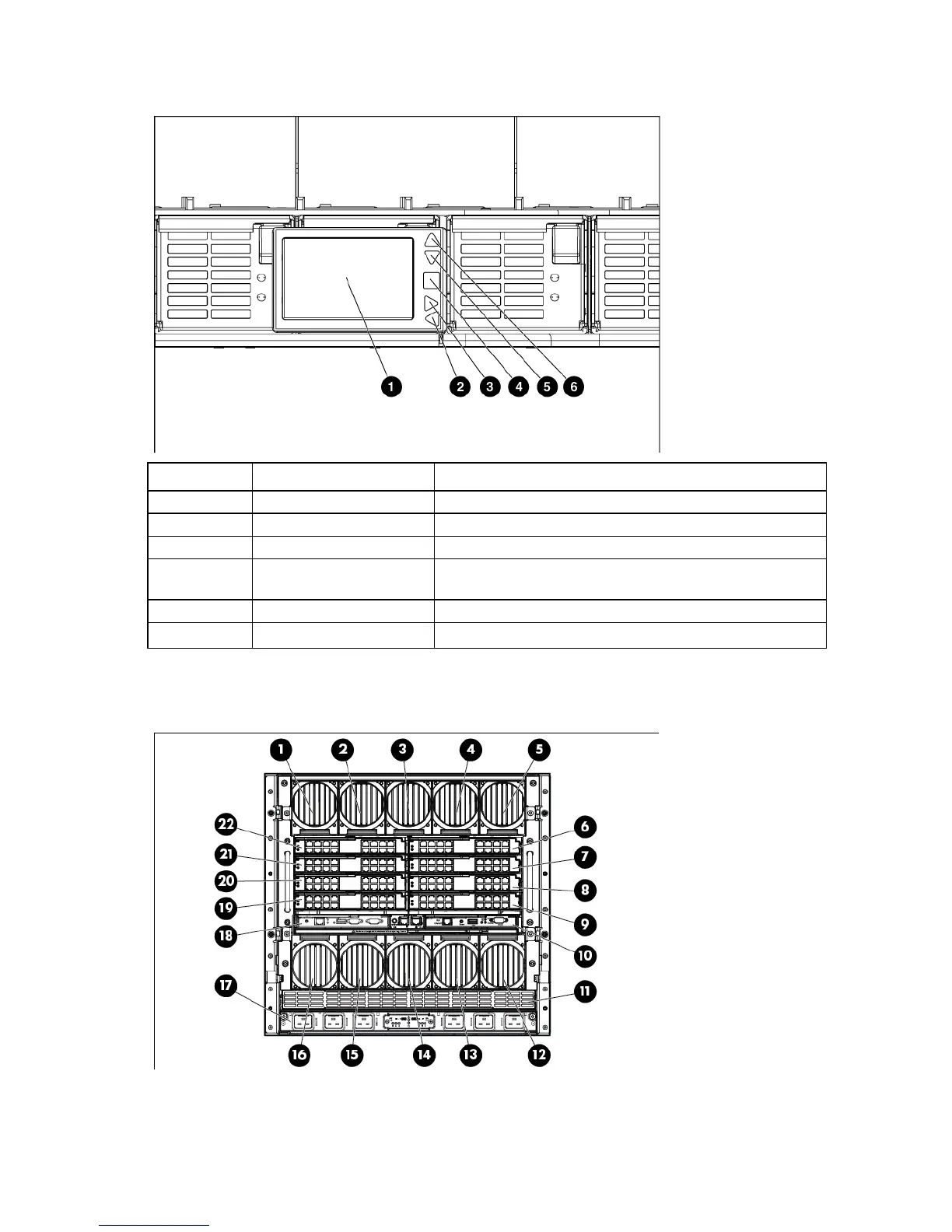

HP BladeSystem Insight Display components
Item Description Function
1
Insight Display screen Displays Main Menu error messages and instructions
2
Left arrow button Moves the menu or navigation bar selection left one position
3
Right arrow button Moves the menu or navigation bar selection right one position
4
OK button Accepts the highlighted selection and navigates to the selected
menu
5
Down arrow button Moves the menu selection down one position
6
Up arrow button Moves the menu selection up one position
Enclosure rear components

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
