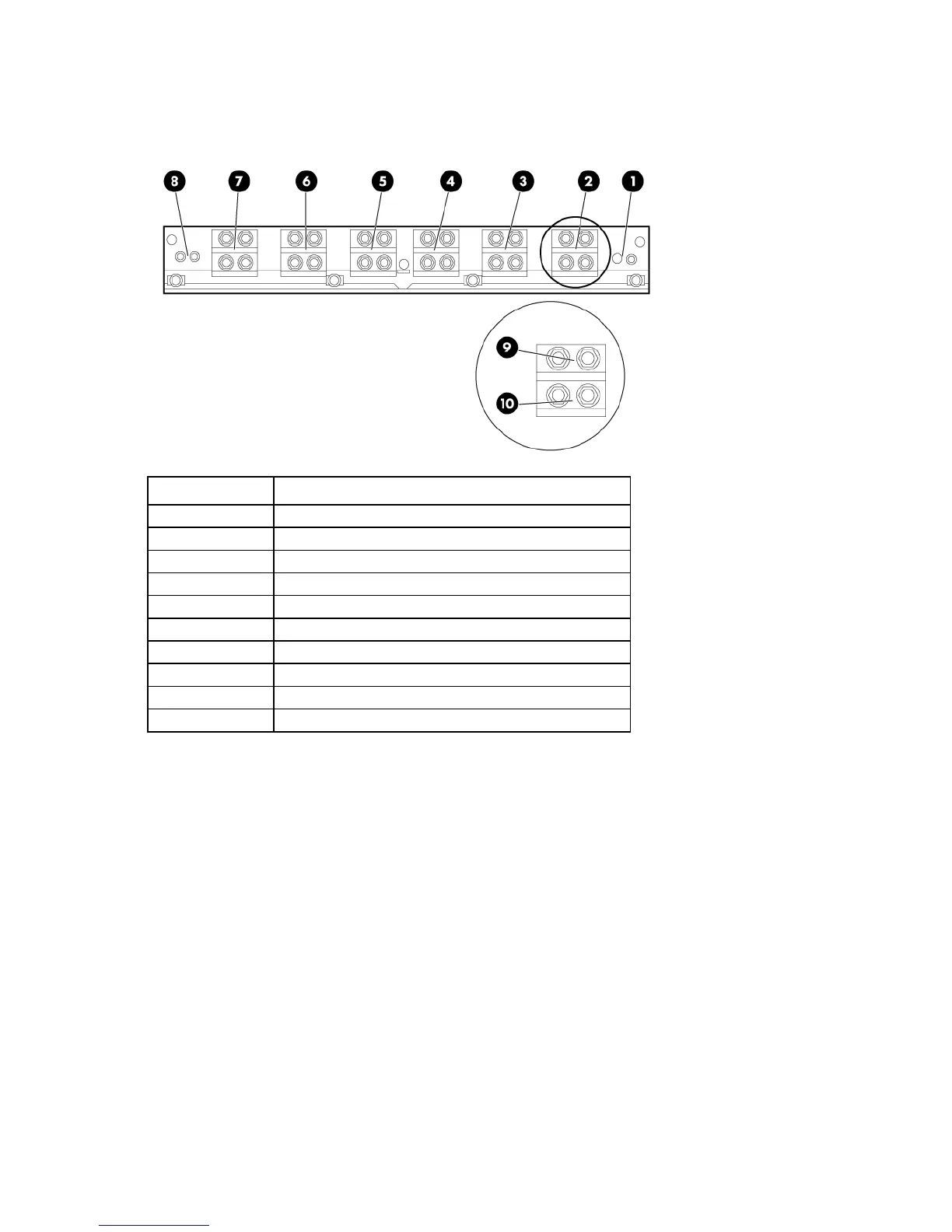

HP BladeSystem c7000 Enclosure DC configuration
Item Description
1
Chassis grounding lugs
2
DC connectors for power supply bay 1
3
DC connectors for power supply bay 2
4
DC connectors for power supply bay 3
5
DC connectors for power supply bay 4
6
DC connectors for power supply bay 5
7
DC connectors for power supply bay 6
8
Chassis grounding lugs
9
-48 VDC power connections
10
DC return power connections
