HP BladeSystem c7000 Maintenance And Service Guide

Removal and replacement procedures 51
10.

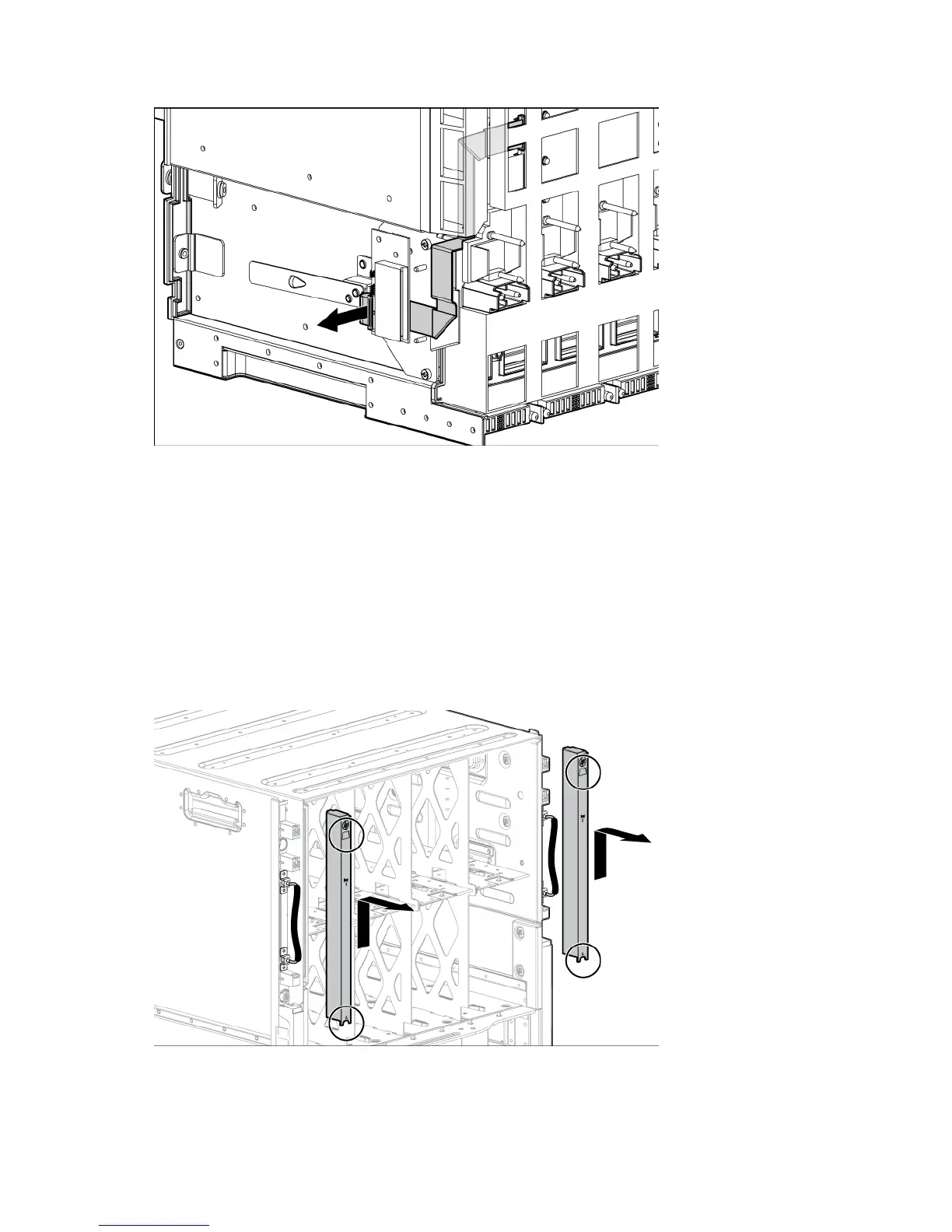

Disconnect the pass-thru board from the cable.
To replace the component, reverse the removal procedure.
Location discovery services board (Platinum models
only)
To remove the component:
1. Power down the server blades ("Power down the server blades or workstation blades" on page 28).
2. Power down the enclosure (on page 29).
3. Remove the handle cover.

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
